R692 W4K
R692
- Checking stock...

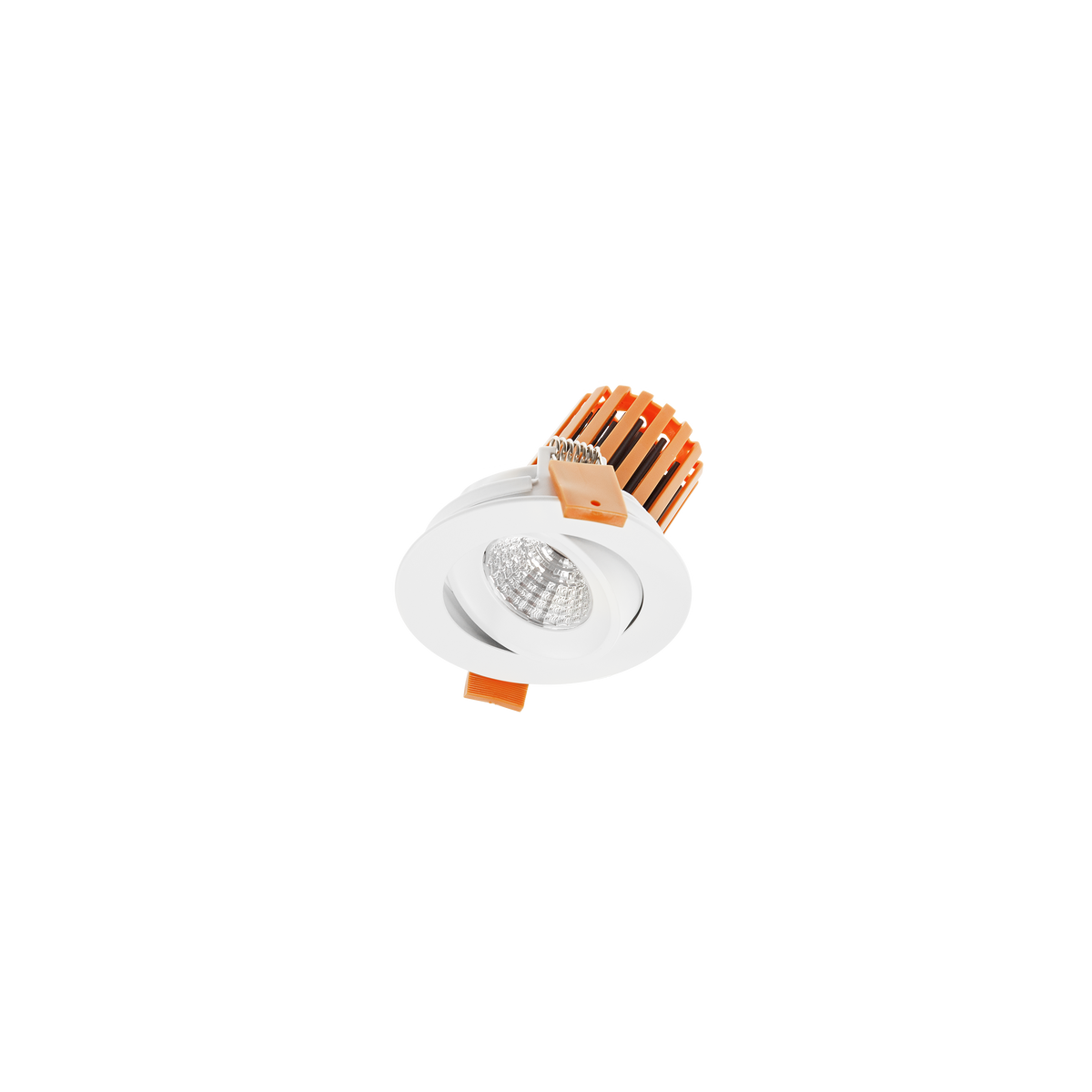

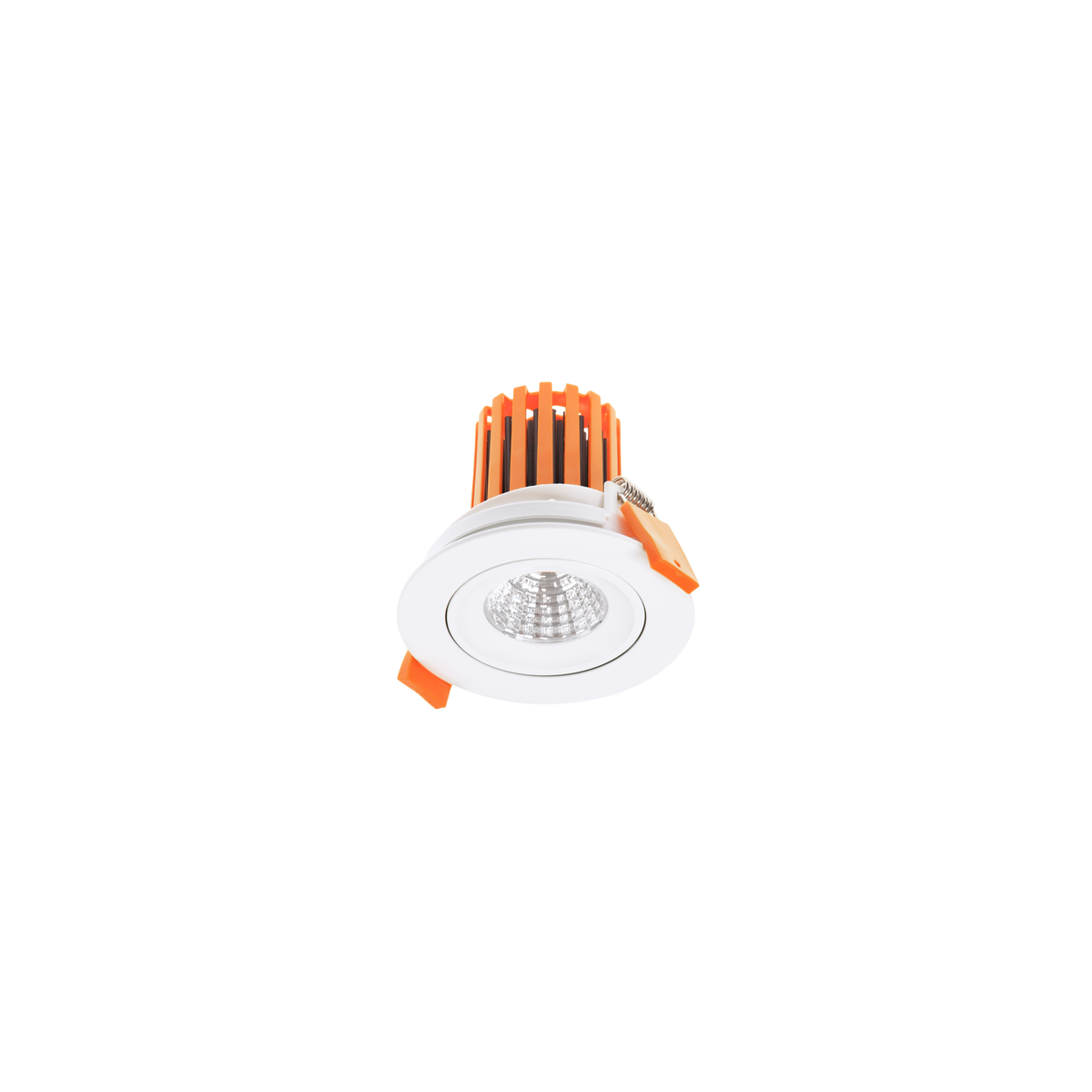

R692 W4K Smart Tilt Classic Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
870lm
12W
30°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R692
Smart Tilt Classic Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
82-84mm
Lumens
870lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
950lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit White 3000K - 2000K Sunset Dim
Temp.
3000K to 2000K (Dim to Warm)
Tilt Angle
30°
Cut out
82-84mm
Lumens
550lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit Silver 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
830lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit Brushed Chrome 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
830lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
950lm
Watts
12W
R692
Smart Tilt Classic Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
82-84mm
Lumens
870lm
Watts
12W
Specifications
Cut Out
82-84mm
Finish
White
Colour Temp
4000K Natural White
Watts
12W
Lumens
870lm
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
30°
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
96mm
Height
79mm
Binning
SDCM 5
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Patented PC Heat Shield
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
