R688 BRWL
R688
- Checking stock...

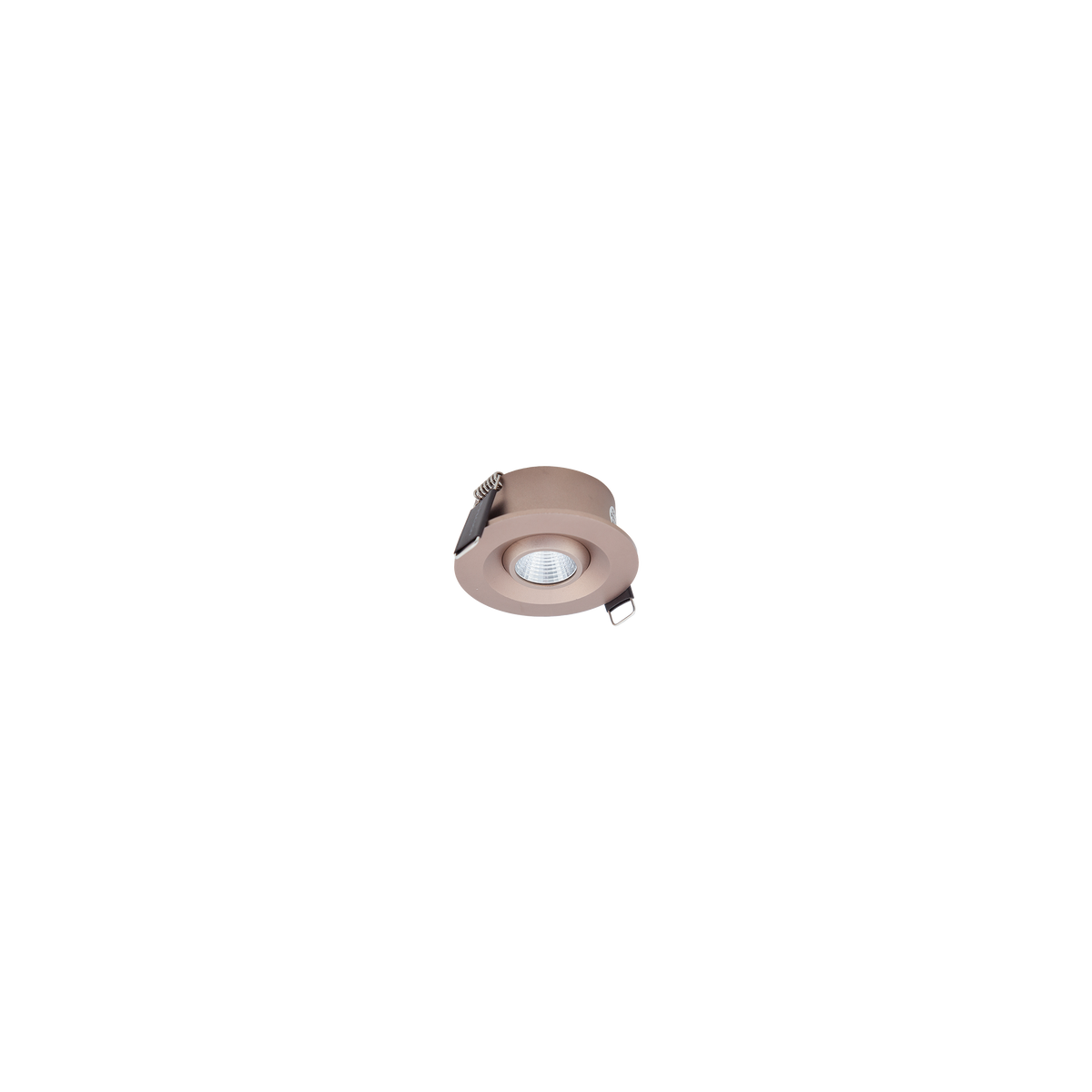

R688 BRWL Small Eyeball Tilt Bronze 3000K
Lumens
Watts
320lm
3W
Lumens
Watts
320lm
3W
Add Driver
driver not included
View Options
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC350-DM-10W-IP
IP65 350mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC350-DX-6W
350mA 6W Dimmable Constant Current DX Series Driver
Watts
3.5W-6W
DCC350-DX-9W
350mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
DCC350-DX-12W
350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC350-DX-28W
350mA 28W Dimmable Constant Current DX Series Driver
Watts
14W-28W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W
DCC350-M-12W-IP
IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC350-6W
350mA 6W Constant Current Non-dimmable Driver
Watts
3W-6W
DCC350-12W
350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
DCC350-20W
350mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
DCC350-40W
350mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Colour Temp
3000K Warm White
Watts
3W
Lumens
320lm
Beam Angle
42°
Input
350mA
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP20
Cut Out
52mm
Diameter
60mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
Downloads
