R611
- Checking stock...
Configure your R611 2 options
- White (selected)
- Black
R611 W3K Design Standard Medium Downlight Kit - Wide Beam White 3000K
Lumens
Watts
950lm
12W
DCC260-DX-12W-GL 260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Watts
6W-12W
Select Downlights

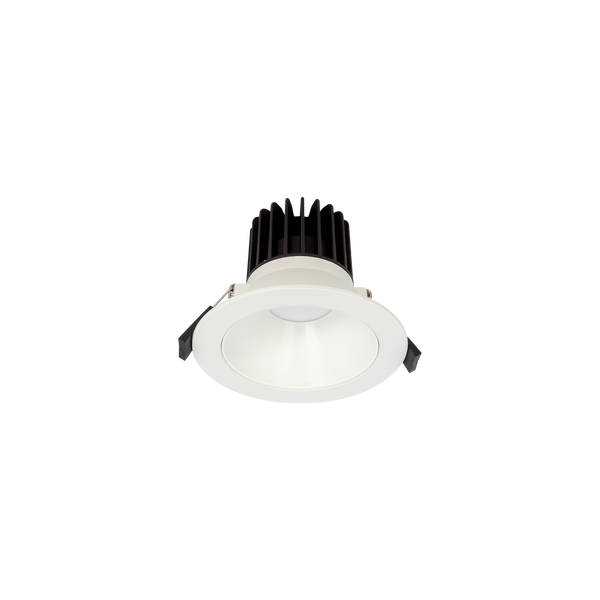

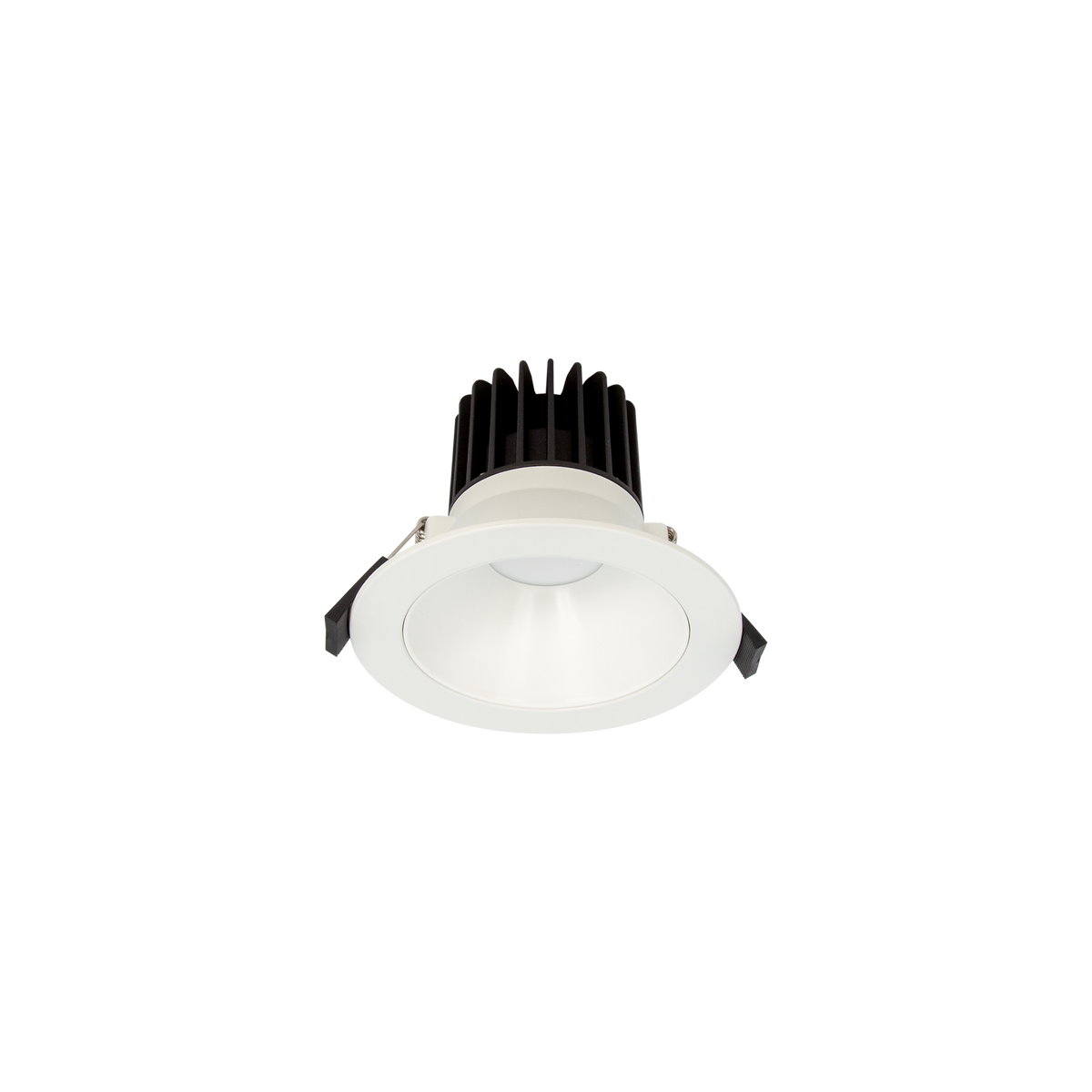

Design Standard Medium Downlight Kit - Wide Beam White 3000K
Temp.
3000K Warm White
Cut out
100-110mm
Lumens
950lm
Watts
12W

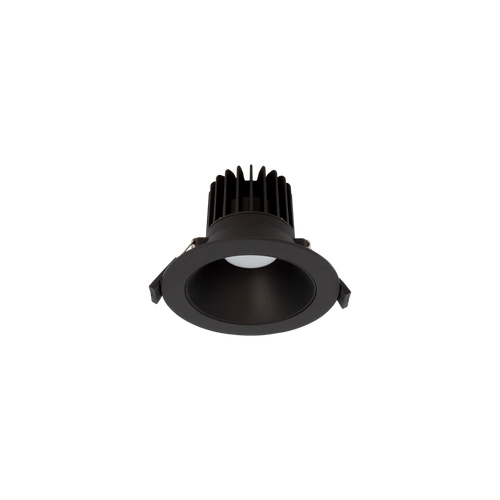

Design Standard Medium Downlight Kit - Wide Beam Black 3000K
Temp.
3000K Warm White
Cut out
100-110mm
Lumens
645lm
Watts
12W
Specifications
R611 W3K
Cut Out
100-110mm
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
950lm
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Diameter
126mm
Height
95mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC260-DX-12W-GL
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
