R554 WS3K
R554
- Custom Build - Stock Available

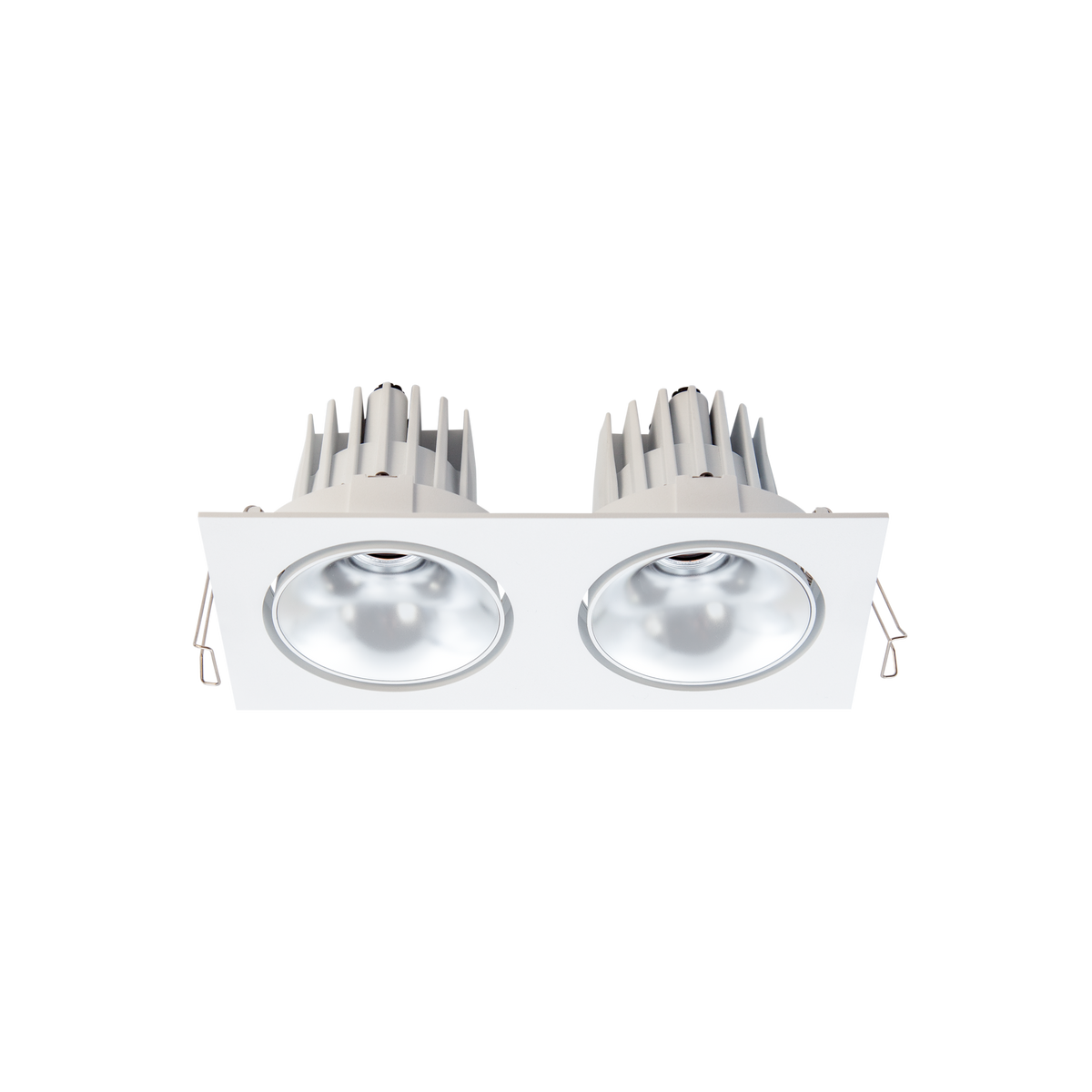

R554 WS3K Cevon Tilt/Rotate Med Double Downlight Kit White, Silver 3000K
Lumens
Watts
Tilt Angle
2000lm
2x 14W
32°
View Options
DCC350-DX-20W
Watts
10W-20W
Watts
10W-20W
Select Downlights
R554
Cevon Tilt/Rotate Med Double Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit White 3000K
Temp.
3000K
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
R554
Cevon Tilt/Rotate Med Double Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
205 x 100mm
Lumens
2000lm
Rotate Angle
355°
Watts
2x 14W
Specifications
Finish
White, Silver
Colour Temp
3000K Warm White
Watts
2x 14W
Lumens
2000lm
Beam Angle
40°
Dimming / Control
Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Tilt Angle
32°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
205 x 100mm
Height
82mm
Width
105mm
Length
215mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
