R550 WW3K
R550
- Checking stock...

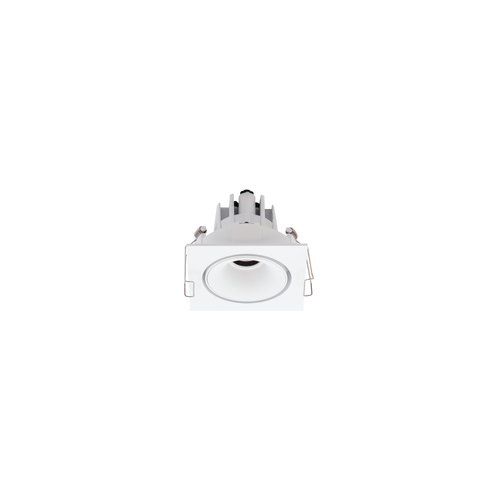

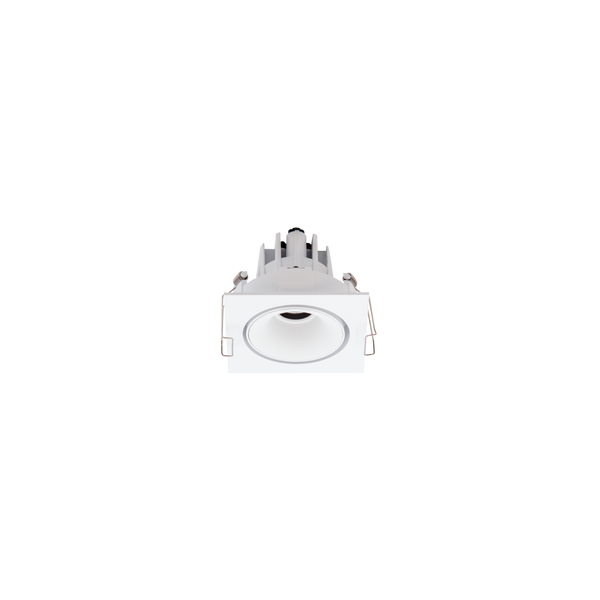

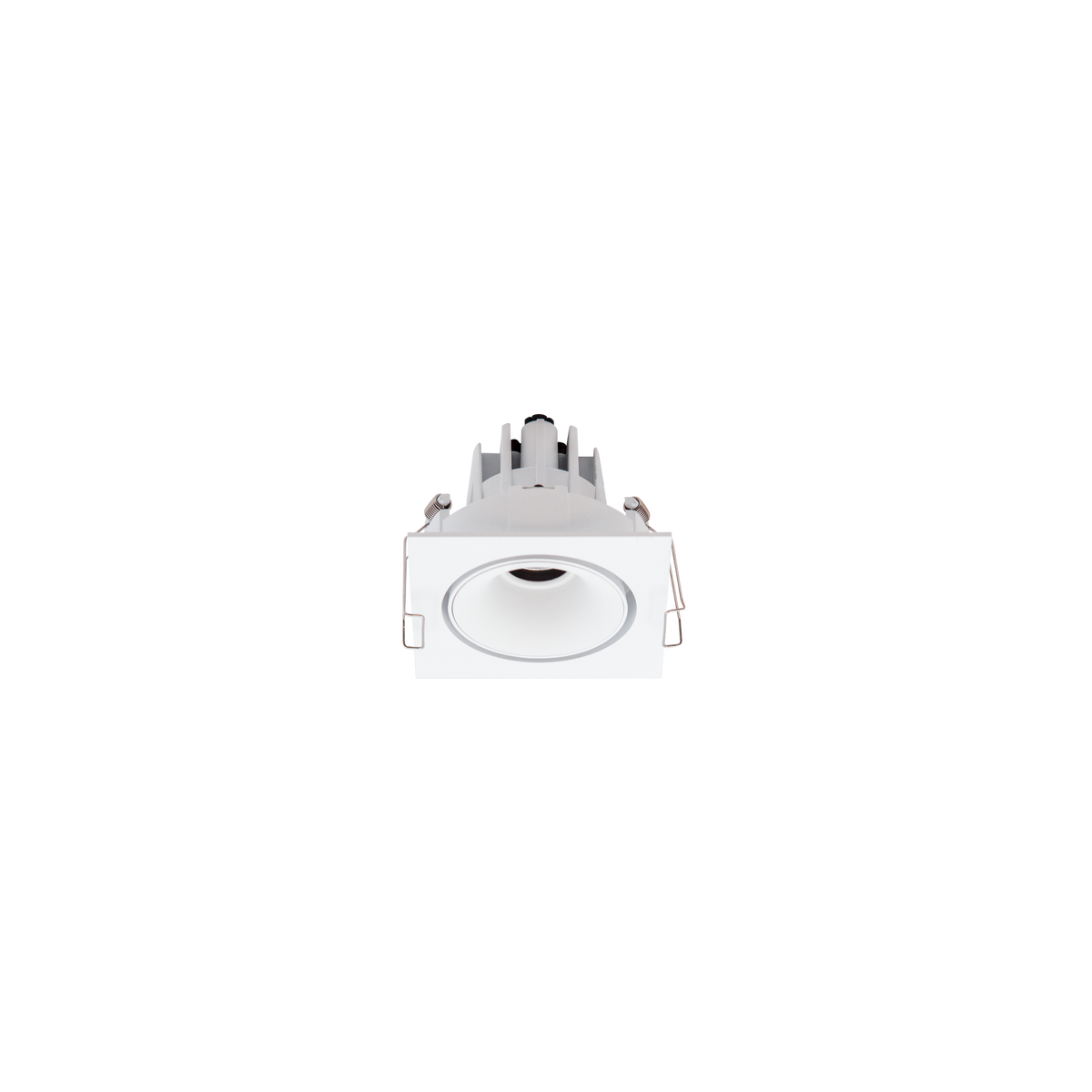

R550 WW3K Cevon Tilt/Rotate Square Sml Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
740lm
11W
25°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R550
Cevon Tilt/Rotate Square Sml Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

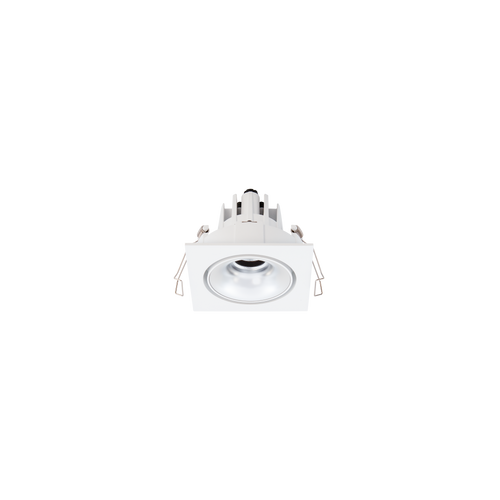

Cevon Tilt/Rotate Square Sml Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

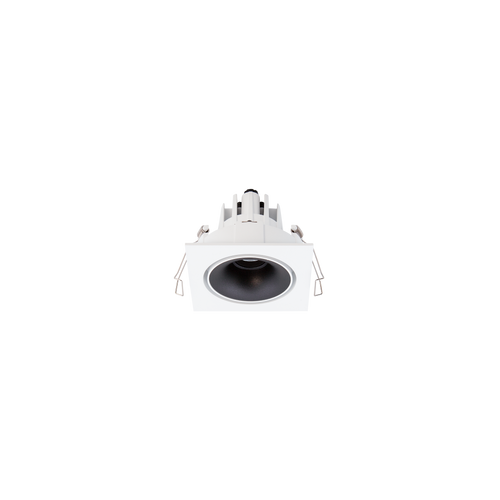

Cevon Tilt/Rotate Square Sml Downlight Kit White, Matt Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

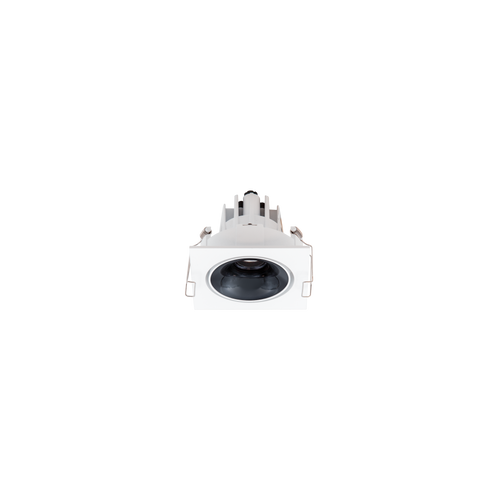

Cevon Tilt/Rotate Square Sml Downlight Kit White, High Gloss Black 3K
Temp.
3000K
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

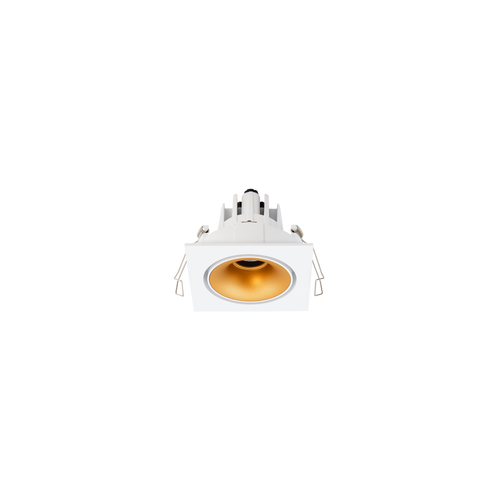

Cevon Tilt/Rotate Square Sml Downlight Kit White, Gold 3K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

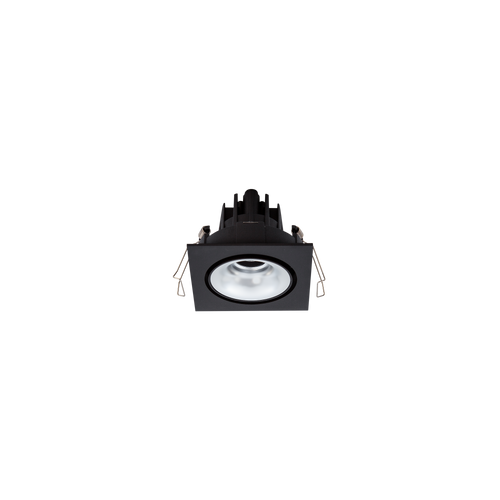

Cevon Tilt/Rotate Square Sml Downlight Kit Black, Silver 3K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

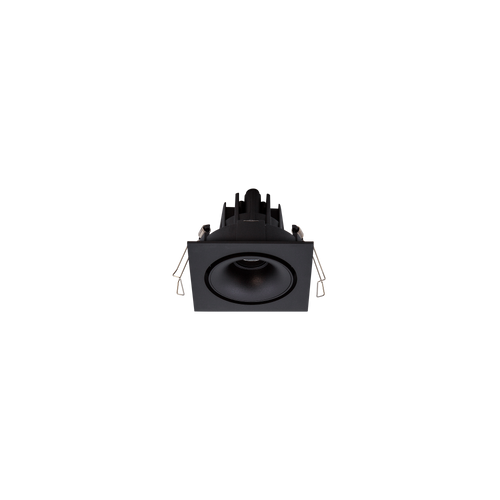

Cevon Tilt/Rotate Square Sml Downlight Kit Black, Matt Black 3K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

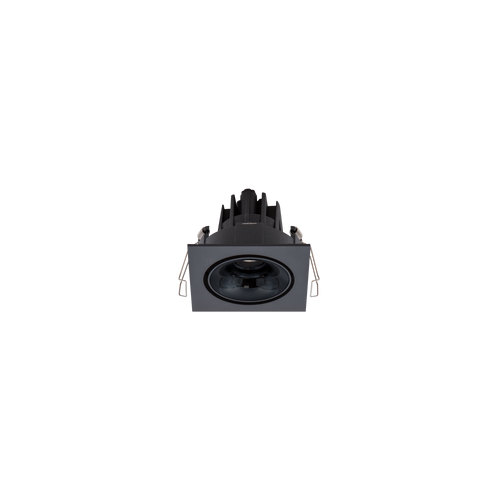

Cevon Tilt/Rotate Square Sml Downlight Kit Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
R550

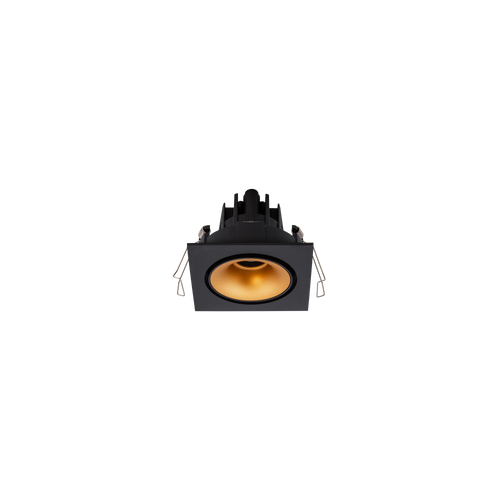

Cevon Tilt/Rotate Square Sml Downlight Kit Black, Gold 3K
Temp.
3000K Warm White
Tilt Angle
25°
Cut out
80mm
Lumens
740lm
Rotate Angle
355°
Watts
11W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
11W
Lumens
740lm
Beam Angle
40°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Tilt Angle
25°
Rotate Angle
355°
Ingress Protection
IP20
RAL Colour
RAL9003
Cut Out
80mm
Height
66mm
Width
86mm
Length
86mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
