R536-BG3K-D-40D
R536
- Custom Build - Request Availability

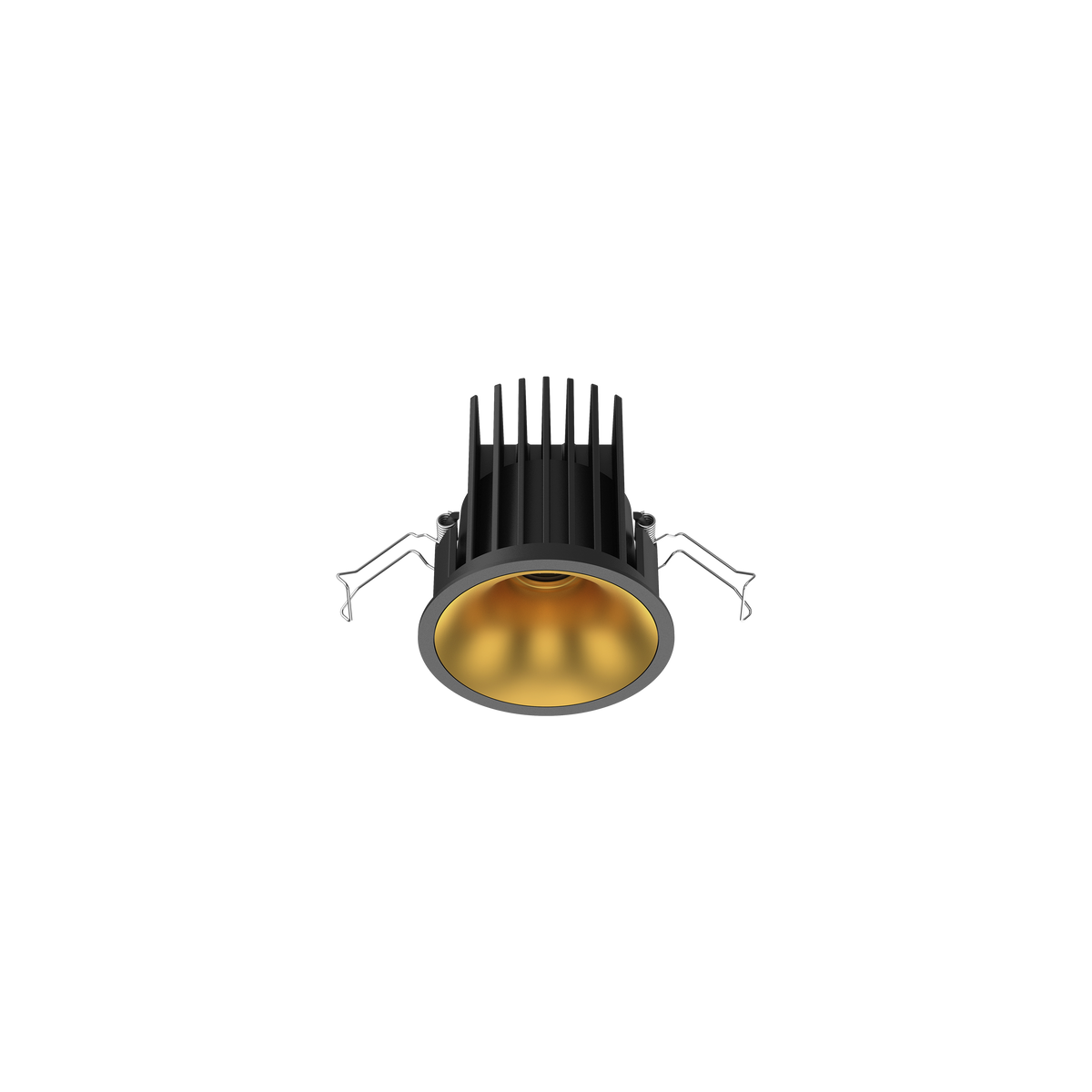

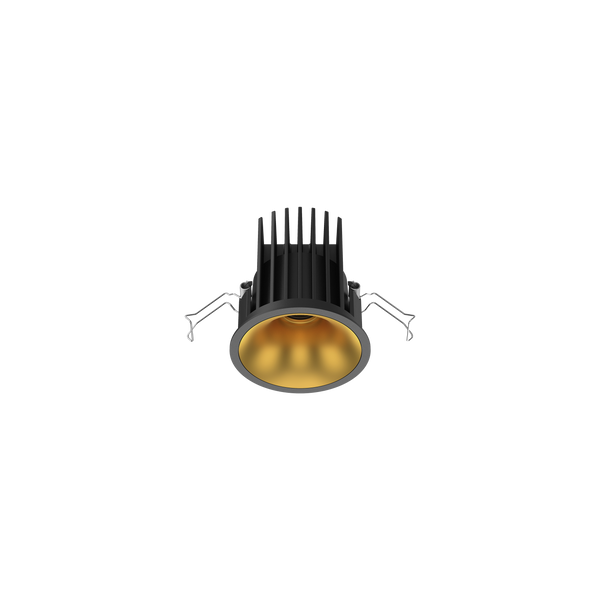

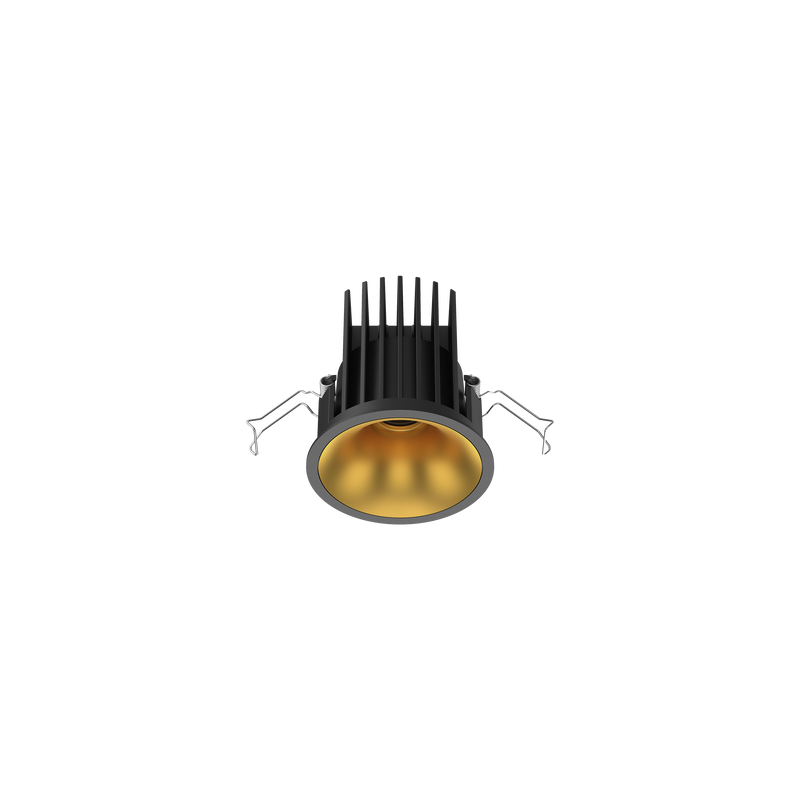

R536-BG3K-D-40D Cevon Medium Darklight Slim Trim Downlight Kit Black, Gold 3000K
Lumens
Watts
1025lm
14W
View Options
DCC350-DX-20W
Watts
10W-20W
Watts
10W-20W
Select Downlights
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1025lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1000lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1035lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1035lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Silver 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1035lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1025lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Gold 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1025lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1040lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight White, High Gloss Black 4K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1040lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Black 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1000lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit White, Black 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1000lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1000lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1000lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1035lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black, Silver 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1035
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Kit Black, Gold 4000K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1025lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Black, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1040lm
Watts
14W
R536
Cevon Medium Darklight Slim Trim Downlight Black, High Gloss Black 4K
Temp.
4000K Natural White
Cut out
76mm
Lumens
1040lm
Watts
14W
Specifications
Cut Out
76mm
Finish
Black, Gold
Colour Temp
3000K Warm White
Watts
14W
Lumens
1025lm
Beam Angle
40°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
83mm
Height
85mm
Binning
SDCM 2
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Glass
Electrical Class
Class II
Driver Output Current
350mA
Driver
Included, Remote
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
