R530 W3K
R530
- Checking stock...

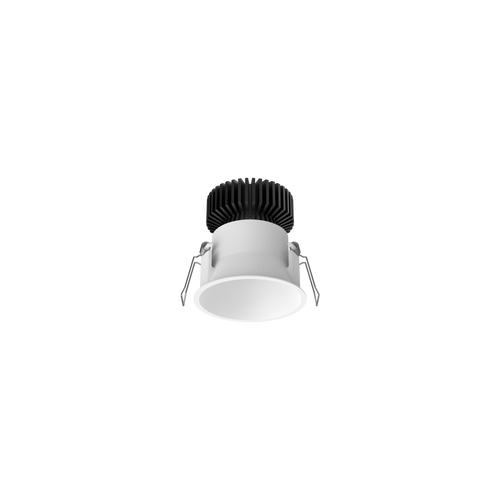

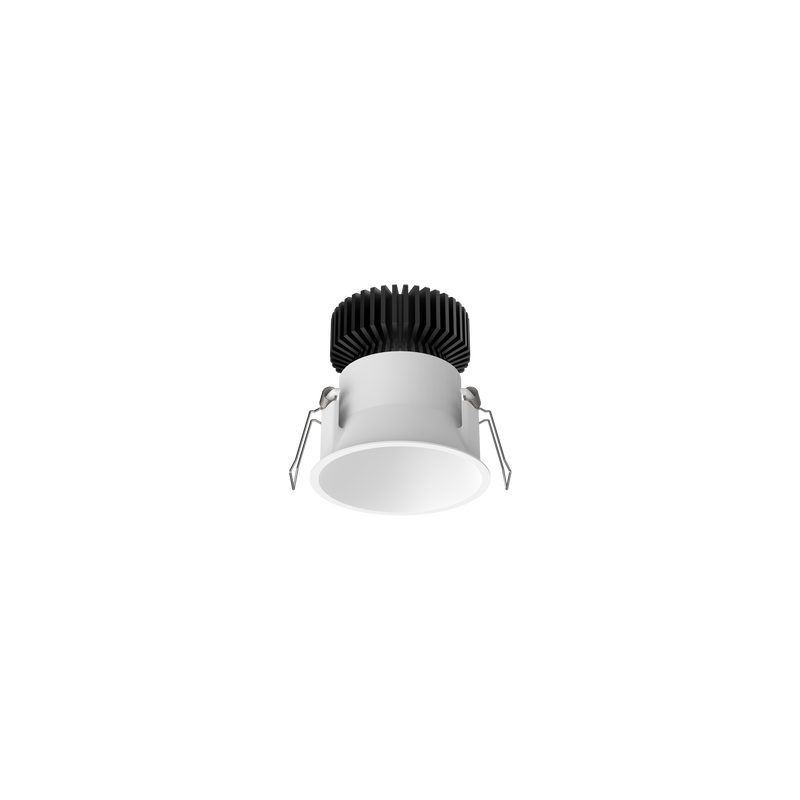

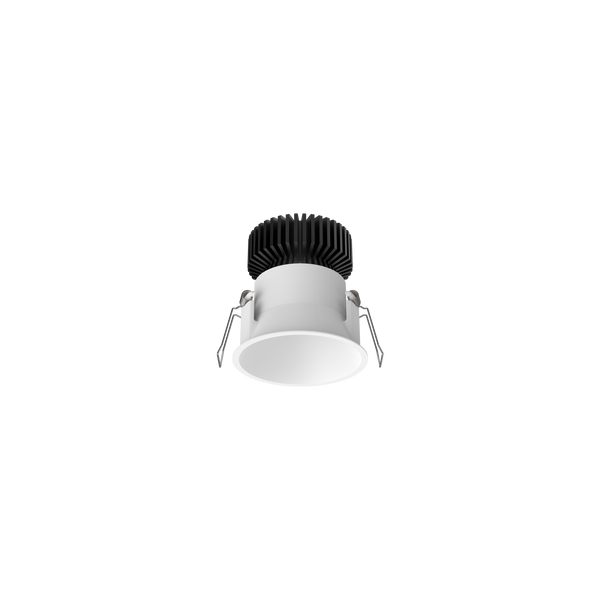

R530 W3K Cevon Elite Slim Trim Downlight Kit White 3000K
Lumens
Watts
922lm
11W
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R530
Cevon Elite Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
75mm
Lumens
922lm
Watts
11W
R530

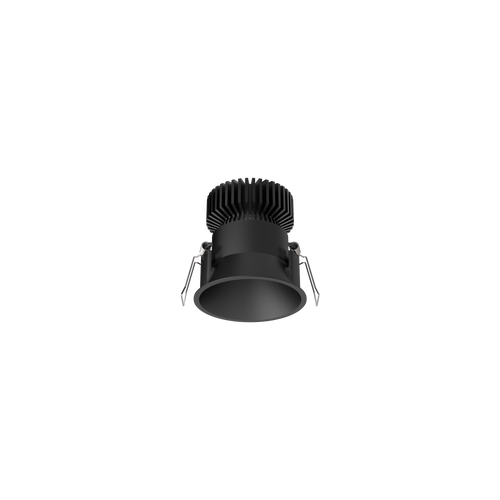

Cevon Elite Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
75mm
Lumens
922lm
Watts
11W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
11W
Lumens
922lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Ingress Protection
IP44
RAL Colour
RAL9003
Cut Out
75mm
Diameter
80mm
Height
89mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
