R521
- Checking stock...
Configure your R521 4 options
- White
- Black (selected)
R521 B3K Cevon Box XL Tilt/Rotate Downlight Kit Black 3000K
Lumens
Watts
Tilt Angle
2811lm
28W
30°
DCC700-D-40W 700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Watts
19.6W-40W
Select Downlights

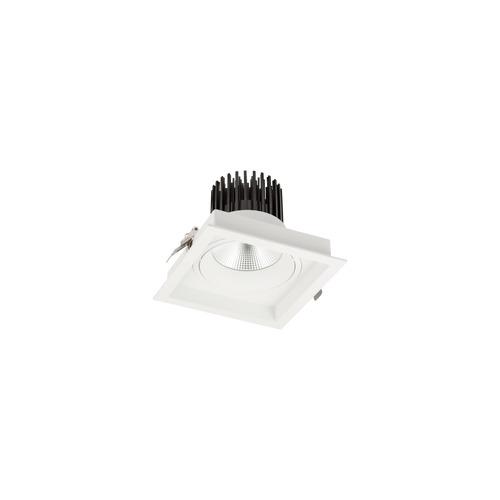

Cevon Box XL Tilt/Rotate Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L155 x W155mm
Lumens
2811lm
Rotate Angle
358°
Watts
28W
Cevon Box XL Tilt/Rotate Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L155 x W155mm
Lumens
2982lm
Rotate Angle
358°
Watts
28W

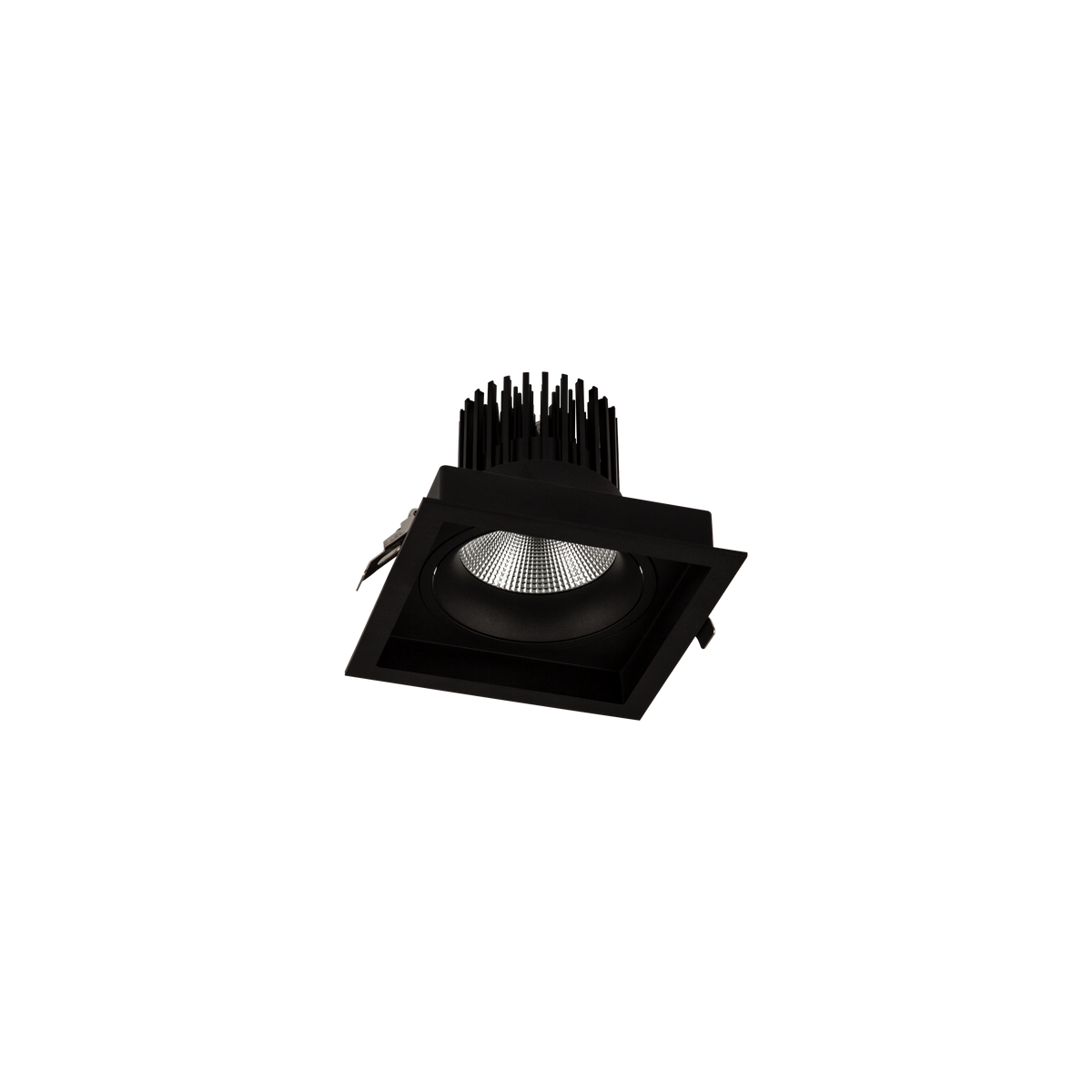

Cevon Box XL Tilt/Rotate Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L155 x W155mm
Lumens
2811lm
Rotate Angle
358°
Watts
28W
Cevon Box XL Tilt/Rotate Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L155 x W155mm
Lumens
2982lm
Rotate Angle
358°
Watts
28W
Specifications
R521 B3K
Cut Out
L155 x W155mm
Finish
Black
Colour Temp
3000K Warm White
Watts
28W
Lumens
2811lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
93
Tilt Angle
30°
Rotate Angle
358°
Lifespan
55,000hrs (L90)
Ingress Protection
IP43
Height
135mm
Width
175mm
Length
175mm
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
700mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC700-D-40W
Watts
19.6W-40W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Installation Note
Must be installed above insulation
