R513 W3K
R513
- Checking stock...

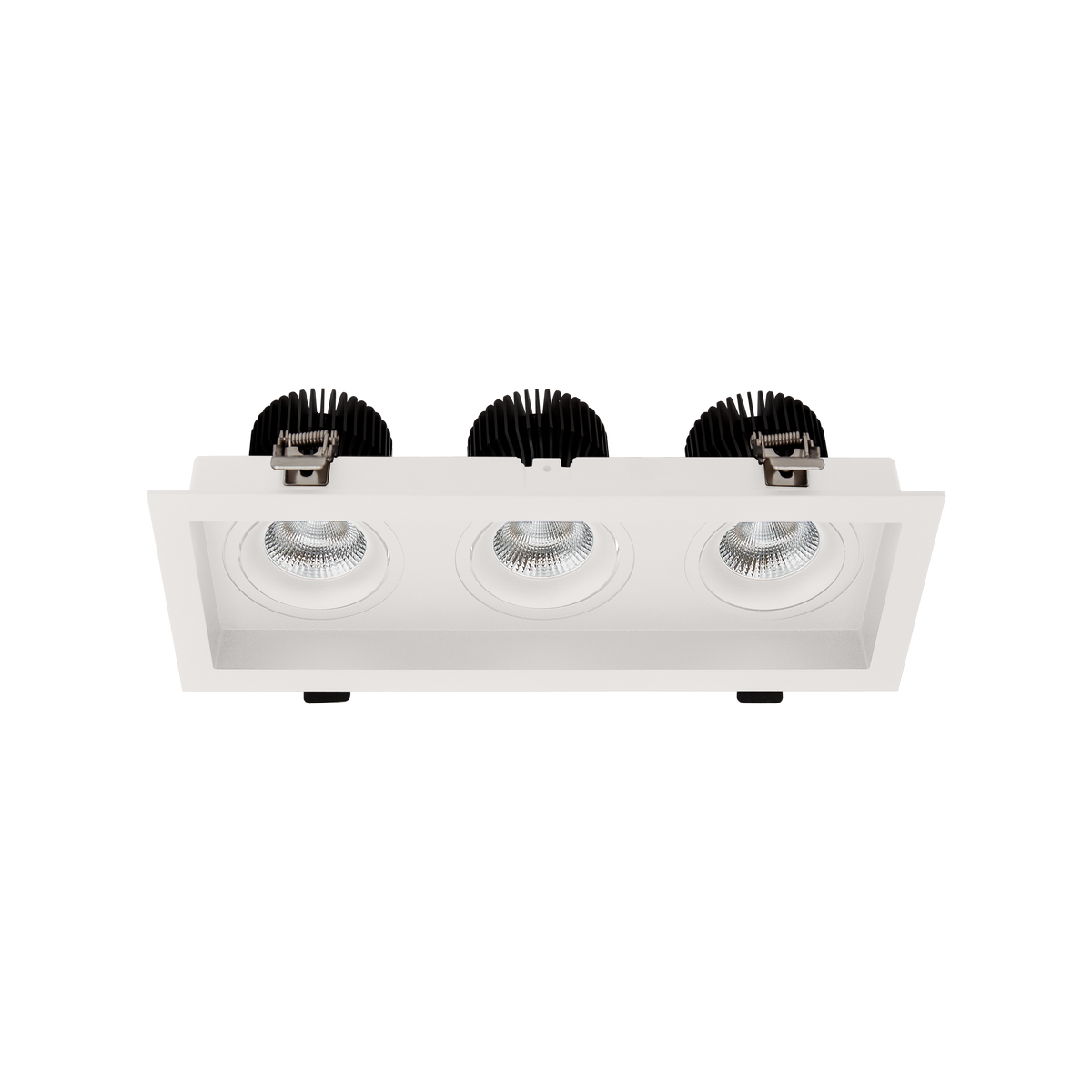

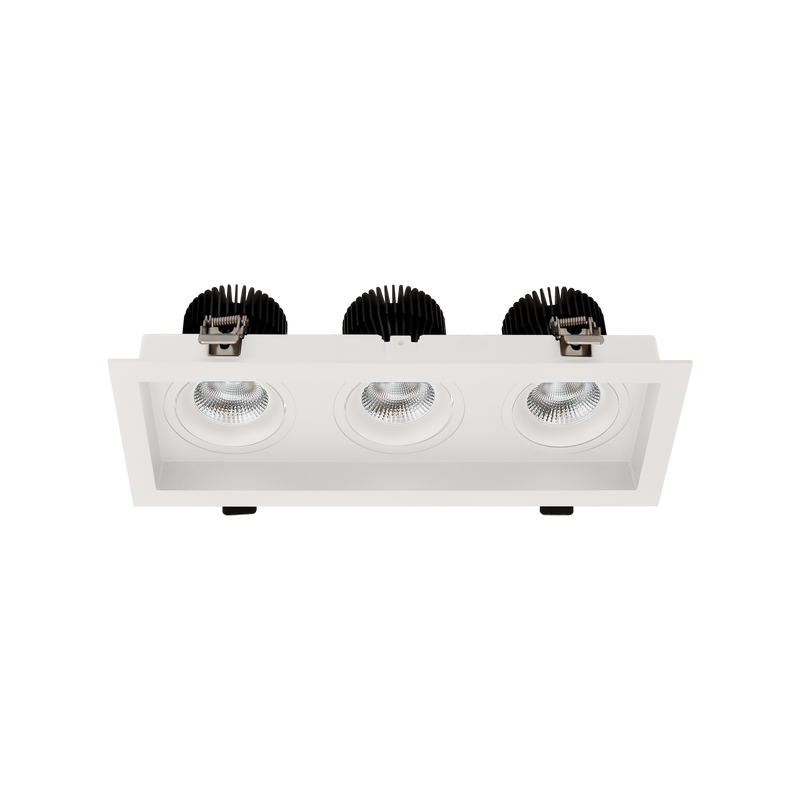

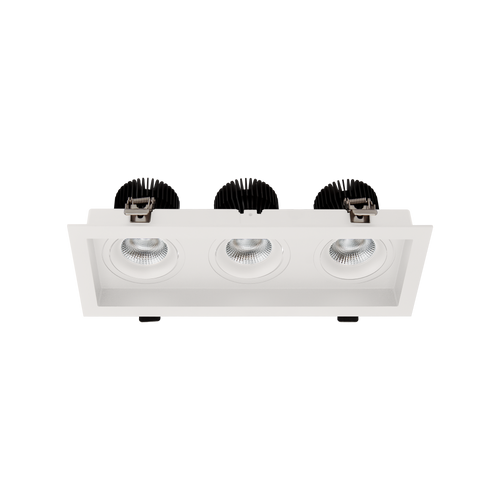

R513 W3K Cevon Box Tilt/Rotate Triple Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
2730lm
3x 11W
30°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R513
Cevon Box Tilt/Rotate Triple Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L280 x W95mm
Lumens
2730lm
Rotate Angle
358°
Watts
3x 11W
R513

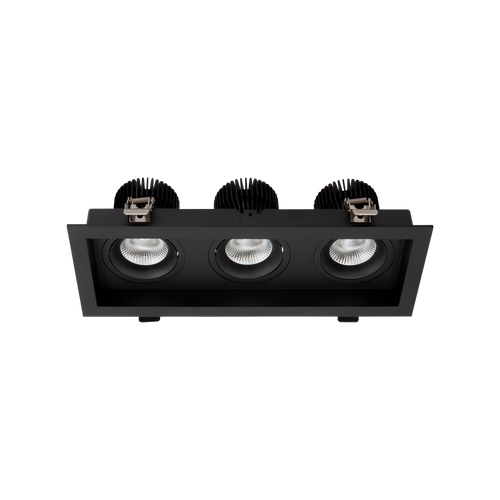

Cevon Box Tilt/Rotate Triple Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L280 x W95mm
Lumens
2730lm
Rotate Angle
358°
Watts
3x 11W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
3x 11W
Lumens
2730lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Tilt Angle
30°
Rotate Angle
358°
Ingress Protection
IP43
RAL Colour
RAL9003
Cut Out
L280 x W95mm
Height
90mm
Width
115mm
Length
300mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
