R512
- Checking stock...
Configure your R512 2 options
- White (selected)
- Black
R512 W3K Cevon Box Tilt/Rotate Double Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
1923lm
2x 11W
30°
DCC260-DX-12W-GL 260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Watts
6W-12W
Select Downlights

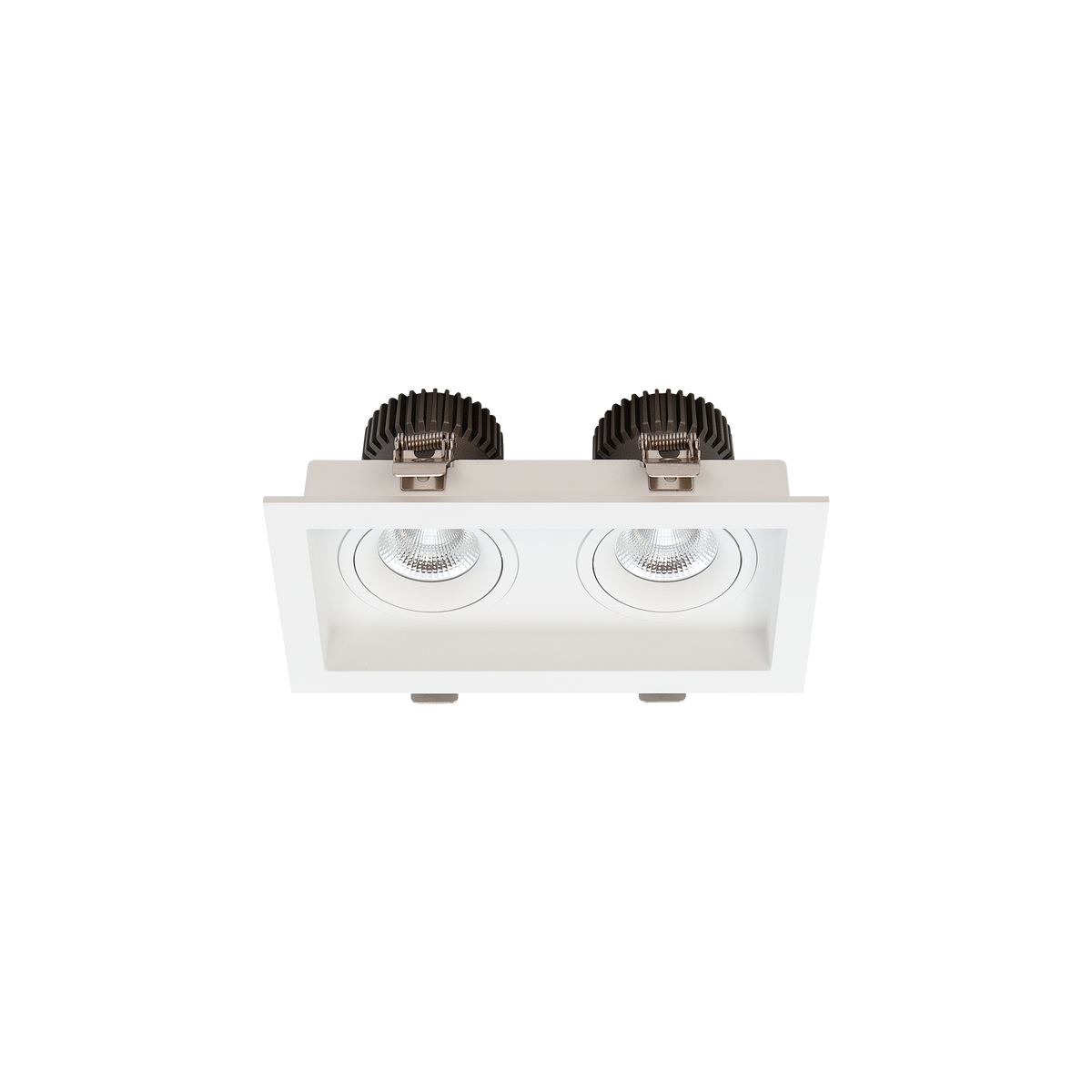

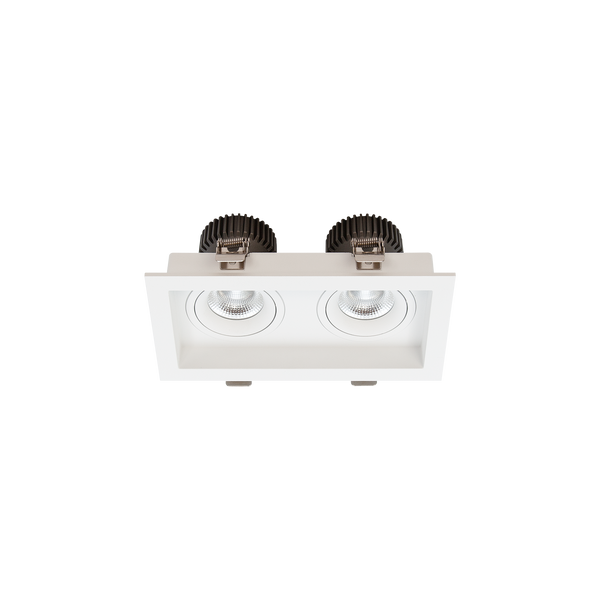

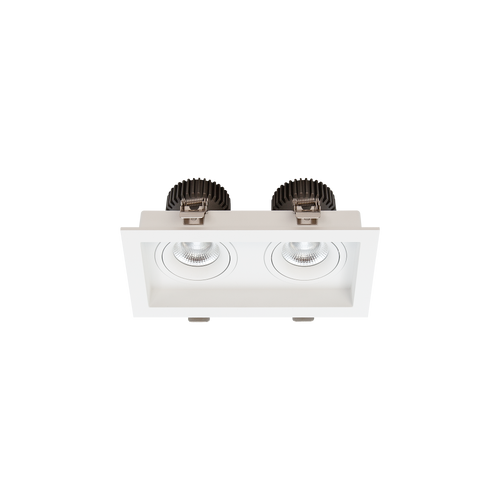

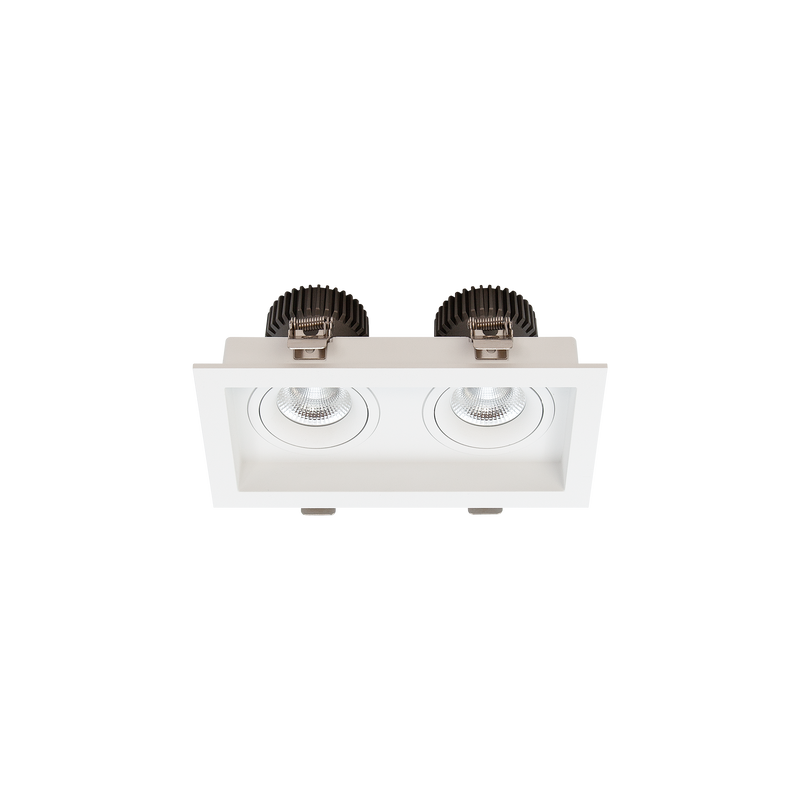

Cevon Box Tilt/Rotate Double Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L190 x W95mm
Lumens
1923lm
Rotate Angle
358°
Watts
2x 11W

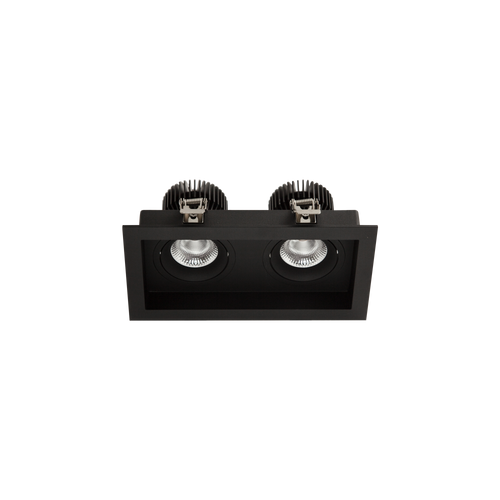

Cevon Box Tilt/Rotate Double Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L190 x W95mm
Lumens
1923lm
Rotate Angle
358°
Watts
2x 11W
Specifications
R512 W3K
Cut Out
L190 x W95mm
Finish
White
Colour Temp
3000K Warm White
Watts
2x 11W
Lumens
1923lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Tilt Angle
30°
Rotate Angle
358°
Lifespan
55,000hrs (L90)
Ingress Protection
IP43
RAL Colour
RAL9003
Height
90mm
Width
115mm
Length
210mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC260-DX-12W-GL
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Resources
