R507 W4K
R507
- Checking stock...

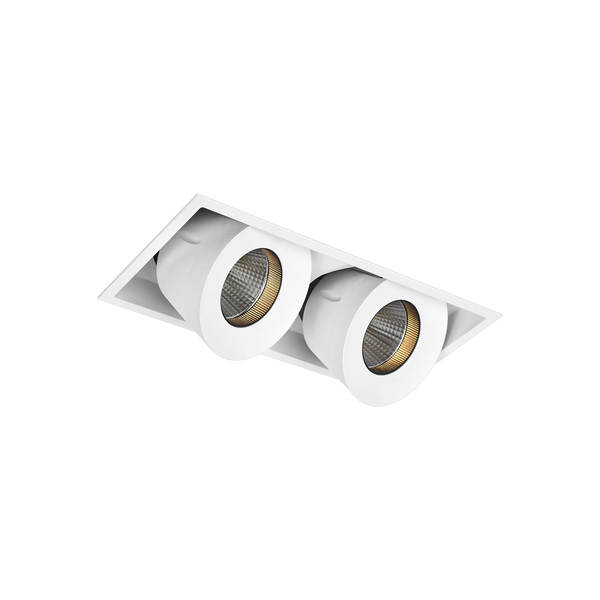

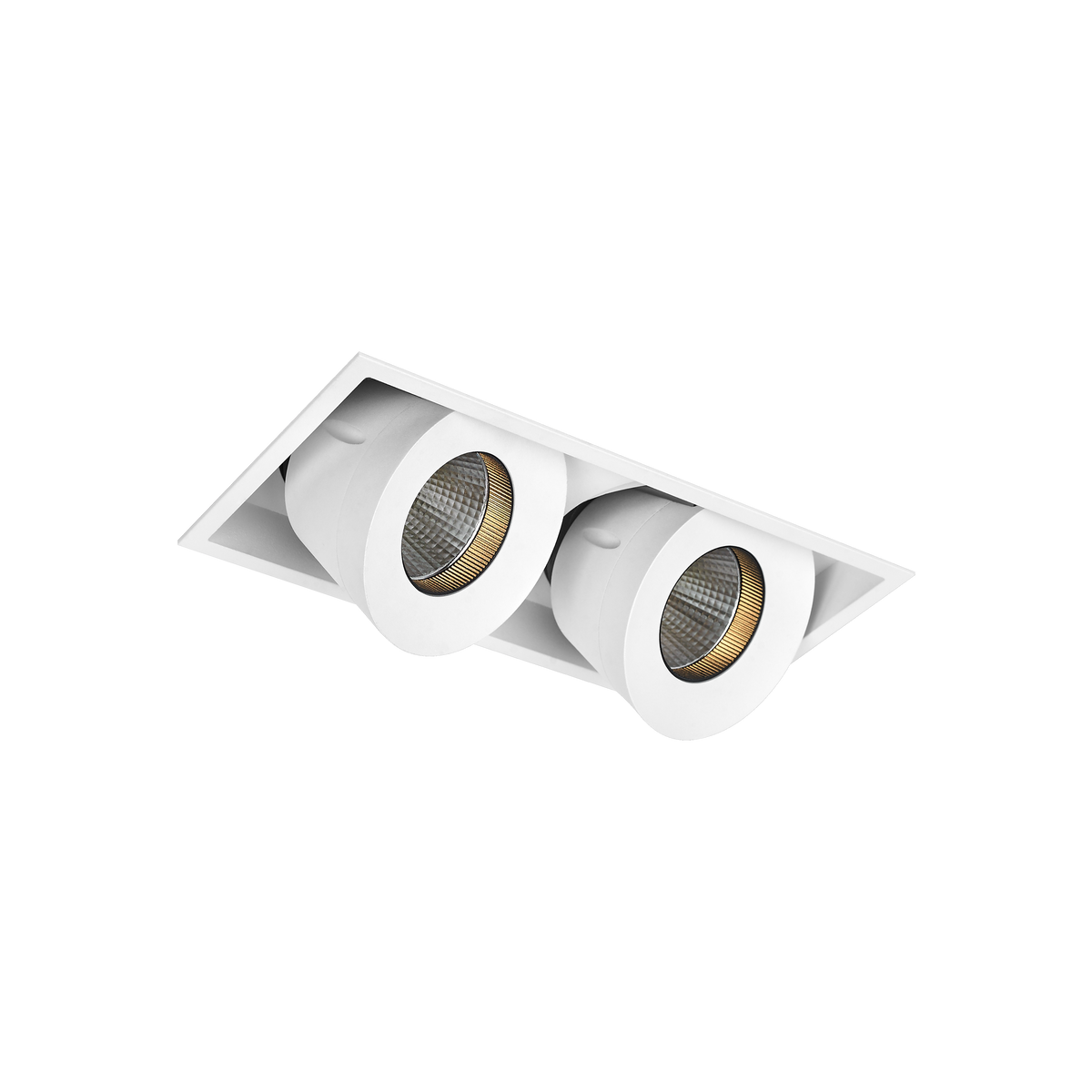

R507 W4K Sophia Double Tilt/Rotate Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
3660lm
2x 20W
45°
View Options
Select Downlights
R507
Sophia Double Tilt/Rotate Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
L230 x W115mm
Lumens
3660lm
Rotate Angle
355°
Watts
2x 20W
R507
Sophia Double Tilt/Rotate Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L230 x W115mm
Lumens
3450lm
Rotate Angle
355°
Watts
2x 20W
R507
Sophia Double Tilt/Rotate Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L230 x W115mm
Lumens
3450lm
Rotate Angle
355°
Watts
2x 20W

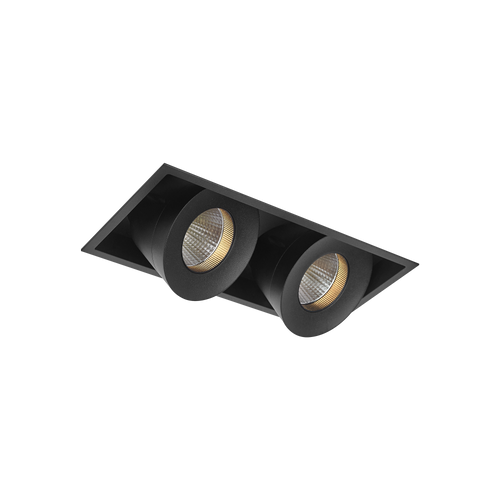

R507
Sophia Double Tilt/Rotate Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
L230 x W115mm
Lumens
3660lm
Rotate Angle
355°
Watts
2x 20W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
2x 20W
Lumens
3660lm
Beam Angle
42°
Dimming / Control
Dimmable
CRI
93
Lifespan
55,000hrs (L90)
Tilt Angle
45°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
L230 x W115mm
Height
128mm
Width
124mm
Length
240mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
500mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
