R506 W4K
R506
- Custom Build - Stock Available

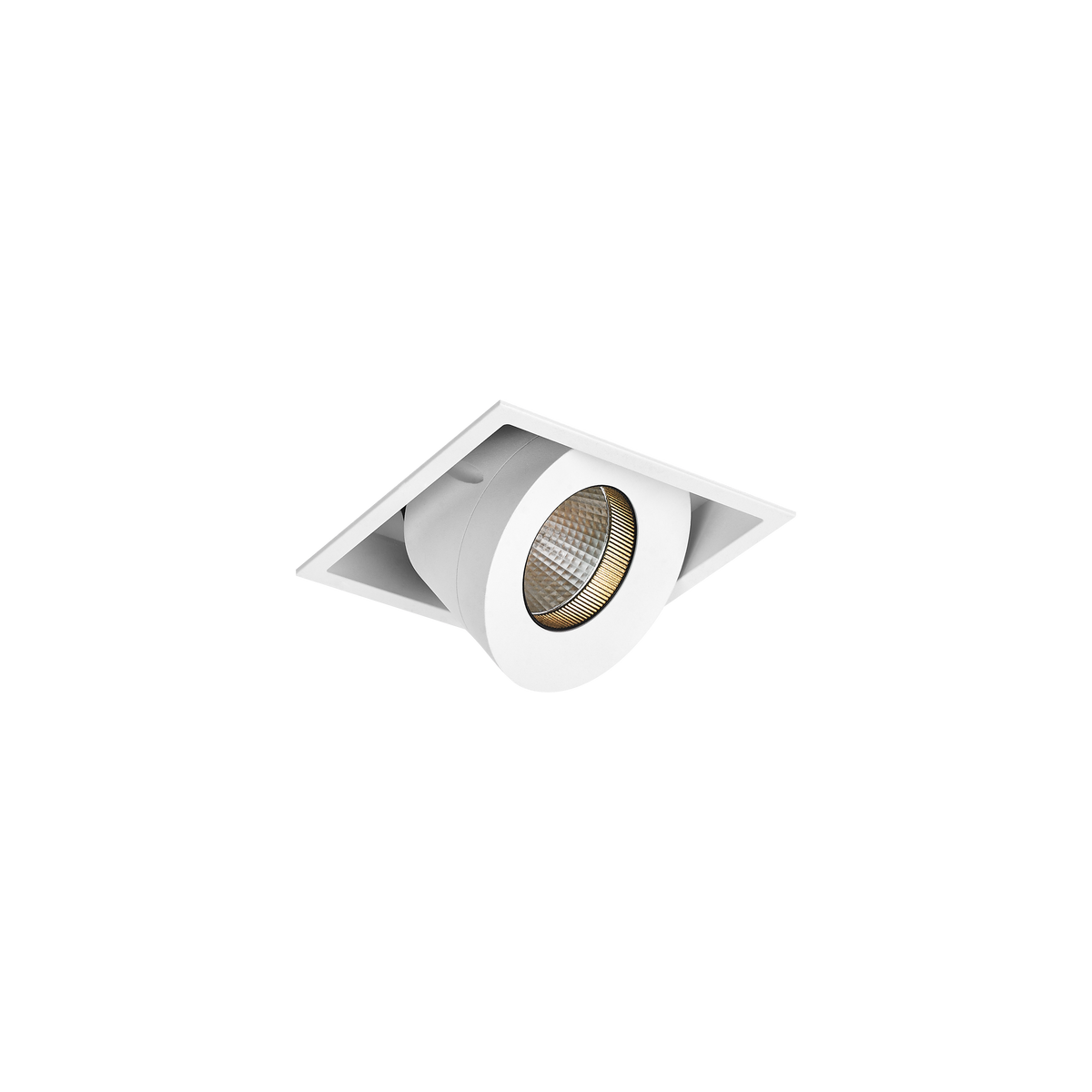

R506 W4K Sophia Square Tilt/Rotate Large Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
1981lm
20W
45°
View Options
DCC500-DX-30W
Watts
15W-30W
Watts
15W-30W
Select Downlights
R506
Sophia Square Tilt/Rotate Large Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
L115 x W115mm
Lumens
1981lm
Rotate Angle
355°
Watts
20W
R506
Sophia Square Tilt/Rotate Large Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L115 x W115mm
Lumens
1826lm
Rotate Angle
355°
Watts
20W
R506

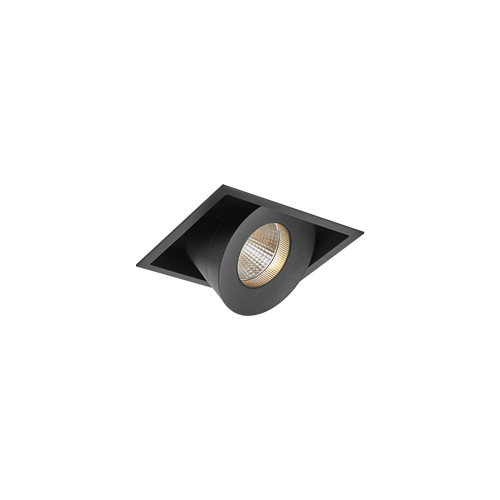

Sophia Square Tilt/Rotate Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L115 x W115mm
Lumens
1826lm
Rotate Angle
355°
Watts
20W
R506
Sophia Square Tilt/Rotate Large Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
L115 x W115mm
Lumens
1981lm
Rotate Angle
355°
Watts
20W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
20W
Lumens
1981lm
Beam Angle
42°
Dimming / Control
Phase-Cut Dimmable
CRI
93
Lifespan
55,000hrs (L90)
Tilt Angle
45°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
L115 x W115mm
Height
128mm
Width
124mm
Length
124mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
500mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
24mm
Width
52mm
Length
166mm
