R505 B3K
R505
- Checking stock...

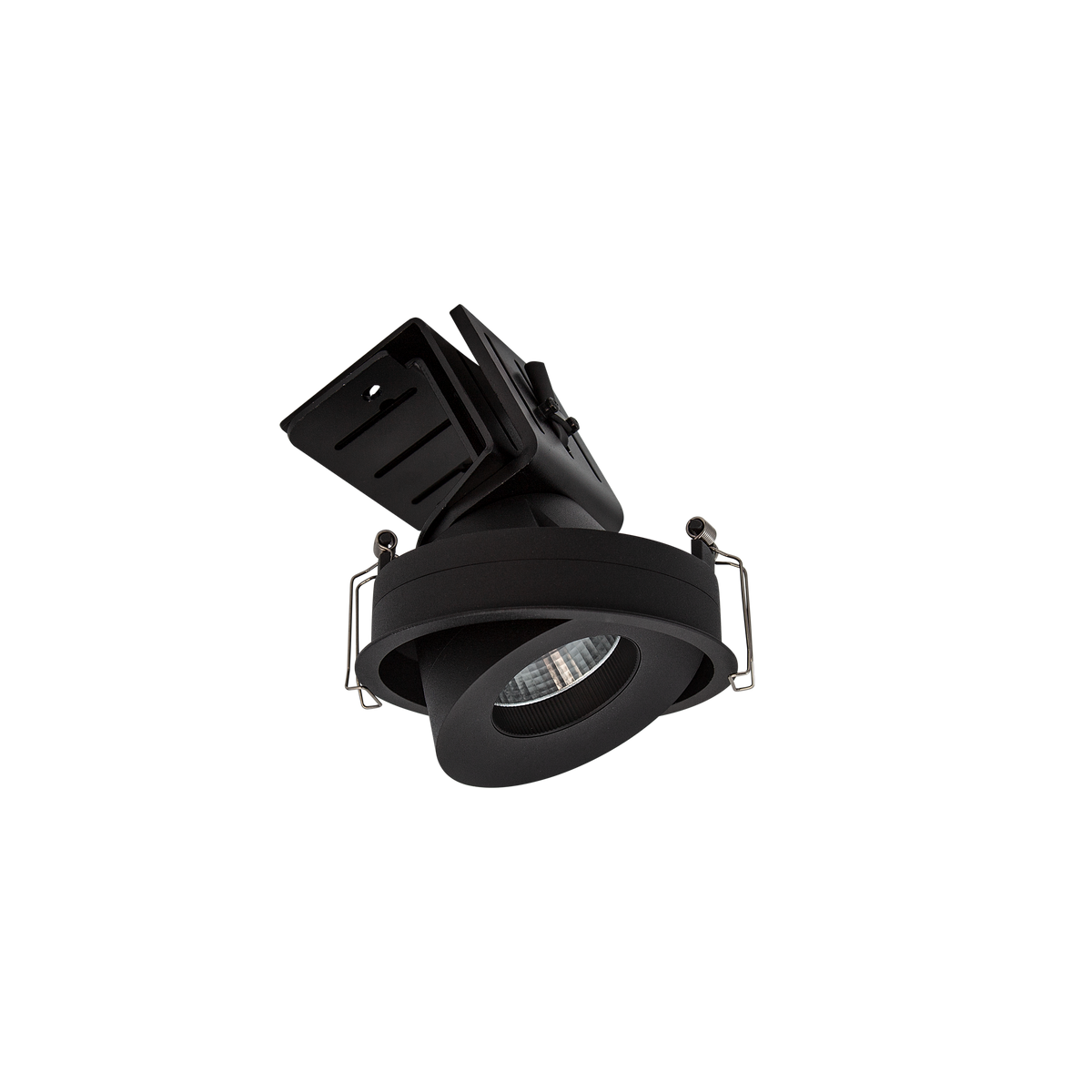

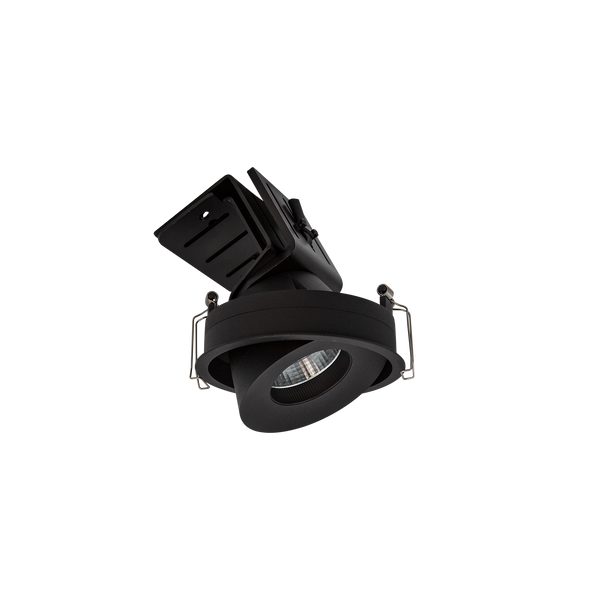

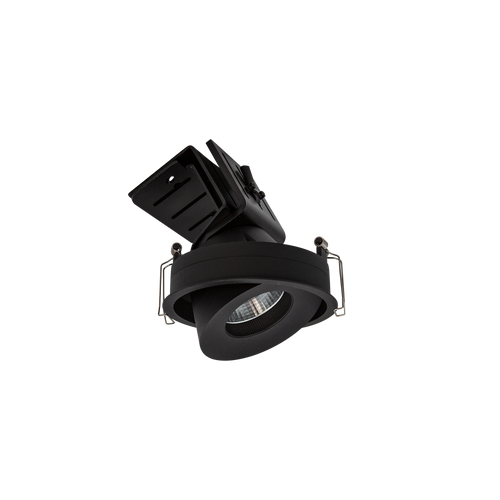

R505 B3K Sophia Single Tilt/Rotate Downlight Kit Black 3000K
Lumens
Watts
Tilt Angle
1826lm
20W
45°
View Options
DCC500-DX-30W
Watts
15W-30W
Watts
15W-30W
Select Downlights
R505
Sophia Single Tilt/Rotate Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
115mm
Lumens
1826lm
Rotate Angle
355°
Watts
20W
R505
Sophia Single Tilt/Rotate Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
115mm
Lumens
1826lm
Rotate Angle
355°
Watts
20W
R505

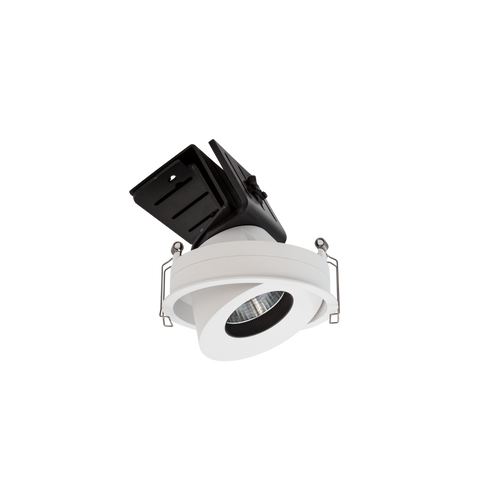

Sophia Single Tilt/Rotate Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
115mm
Lumens
1981lm
Rotate Angle
355°
Watts
20W
R505
Sophia Single Tilt/Rotate Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
45°
Cut out
115mm
Lumens
1981lm
Rotate Angle
355°
Watts
20W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
20W
Lumens
1826lm
Beam Angle
42°
Dimming / Control
Phase-Cut Dimmable
CRI
93
Lifespan
55,000hrs (L90)
Tilt Angle
45°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
115mm
Diameter
124mm
Height
128mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
500mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
24mm
Width
52mm
Length
166mm
