R503
- Checking stock...
Configure your R503 2 options
- White (selected)
- Black
R503 W3K Sophia Mini Triple Tilt/Rotate Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
1977lm
3x 11W
45°
DCC260-DX-12W-GL 260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Watts
6W-12W
Select Downlights

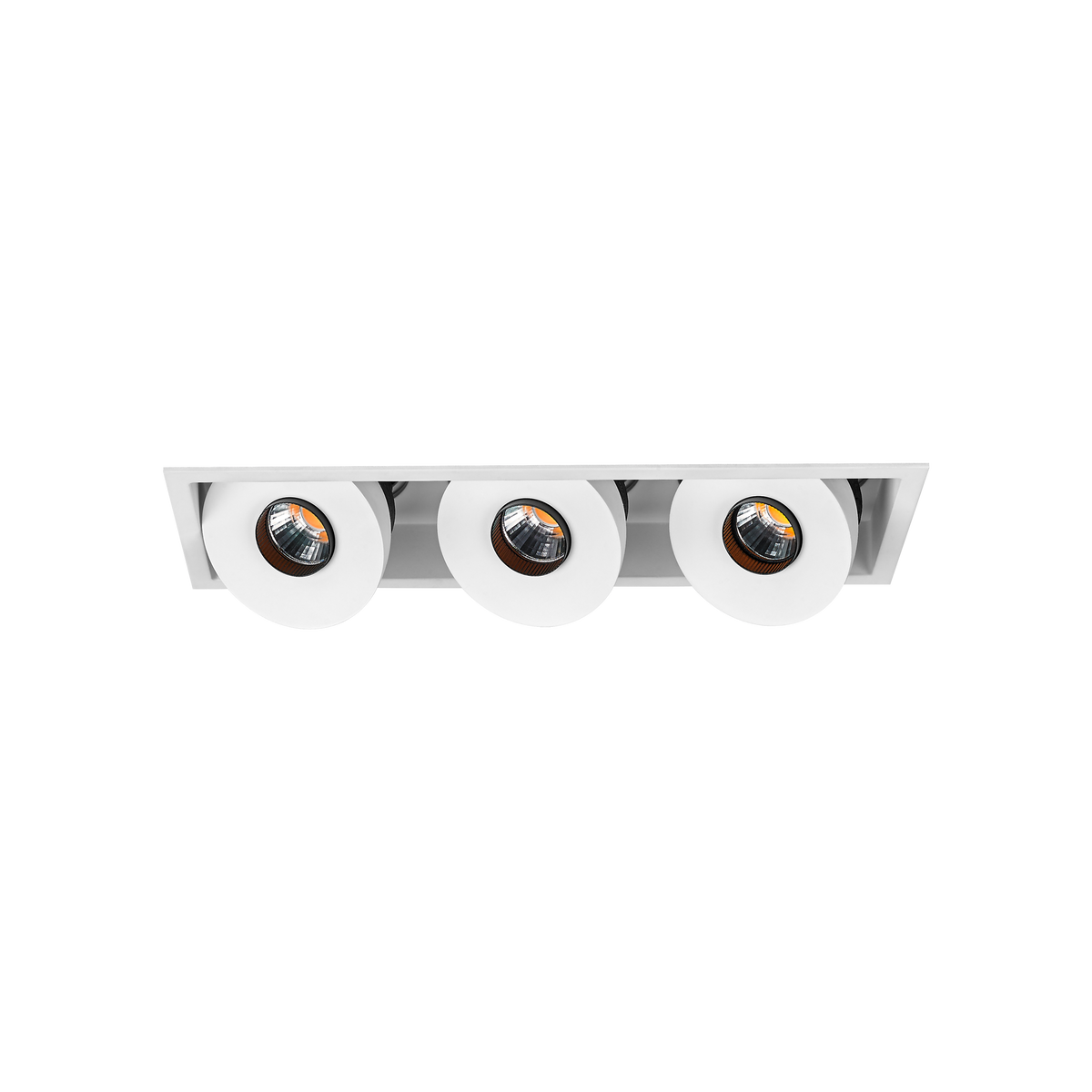

Sophia Mini Triple Tilt/Rotate Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L200 x W70mm
Lumens
1977lm
Rotate Angle
355°
Watts
3x 11W

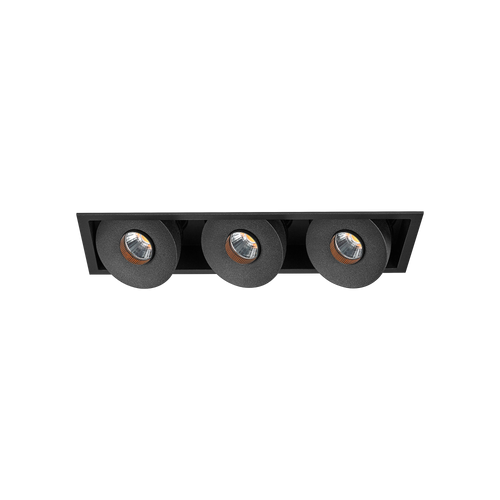

Sophia Mini Triple Tilt/Rotate Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
L200 x W70mm
Lumens
1977lm
Rotate Angle
355°
Watts
3x 11W
Specifications
R503 W3K
Cut Out
L200 x W70mm
Finish
White
Colour Temp
3000K Warm White
Watts
3x 11W
Lumens
1977lm
Beam Angle
42° (x3)
Dimming / Control
Phase-Cut Dimmable
CRI
97
Tilt Angle
45°
Rotate Angle
355°
Lifespan
55,000hrs (L90)
Ingress Protection
IP20
RAL Colour
RAL9003
Height
91mm
Width
78mm
Length
210mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC260-DX-12W-GL
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Resources
