R500 W3K
R500
- Checking stock...
R500 W3K Sophia Mini Round Single Tilt/Rotate Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
672lm
11W
45°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R500
Sophia Mini Round Single Tilt/Rotate Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
70mm
Lumens
672lm
Rotate Angle
355°
Watts
11W
R500

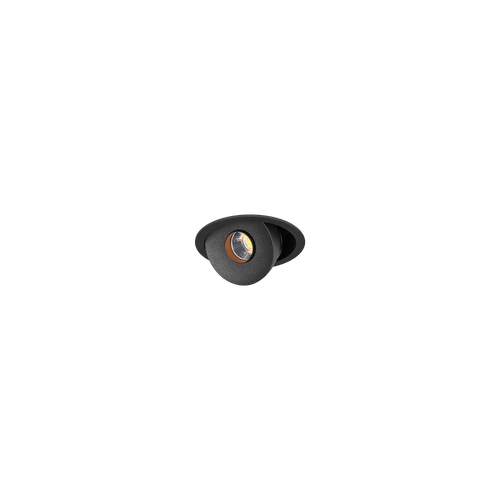

Sophia Mini Round Single Tilt/Rotate Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
70mm
Lumens
672lm
Rotate Angle
355°
Watts
11W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
11W
Lumens
672lm
Beam Angle
42°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Tilt Angle
45°
Rotate Angle
355°
Ingress Protection
IP20
RAL Colour
RAL9003
Cut Out
70mm
Diameter
78mm
Height
91mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
