R262 W4D10V
R262
- Custom Build - Request Availability

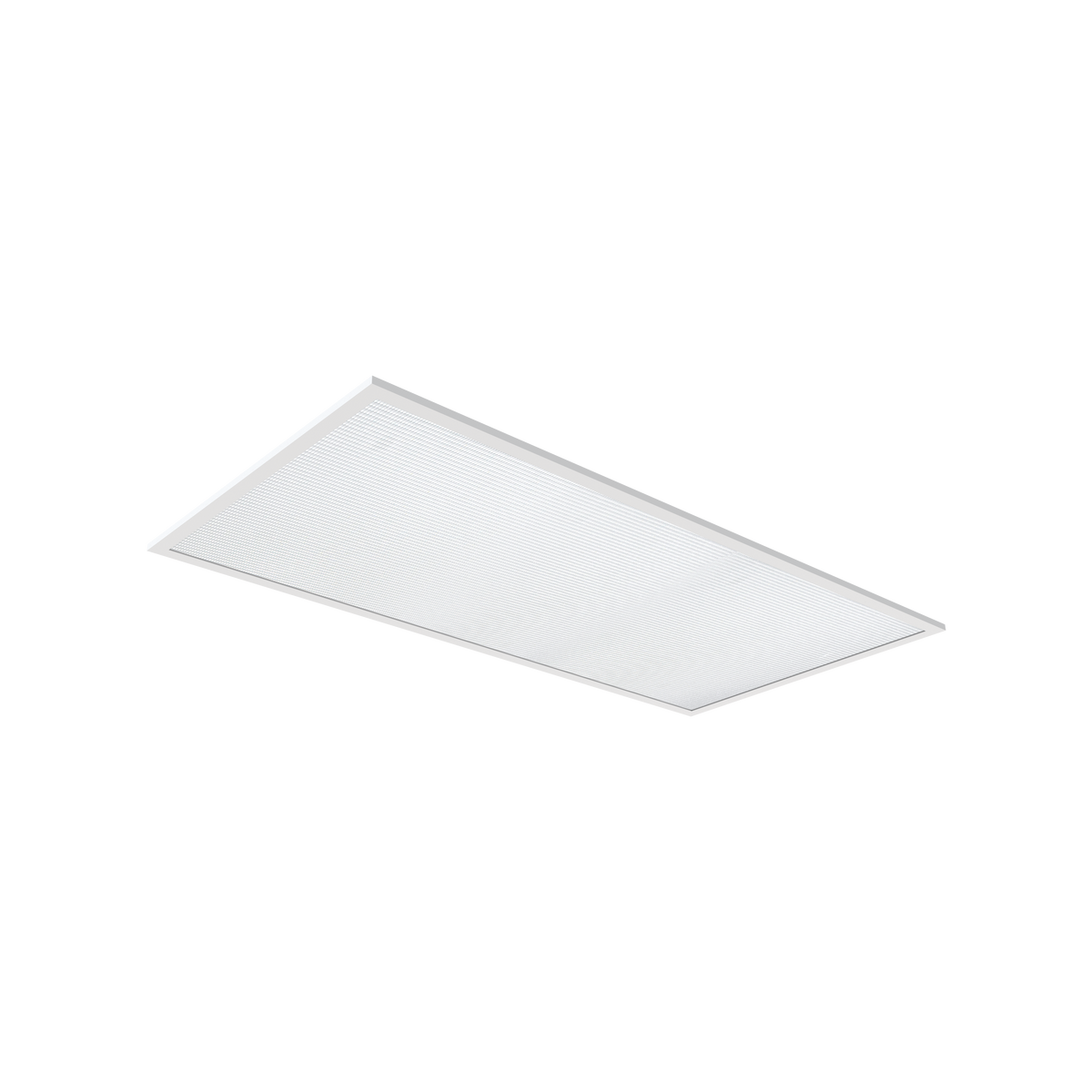

R262 W4D10V 12x6 Cleanline Pro Panel Cyanosis Compliant 1-10V White 4000K
Lumens
Watts
5100lm
65W
View Options
-
12x6 Surface Mount Kit White
-
12x6 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R262
12x6 Cleanline Pro Panel Cyanosis Compliant 1-10V White 4000K
Temp.
4000K Natural White
Lumens
5100lm
Watts
65W
R262
12x6 Cleanline Pro Panel Cyanosis Compliant White 4000K
Temp.
4000K Natural White
Lumens
5100lm
Watts
65W
R262
12x6 Cleanline Pro Panel Cyanosis Compliant Dali 4000K
Temp.
4000K Natural White
Lumens
5100lm
Watts
65W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
65W
Lumens
5100lm
Beam Angle
80°
Dimming / Control
1-10V Dimmable
CRI
97
Lifespan
50,000hrs (L80 B10)
Ingress Protection
IP65
Height
25.8mm
Width
595mm
Length
1195mm
Binning
SDCM 3
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium frame, PS Diffuser, PMMA LGP
Driver Output Current
1650mA
Ambient Operating Temperature
-20..+40°C
Power Factor
0
Warranty
5 Year Warranty
