R252 B4DD
R252
- Custom Build - Request Availability

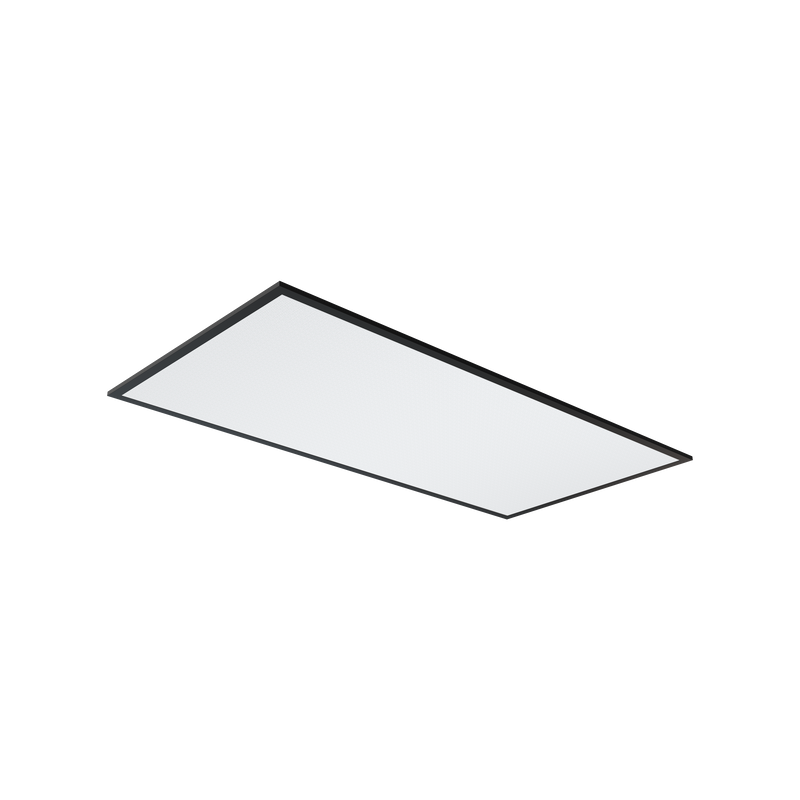

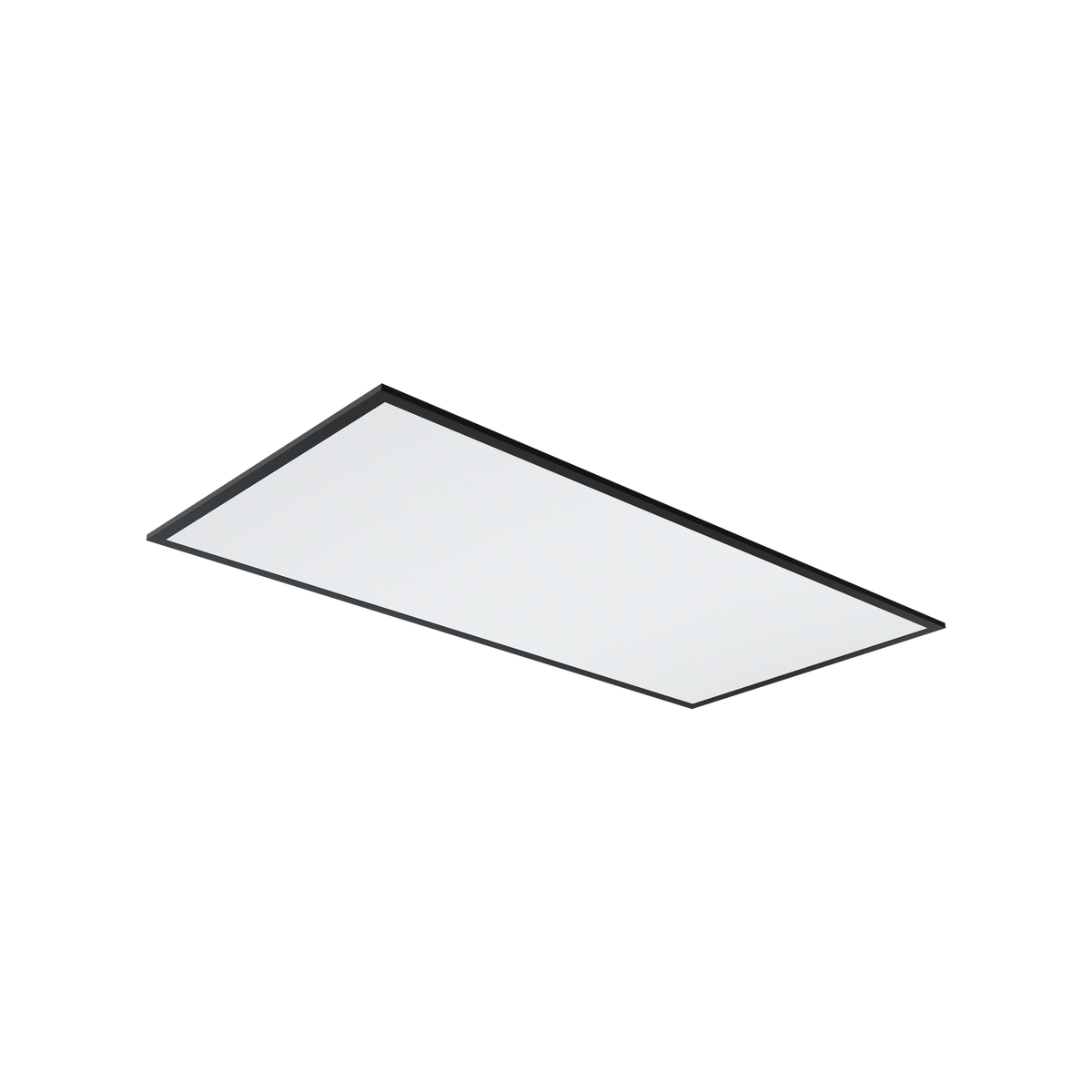

R252 B4DD 12x6 Proline Backlit Panel Dali Black 4000K
Lumens
Watts
6200lm
56W
View Options
-
12x6 Surface Mount Kit Black
-
12x6 Recessed Frame Kit Black
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R252
12x6 Proline Backlit Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
6200lm
Watts
56W
R252
12x6 Proline Select Backlit Panel 40-56W White 4000K
Temp.
4000K Natural White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
R252
12x6 Proline Backlit Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4700lm
Watts
40W
R252
12x6 Proline Backlit Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
6200lm
Watts
56W
R252
12x6 Proline Backlit Panel 1-10V Dimmable White 4000K
Temp.
4000K Natural White
Lumens
6200lm
Watts
56W
R252
12x6 Proline Backlit Low Output Panel White 4000K
Temp.
4000K Natural White
Lumens
3800lm
Watts
32W
R252
12x6 Proline Backlit High Output Panel White 4000K
Temp.
4000K Natural White
Lumens
7300lm
Watts
65W
R252
12x6 Proline Backlit Panel Casambi White 4000K
Temp.
4000K Natural White
Lumens
5300lm
Watts
46W
R252
12x6 Proline Select Backlit Panel 40-56W - 5000K White 5000K
Temp.
5000K Cool White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
R252
12x6 Proline Backlit Panel Phase-cut Dimmable White 5000K
Temp.
5000K Cool White
Lumens
4700lm
Watts
40W
R252
12x6 Proline Select Backlit Panel 40-56W White 6000K
Temp.
6000K Cool White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
R252
12x6 Proline Backlit Panel Phase-cut Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4700lm
Watts
40W
R252
12x6 Proline Backlit Panel 1-10V Dimmable White 6000K
Temp.
6000K Cool White
Lumens
6200lm
Watts
56W
R252
12x6 Proline Select Backlit Panel 40-56W Black 4000K
Temp.
4000K Natural White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
R252
12x6 Proline Backlit Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
4700lm
Watts
40W
R252
12x6 Proline Backlit Low Output Panel Black 4000K
Temp.
4000K Natural White
Lumens
3800lm
Watts
32W
R252
12x6 Proline Backlit High Output Panel Black 4000K
Temp.
4000K Natural White
Lumens
7300lm
Watts
65W
Specifications
Finish
Black
Colour Temp
4000K Natural White
Watts
56W
Lumens
6200lm
Beam Angle
100°
Dimming / Control
Dali
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP20
Height
32mm
Width
595mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II - double insulated
Driver Output Current
1400mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
