R251 W5D
R251
- Custom Build - Request Availability

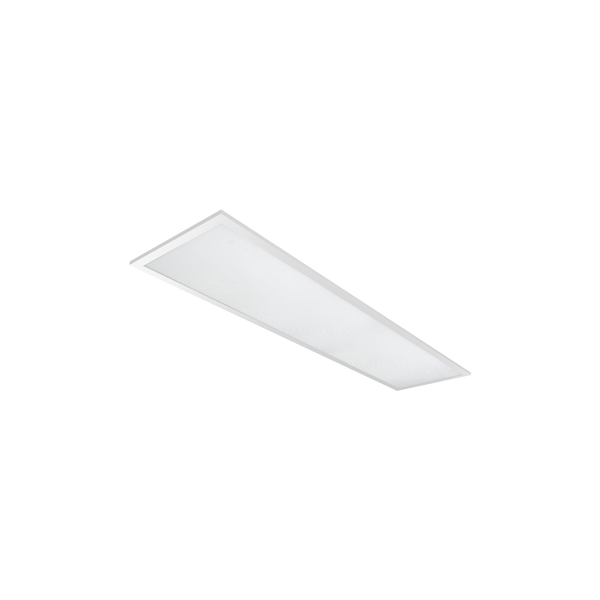

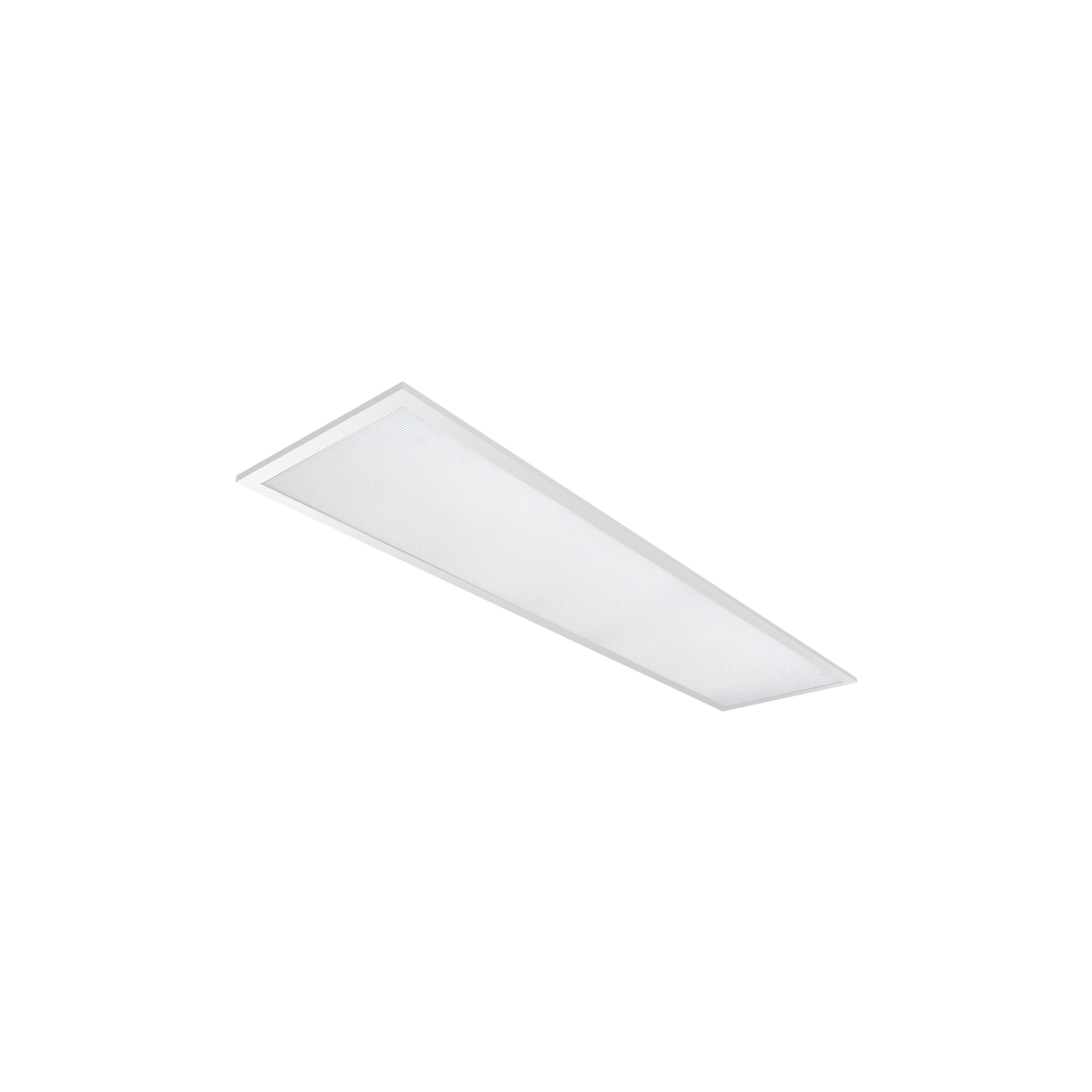

R251 W5D 12x3 Proline Backlit Panel Phase-cut Dimmable White 5000K
Lumens
Watts
4000lm
42W
View Options
-
12x3 Surface Mount Kit White
-
12x3 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R251
12x3 Proline Backlit Panel Phase-cut Dimmable White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Select Backlit Panel 27-42W White 4000K
Temp.
4000K Natural White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
R251
12x3 Proline Backlit Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Backlit Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Backlit Panel 1-10V Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Backlit Panel Casambi White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Select Backlit Panel 27-42W White 5000K
Temp.
5000K Cool White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
R251
12x3 Proline Backlit Panel Dali White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Backlit Panel 1-10V Dimmable White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Select Backlit Panel 27-42W White 6000K
Temp.
6000K Cool White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
R251
12x3 Proline Backlit Panel Phase-cut Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Select Backlit Panel 27-42W Black 4000K
Temp.
4000K Natural White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
R251
12x3 Proline Backlit Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R251
12x3 Proline Backlit Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
Specifications
Finish
White
Colour Temp
5000K Cool White
Watts
42W
Lumens
4000lm
Beam Angle
100°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP20
Height
32mm
Width
295mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II - double insulated
Driver Output Current
1050mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
