R250 W5D
R250
- Custom Build - Stock Available

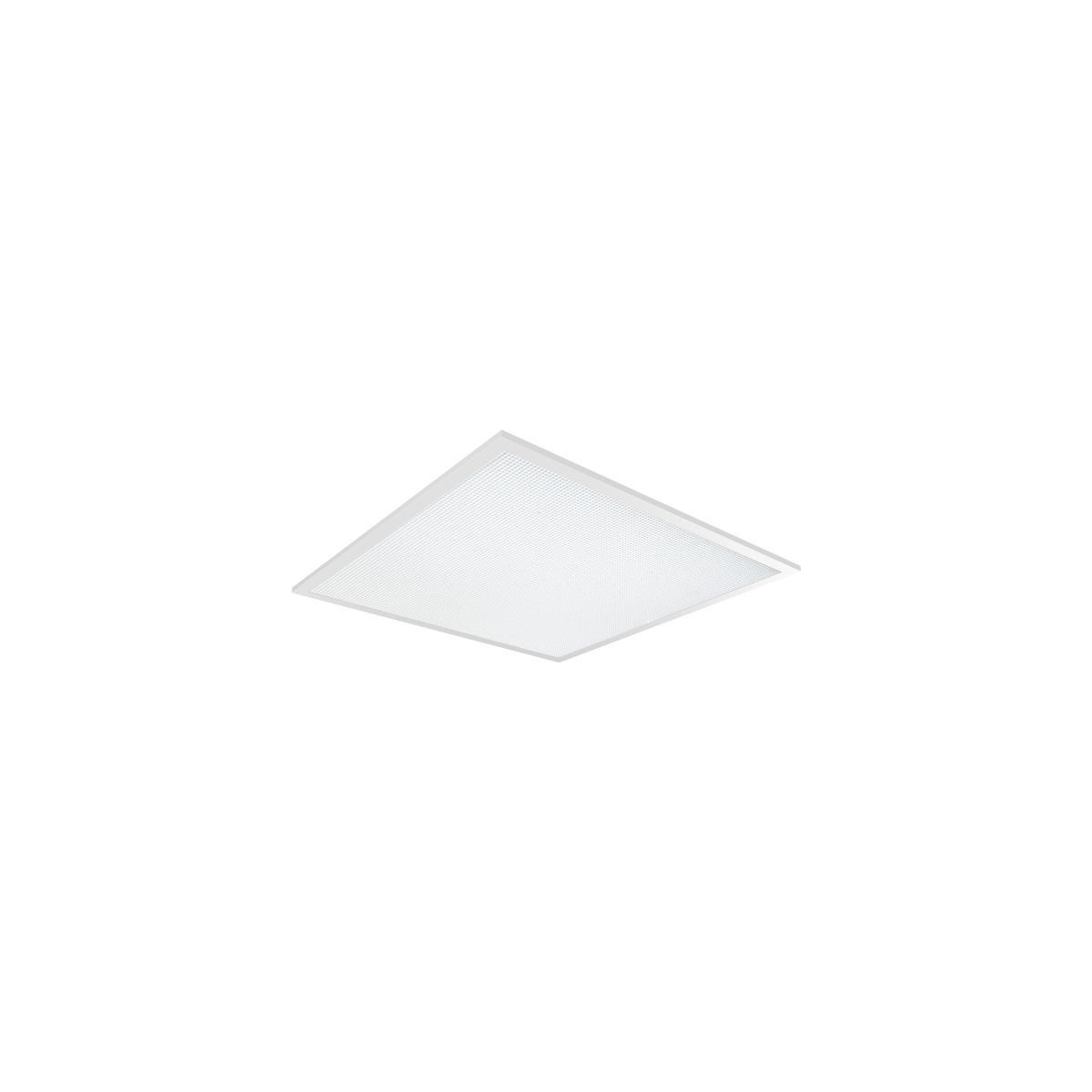

R250 W5D 6x6 Proline Backlit Panel Phase-cut Dimmable White 5000K
Lumens
Watts
4000lm
42W
View Options
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
R250
6x6 Proline Backlit Panel Phase-cut Dimmable White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel Select 27-42W White 4000K
Temp.
4000K Natural White
Lumens
2800lm / 3400lm / 3500lm / 4000lm
Watts
27W / 33W / 36W / 42W
R250
6x6 Proline Backlit Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel 42W - 1-10V Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Select Backlit Panel 27-42W White 5000K
Temp.
5000K
Lumens
2800lm / 3400lm / 3500lm / 4000lm
Watts
Selectable 27W, 33W, 36W, 42W
R250
6x6 Proline Backlit Panel Dali White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel 1-10V Dimmable White 5000K
Temp.
5000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Select Backlit Panel 27-42W White 6000K
Temp.
6000K Cool White
Lumens
2800lm / 3400lm / 3500lm / 4000lm
Watts
27W / 33W / 36W / 42W
R250
6x6 Proline Backlit Panel Phase-cut Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel Dali White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel 1-10V Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel Casambi White 2700-6500K Tunable White
Temp.
Tuneable White 2700K to 6500K
Lumens
4000lm
Watts
45W
R250
6x6 Proline Backlit Panel Select 27-42W Black 4000K
Temp.
4000K Natural White
Lumens
2800lm / 3400lm / 3500lm / 4000lm
Watts
27W / 33W / 36W / 42W
R250
6x6 Proline Backlit Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
R250
6x6 Proline Backlit Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
4000lm
Watts
42W
Specifications
Finish
White
Colour Temp
5000K Cool White
Watts
42W
Lumens
4000lm
Beam Angle
100°
Dimming / Control
Phase-Cut Dimmable
CRI
90+
Lifespan
60,000hrs (L80)
Ingress Protection
IP20
Height
32mm
Width
595mm
Length
595mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Driver Output Current
1050mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
