P700 4KDD
P700
- Custom Build - Stock Available

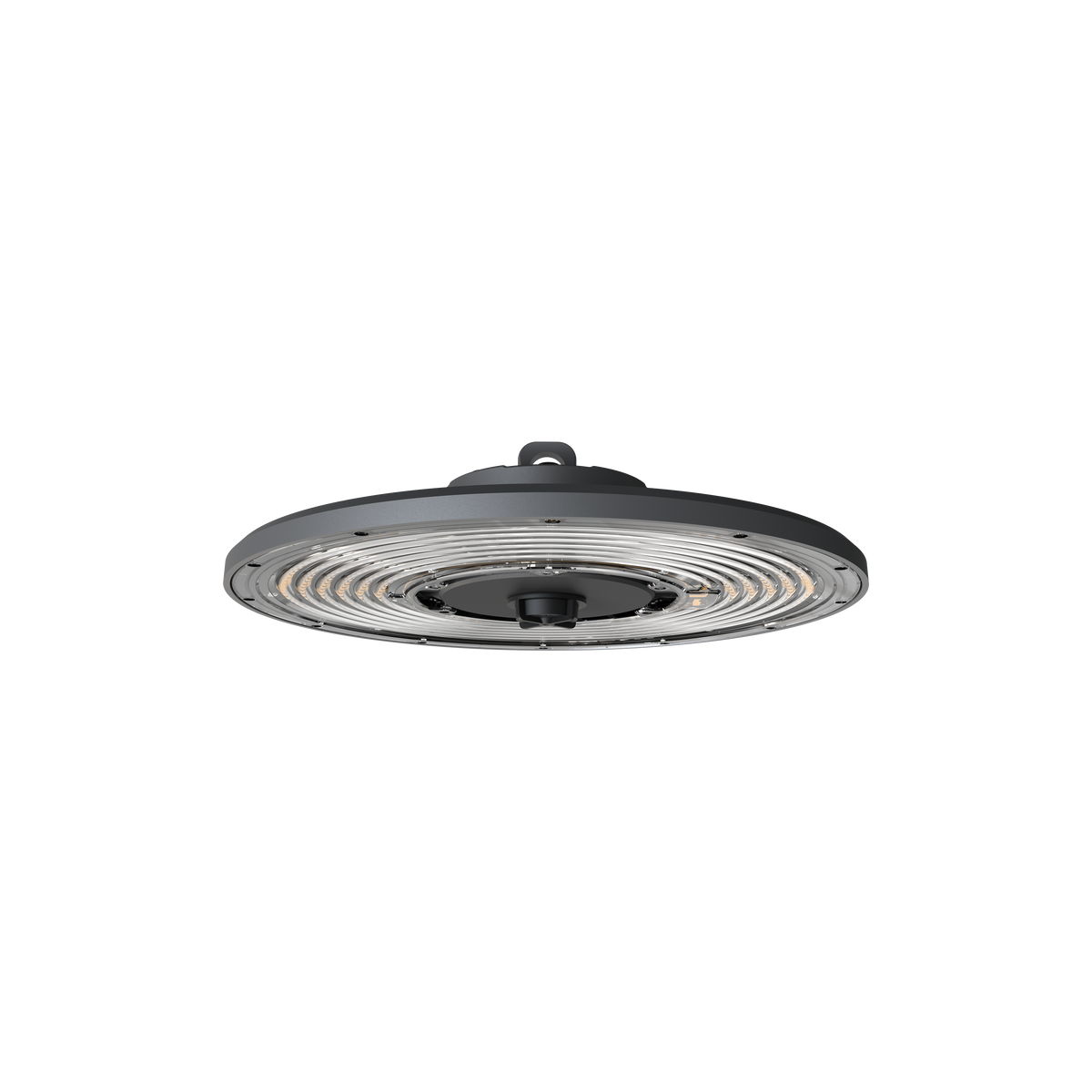

P700 4KDD LEDE 150W High Bay Graphite 4000K - Dali
Lumens
Watts
25,500lm
150W
View Options
-
Aluminium Glare Shield for P700
-
PC Glare Shield for P700
-
Sensor Accessory
-
Remote Control for High Bay Sensor
-
P700/1 Surface Mount Bracket
-
LEDE High Bay Casambi Module
-
High Bay Chain 250mm
-
High Bay Chain 500mm
-
High Bay Chain 1M
Select Highbay & Lowbay
P700
LEDE 150W High Bay Graphite 4000K - Dali
Temp.
4000K Natural White
Lumens
25,500lm
Watts
150W
P700
Standard 77-150W High Bay Graphite 4000K
Temp.
4000K Natural White
Lumens
14000lm / 17000lm / 19500lm / 23000lm / 25500lm
Watts
77W / 96W / 111W / 132W / 150W
P700
4 Pack - Standard 77-150W High Bay Graphite 4000K
Temp.
4000K Natural White
Lumens
14000lm / 17000lm / 19500lm / 23000lm / 25500lm
Watts
77W / 96W / 111W / 132W / 150W
P700
Standard 77-150W High Bay Graphite 5700K
Temp.
5700K Cool White
Lumens
14000lm / 17000lm / 19500lm / 23000lm / 25500lm
Watts
77W / 96W / 111W / 132W / 150W
P700
Dali 77-150W High Bay Graphite 5700K
Temp.
5700K Cool White
Lumens
25,500lm
Watts
150W
Specifications
Finish
Graphite
Colour Temp
4000K Natural White
Watts
150W
Lumens
25,500lm
Beam Angle
90°
Input
240V
Dimming / Control
Dali
CRI
80
Lifespan
57,000hrs (L80 B10)
Ingress Protection
IP65
RAL Colour
RAL7024
Diameter
340mm
Height
110mm
TLAs
"Flicker-free", PstLM≤1.0; SVM ≤0.4
Material
Aluminium, PC
Driver Included / Incorporated
Driver Incorporated
Ambient Operating Temperature
-30..+50°C
Power Factor
0.90
Impact Rating
IK08
Warranty
5 Year Warranty
