R102-W34KA-D-60D
R102
- Checking stock...

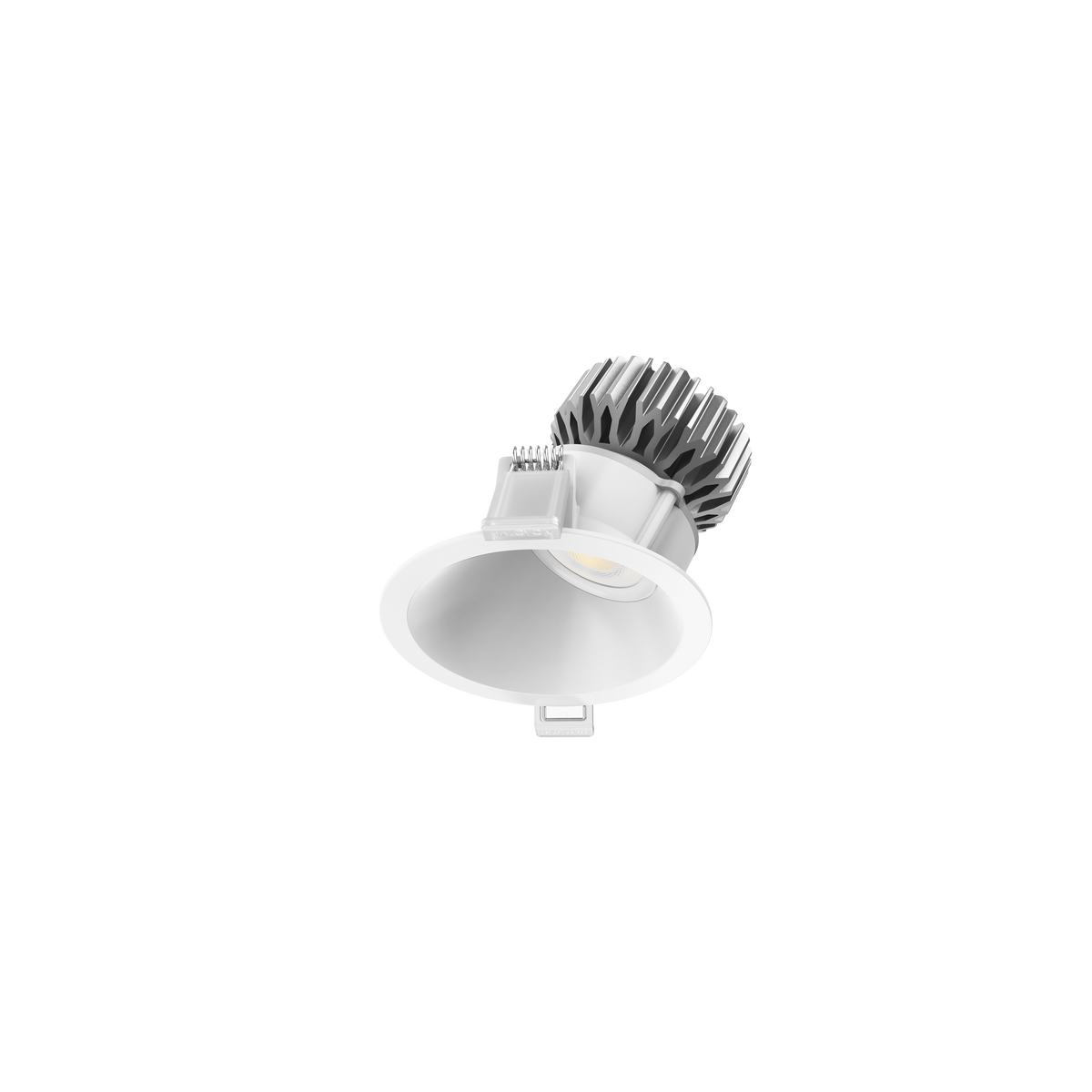

R102-W34KA-D-60D Ocular Offset Downlight 7-11W 3K/4K 60° White
Lumens
Watts
Tilt Angle
750lm / 950lm / 1100lm (See spec sheet)
7.2W / 9.2W / 11W
19°
View Options
DCC200350-DX-815W
Watts
8.4W-15W
Watts
8.4W-15W
Select Downlights
R102
Ocular Offset Downlight 7-11W 3K/4K 60° White
Temp.
3000K or 4000K (Selectable)
Tilt Angle
19°
Cut out
92mm
Lumens
750lm / 950lm / 1100lm (See spec sheet)
Rotate Angle
360°
Watts
7.2W / 9.2W / 11W
R102
Ocular Offset Downlight 7-11W 3K/4K 36° White
Temp.
3000K or 4000K (Selectable)
Tilt Angle
19°
Cut out
92mm
Lumens
750lm / 950lm / 1100lm (See spec sheet)
Rotate Angle
360°
Watts
7.2W / 9.2W / 11W
R102

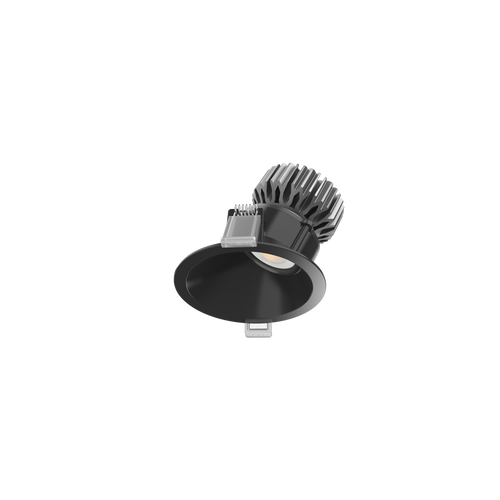

Ocular Offset Downlight 7-11W 3K/4K 60° Black
Temp.
3000K or 4000K (Selectable)
Tilt Angle
19°
Cut out
92mm
Lumens
700lm / 850lm / 900lm (See spec sheet)
Rotate Angle
360°
Watts
7.2W / 9.2W / 11W
R102
Ocular Offset Downlight 7-11W 3K/4K 36° Black
Temp.
3000K or 4000K (Selectable)
Tilt Angle
19°
Cut out
92mm
Lumens
700lm / 850lm / 900lm (See spec sheet)
Rotate Angle
360°
Watts
7.2W / 9.2W / 11W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
7.2W / 9.2W / 11W
Lumens
750lm / 950lm / 1100lm (See spec sheet)
Beam Angle
60°
Input
220-240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B30)
Tilt Angle
19°
Rotate Angle
360°
Ingress Protection
IP44
RAL Colour
W101
Cut Out
92mm
Diameter
106mm
Height
99mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Material
Aluminium, PC, PA
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Power Factor
0.9
Warranty
5 Year Warranty
Driver

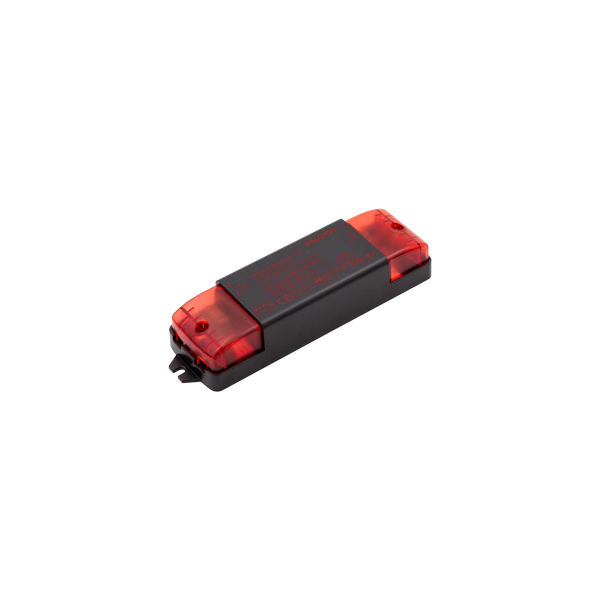

200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Input
220-240V
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
Downloads
