R100-B34KA-D-60D
R100
- Checking stock...

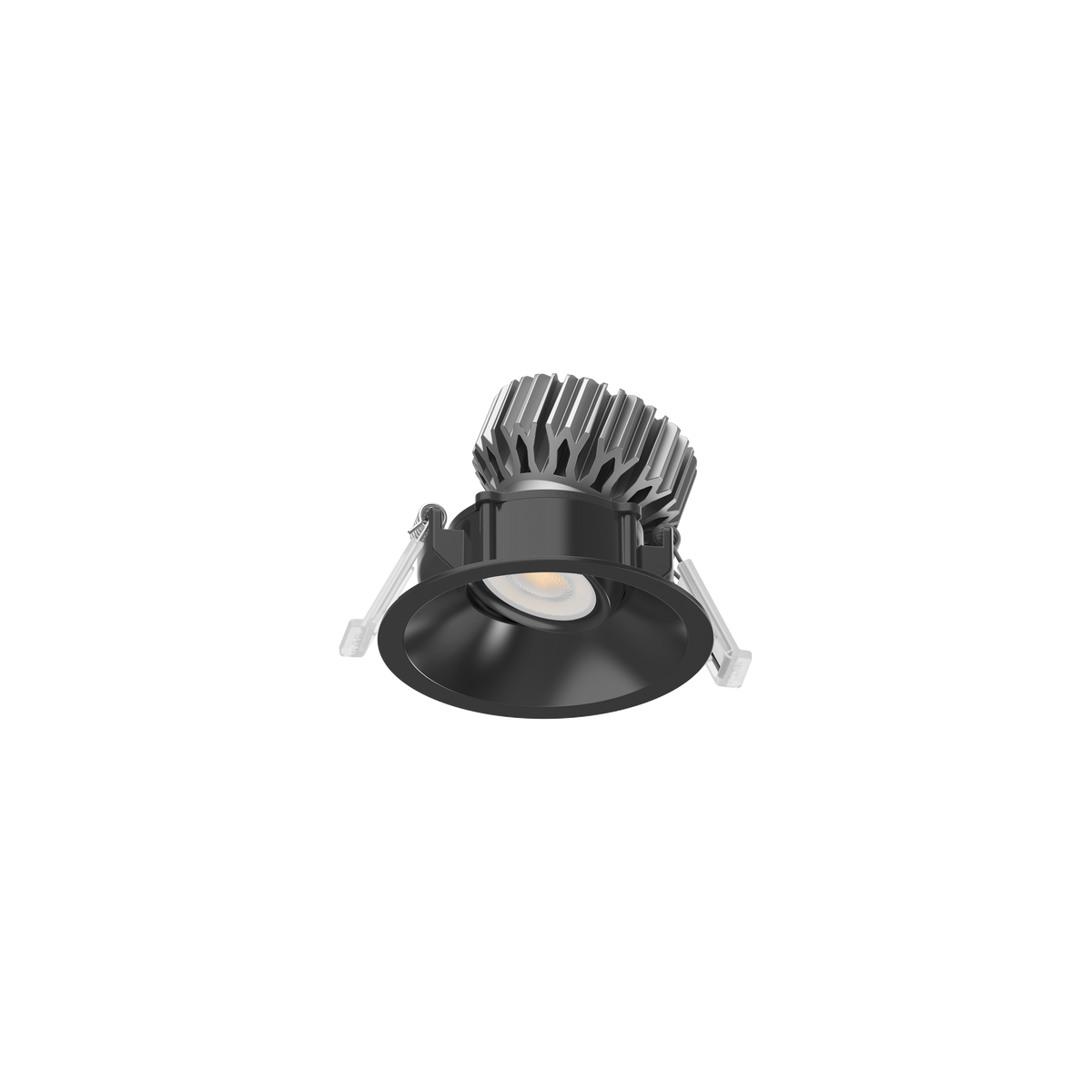

R100-B34KA-D-60D Ocular Downlight 60° Black 7-11W 3K/4K
Lumens
Watts
Tilt Angle
750lm, 900lm or 1000lm (Selectable)
7.2-11W
20°
View Options
DCC200350-DX-815W
Watts
8.4W-15W
Watts
8.4W-15W
Select Downlights
R100
Ocular Downlight 60° Black 7-11W 3K/4K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
20°
Cut out
92mm
Lumens
750lm, 900lm or 1000lm (Selectable)
Rotate Angle
360°
Watts
7.2-11W
R100
Ocular Downlight 60° White 7-11W 3K/4K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
20°
Cut out
92mm
Lumens
Selectable 800-1100lm
Rotate Angle
360°
Watts
7.2-11W
R100
Ocular Downlight White 36° 7-11W 3K/4K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
20°
Cut out
92mm
Lumens
Selectable 800-1100lm
Rotate Angle
360°
Watts
7.2-11W
R100
Ocular Downlight 36° Black 7-11W 3K/4K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
20°
Cut out
92mm
Lumens
750-1000lm (Selectable)
Rotate Angle
360°
Watts
7.2-11W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
7.2-11W
Lumens
750lm, 900lm or 1000lm (Selectable)
Beam Angle
60°
Input
220-240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B30)
Tilt Angle
20°
Rotate Angle
360°
Ingress Protection
IP44
RAL Colour
B103
Cut Out
92mm
Diameter
108mm
Height
86mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Material
Aluminium, PC, PA
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Power Factor
0.9
Warranty
5 Year Warranty
Driver
200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Input
220-240V
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
