M41-T3-HO-BS3K-36D
M41-T3-HO
- Custom Build - Stock Available

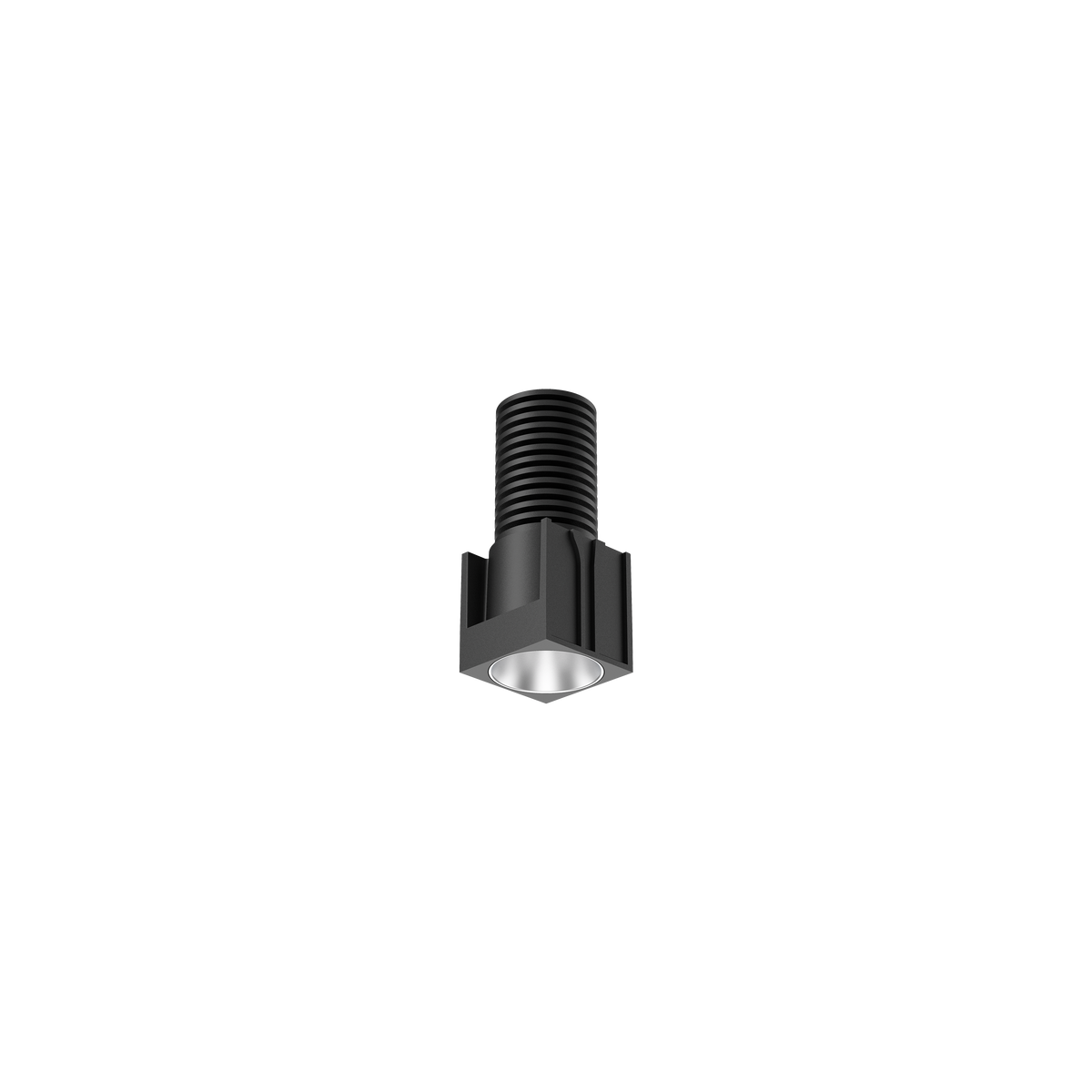

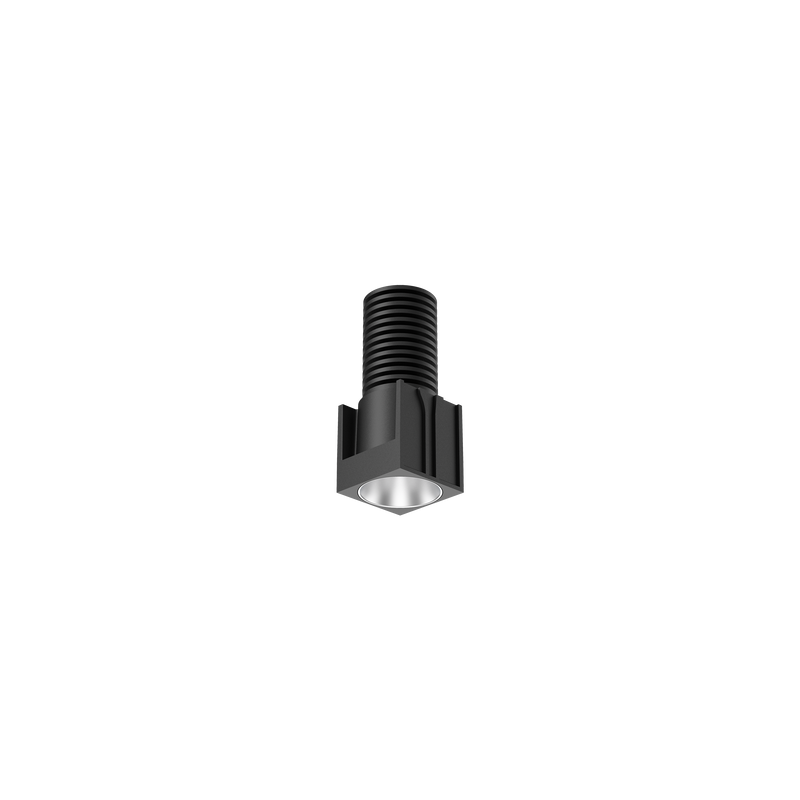

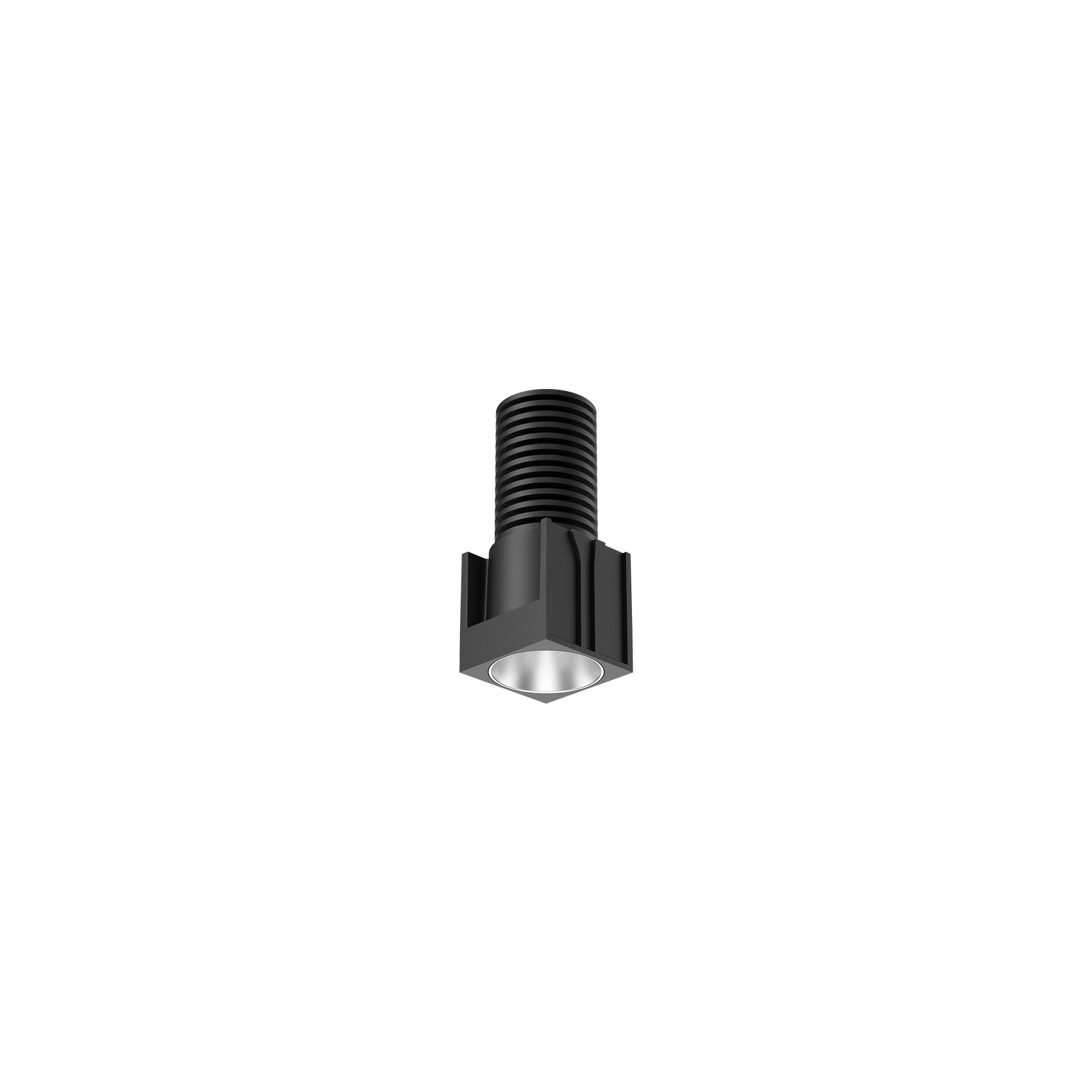

M41-T3-HO-BS3K-36D Cevon M41 Type 3-HO Dark Art Square Fixed High Output Black, Silver 3K
Lumens
Watts
600lm
6.5W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output Black, Silver 3K
Temp.
3000K Warm White
Lumens
600lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output White 3000K
Temp.
3000K
Lumens
600lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output White, Silver 3K
Temp.
3000K Warm White
Lumens
600lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square HO White, High Gloss Black 3K
Temp.
3000K
Lumens
570lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output White, Gold 3K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output White, Black 3K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square HO Black, High Gloss Black 3K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output Black, Gold 3K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M41-T3-HO
Cevon M41 Type 3-HO Dark Art Square Fixed High Output Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
Select Frame
Frame sold separately. Please select below.
F41-SQ
Cevon Type Recessed Square Frame for M41 Black
Cut out
54x 54mm
F41-SQ
Cevon Type Recessed Square Frame for M41 White
Cut out
54x 54mm
F41-SQ2
Cevon Type Recessed Rectangular Double Frame for M41 Black
Cut out
95x 54mm
F41-SQ2
Cevon Type Recessed Rectangular Double Frame for M41 White
Cut out
95x 54mm
F41-SQ3-B
Cevon Type Recessed Rectangular Triple Frame for M41 Black
Cut out
136x 54mm
F41-SQ3
Cevon Type Recessed Rectangular Triple Frame for M41 White
Cut out
136x 54mm
F41-SQ4
Cevon Type Recessed Rectangular Quad Frame for M41 Black
Cut out
178x 54mm
F41-SQ4
Cevon Type Recessed Rectangular Quad Frame for M41 White
Cut out
178 x 54mm
F41-TL-SQ
Cevon Type Trimless Square Frame for M41 Black
Cut out
56 x 54mm
F41-TL-SQ
Cevon Type Trimless Square Frame for M41 White
Cut out
56 x 54mm
F41-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M41 Black
Cut out
97x 54mm
F41-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M41 White
Cut out
97x 54mm
F41-TL-SQ3
Cevon Type Trimless Rectangular Triple Frame for M41 Black
Cut out
138 x 54mm
F41-TL-SQ3
Cevon Type Trimless Rectangular Triple Frame for M41 White
Cut out
138 x 54mm
F41-TL-SQ4
Cevon Type Trimless Rectangular Quad Frame for M41 Black
Cut out
179 x 54mm
F41-TL-SQ4
Cevon Type Trimless Rectangular Quad Frame for M41 White
Cut out
179 x 54mm
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W
120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
Black, Silver
Colour Temp
3000K Warm White
Watts
6.5W
Lumens
600lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
105mm
Width
40mm
Length
40mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
