R537
- Custom Build - Request Availability
Configure your R537 18 options
- White
- White, Silver
- White, Gold
- White, Black
- White, High Gloss Black
- Black
- Black, Silver (selected)
- Black, Gold
- Black, High Gloss Black

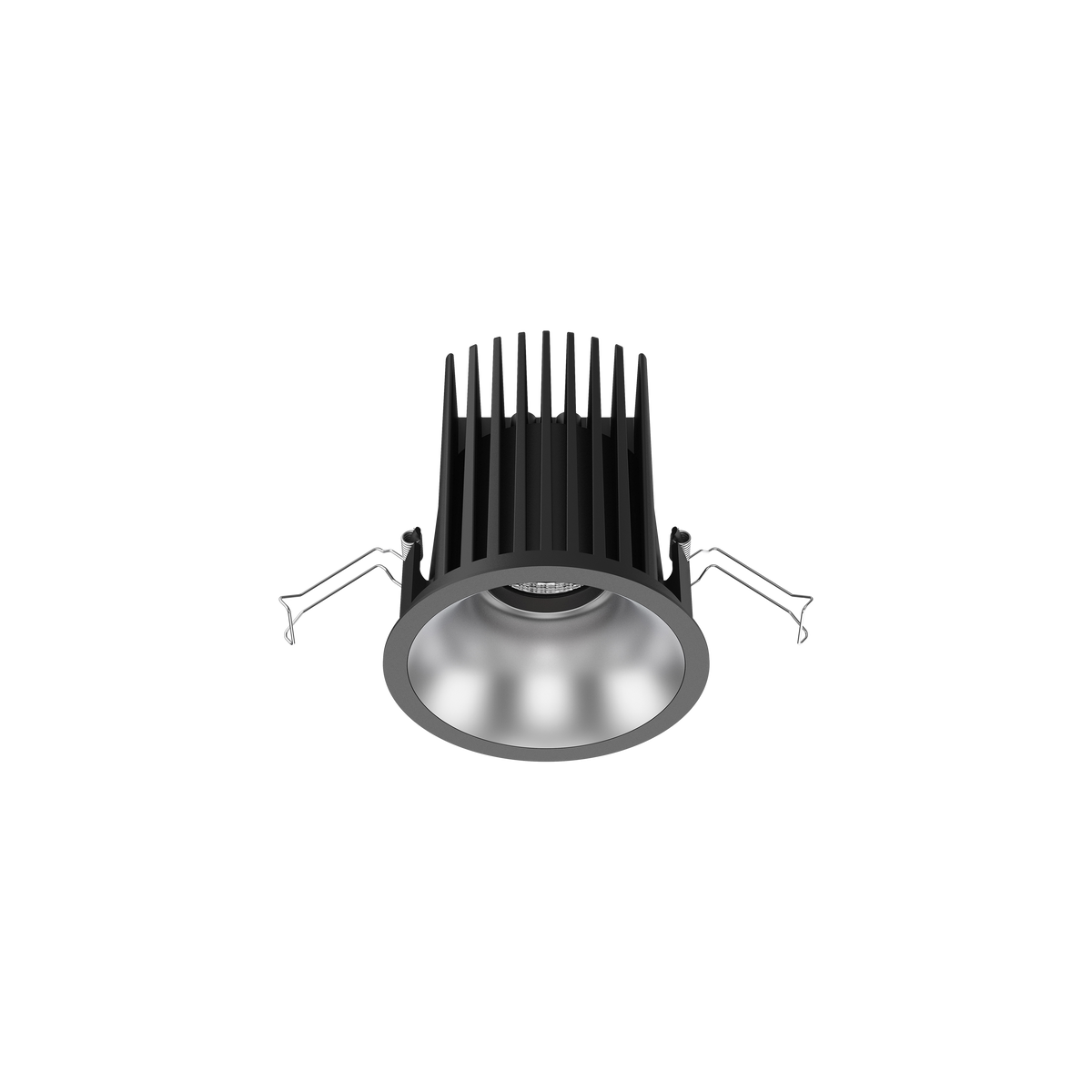

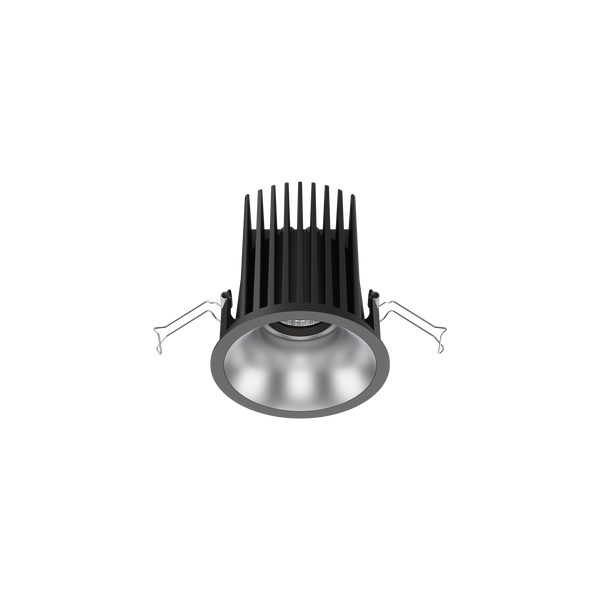

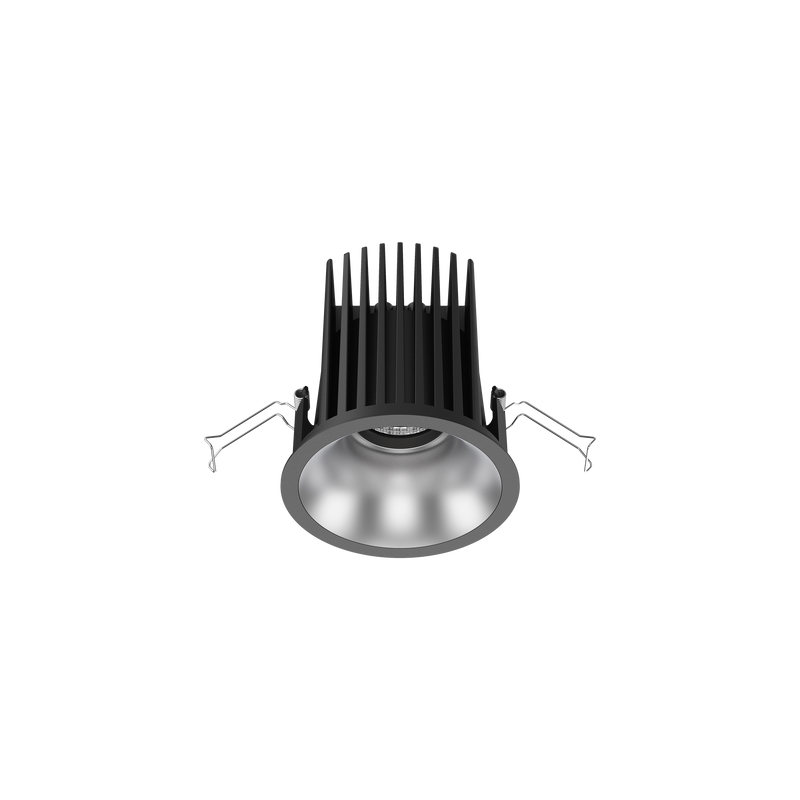

R537-BS4K-D-40D Cevon Large Darklight Slim Trim Downlight Kit Black, Silver 4000K
Lumens
Watts
1650lm
20W
DCC500-DX-30W 500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Watts
15W-30W
Select Downlights
Cevon Large Darklight Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1480lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1650lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1480lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Silver 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1650lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1450lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Gold 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1540lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Black 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1345lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit White, Black 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1460lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1340lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight White, High Gloss Black 4K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1500lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1345lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1460lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1480lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black, Silver 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1650lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1450lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Kit Black, Gold 4000K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1540lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Black, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
100mm
Lumens
1340lm
Watts
20W
Cevon Large Darklight Slim Trim Downlight Black, High Gloss Black 4K
Temp.
4000K Natural White
Cut out
100mm
Lumens
1500lm
Watts
20W
Specifications
R537-BS4K-D-40D
Cut Out
100mm
Finish
Black, Silver
Colour Temp
4000K Natural White
Watts
20W
Lumens
1650lm
Beam Angle
40°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
106mm
Height
110mm
Binning
SDCM 2
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
25mm
Side Clearance to Building Elements
25mm
Material
Aluminium, Glass
Electrical Class
Class II
Driver Output Current
500mA
Driver
Included, Remote
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Specifications
DCC500-DX-30W
Watts
15W-30W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
24mm
Width
52mm
Length
166mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
