R250-W457KA-110V
R250
- Custom Build - Request Availability

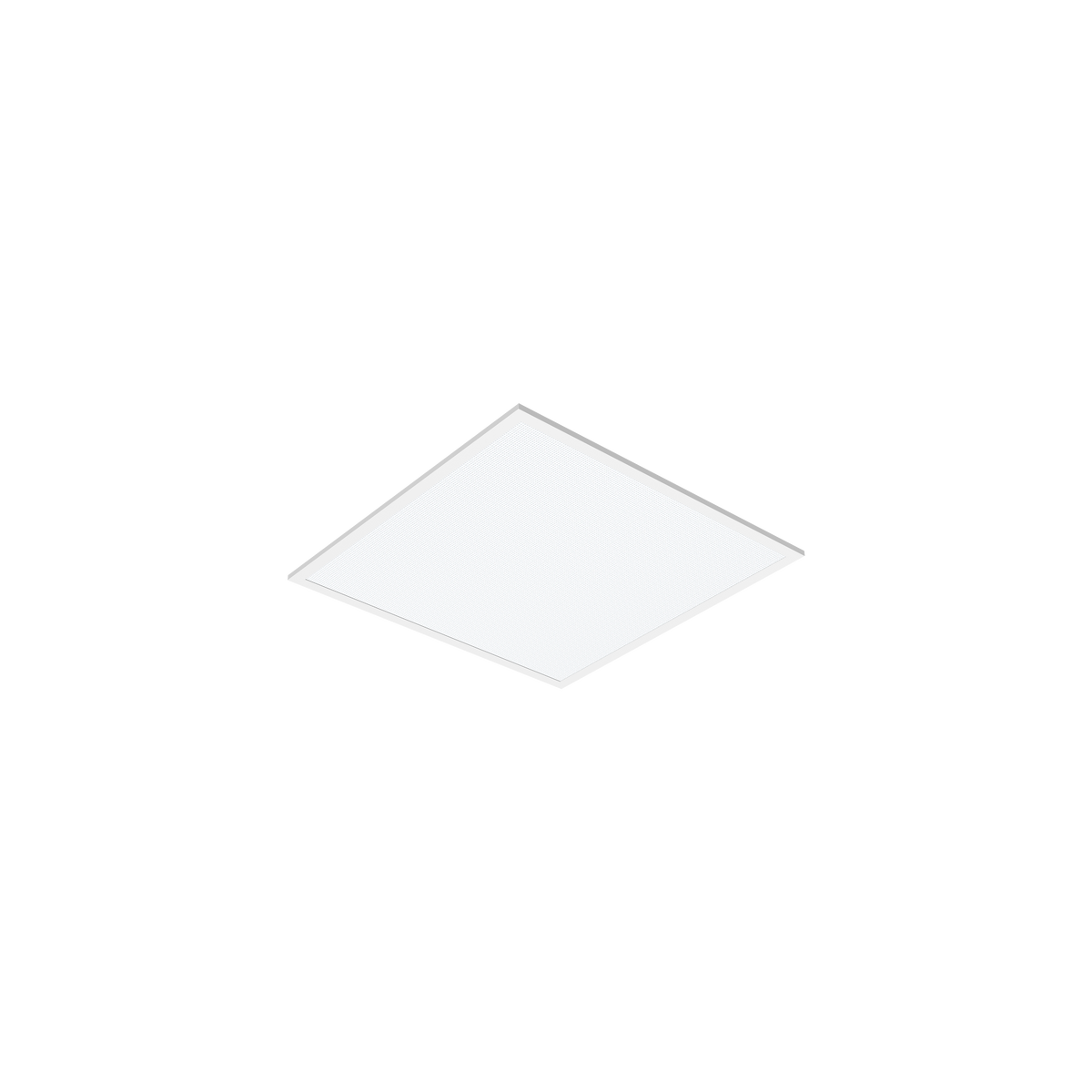

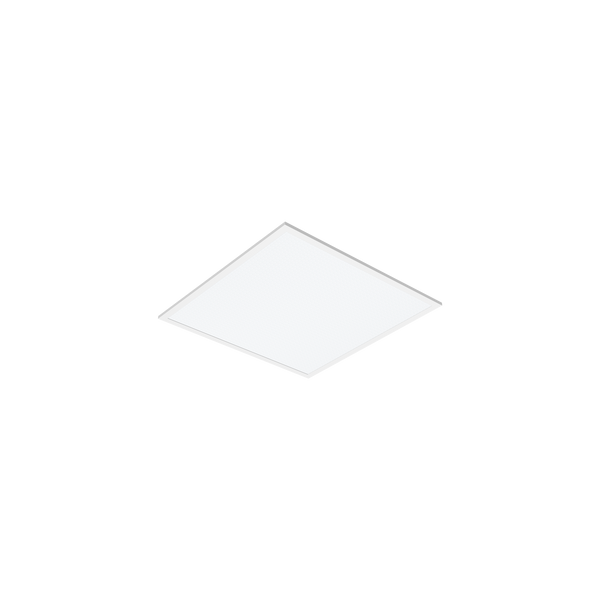

R250-W457KA-110V 6x6 1-10V Proline Panel V2 - 4K/57K White
Lumens
Watts
4095lm
39W
View Options
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
R250
6x6 1-10V Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4095lm
Watts
39W
R250
6x6 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
R250
6x6 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
R250
6x6 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R250
6x6 1-10V Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4095lm
Watts
39W
Specifications
Finish
White
Colour Temp
4000K or 5700K (Selectable)
Watts
39W
Lumens
4095lm
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
1-10V Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
RAL Colour
RAL9016
Height
33mm
Width
595mm
Length
595mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Output Current
1000mA
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Power Factor
0.90
Warranty
5 Year Warranty
Resources
