EVO-EN-705
- Custom Build - Request Availability
Configure your EVO-EN-705 2 options
- Black (selected)
- White
EVO-EN-705-B34K-DD EVO End 705mm Black
Lumens
Watts
2415lm (See spec sheet)
23W
-
EVO Ceiling Rose
-
EVO Individual Suspension
-
EVO Ceiling Mount (Pair)
-
EVO 90° L Join White
-
EVO 120° L Join White
-
EVO 120° Y Join White
-
EVO Micro-prismatic Diffuser - 5m roll
-
EVO Micro-prismatic Diffuser - 10m roll
-
EVO Micro-prismatic Diffuser - 15m roll
-
EVO Micro-prismatic Diffuser - 20m roll
-
EVO Micro-prismatic Diffuser - 25m roll
-
EVO Opal Diffuser - 5m roll
-
EVO Opal Diffuser - 10m roll
-
EVO Opal Diffuser - 15m roll
-
EVO Opal Diffuser - 20m roll
-
EVO Opal Diffuser - 25m roll
Select Linear Systems
EVO-EN-705

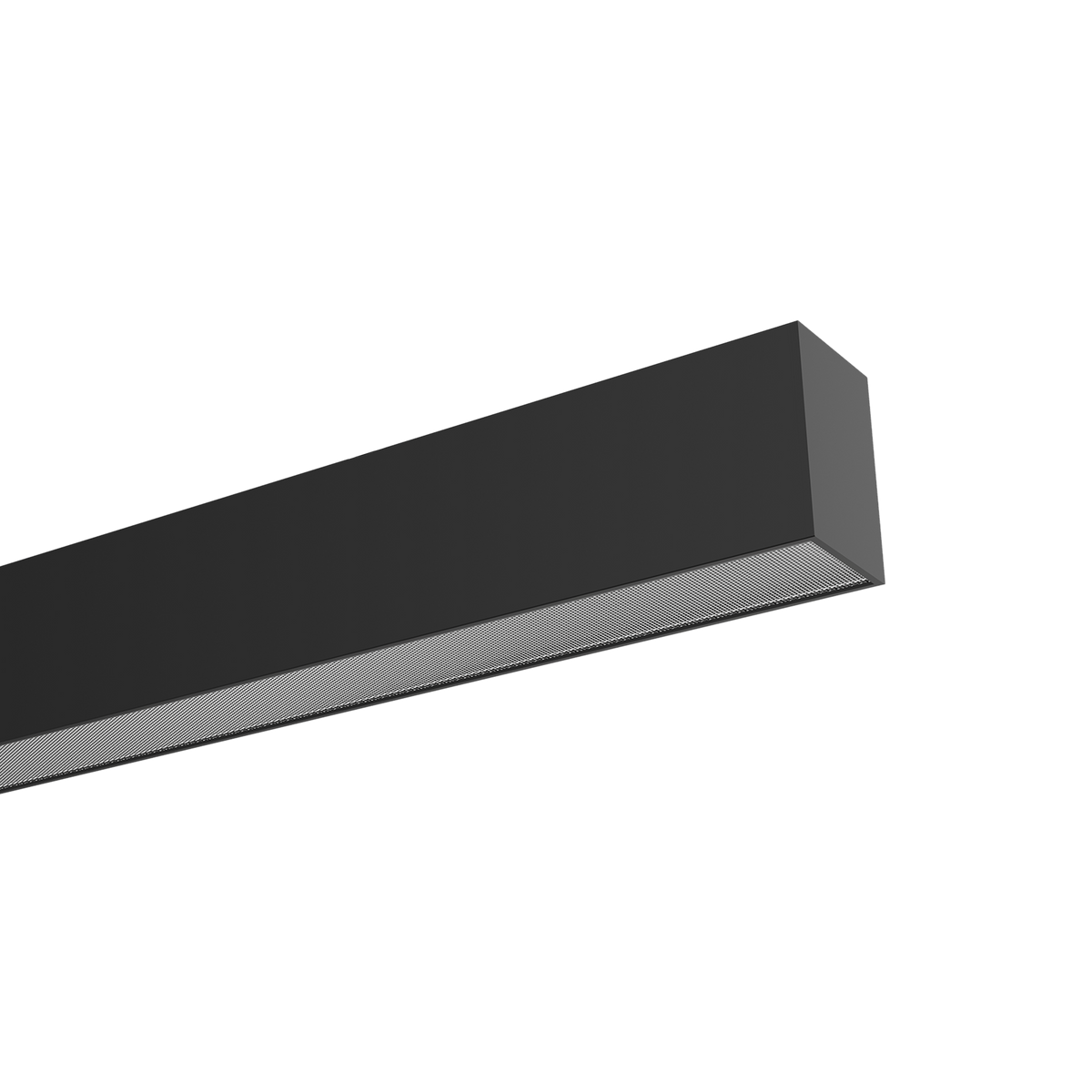

EVO End 705mm Black
Temp.
3000K or 4000K (Selectable)
Lumens
2415lm (See spec sheet)
Watts
23W
EVO-EN-705
EVO End 705mm White
Temp.
3000K or 4000K (Selectable)
Lumens
2415lm (See spec sheet)
Watts
23W
Specifications
EVO-EN-705-B34K-DD
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
23W
Lumens
2415lm (See spec sheet)
Beam Angle
80° Direct (Down), 100° Indirect (Up)
Input
220-240V 50/60Hz
Dimming / Control
3-in-1: Non-dimmable, Dali or SwitchDIM
CRI
90
Lifespan
102,000hrs (L80 B10)
Ingress Protection
IP20
Height
82mm
Width
58mm
Length
705mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Aluminium and Micro-prismatic diffuser (Opal diffuser also available)
Electrical Class
Class I luminaire, requires earth
Driver
Included, Incorporated
Impact Rating
IK08
Installation Note
Maximum continuous run length for a single power feed is 22m. Use a Middle Start (MST) module to extend continuous run length beyond 22m.
Warranty
5 Year Warranty
