LED612
- Checking stock...
Configure your LED612 4 options

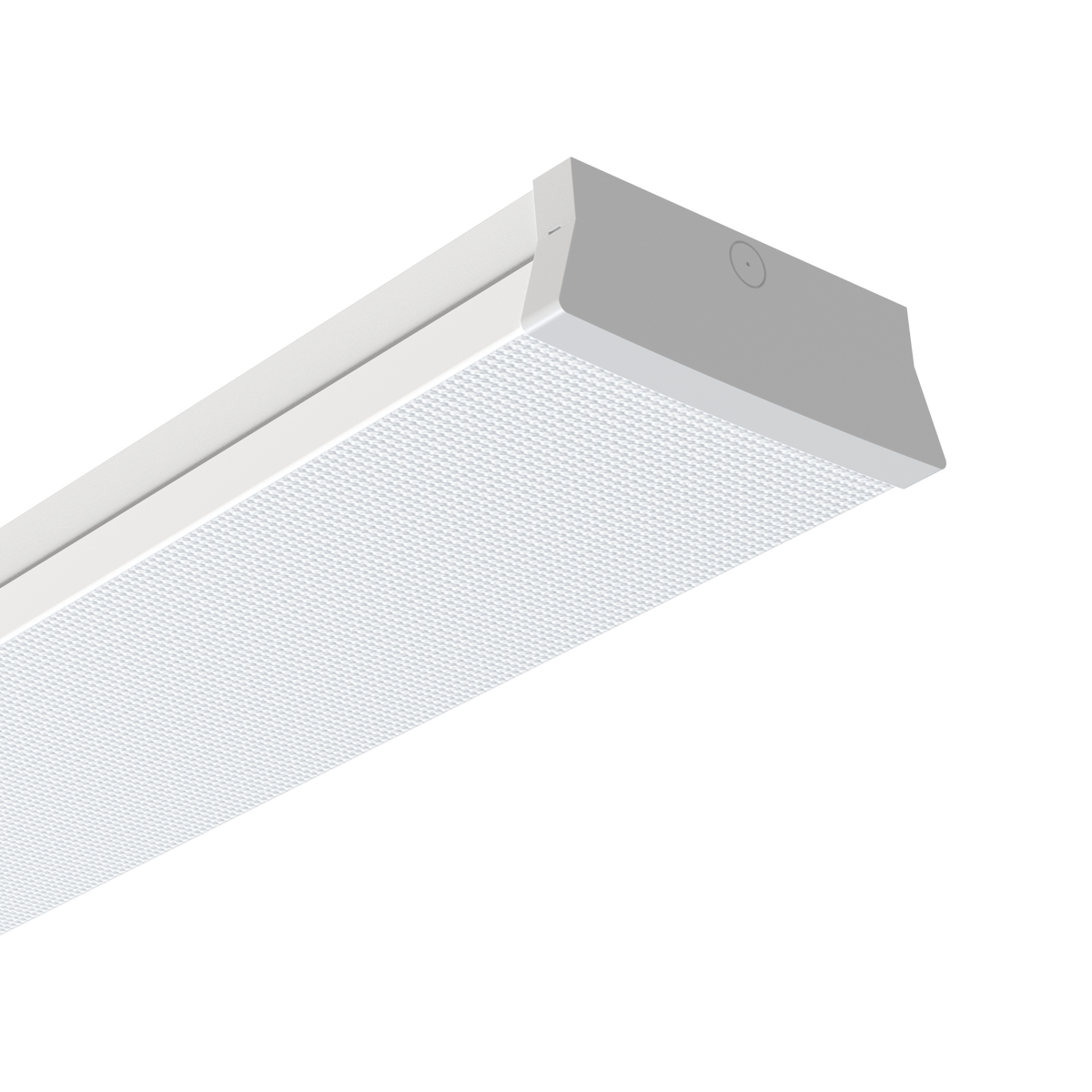

LED612-W34KA Genesis 1220mm Batten Standard 3000K / 4000K
Lumens
Watts
2700lm, 3350lm, 3960lm or 4500lm (Selectable)
20W, 25W, 30W or 35W
Select Battens
LED612
Genesis 1220mm Batten Standard 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2700lm, 3350lm, 3960lm or 4500lm (Selectable)
Watts
20W, 25W, 30W or 35W
LED612
Genesis 1220mm Batten Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3550lm, 4000lm, 4250lm or 4700lm (Selectable)
Watts
30W, 34W, 36W or 40W
LED612
Genesis 1220mm Batten Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4500lm
Watts
35W
LED612
Genesis 1220mm 3K/4K Batten Emergency 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3100lm, 3800lm, 4000lm or 4700lm (Selectable)
Watts
28W, 34W, 36W or 42W
Specifications
LED612-W34KA
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
20W, 25W, 30W or 35W
Lumens
2700lm, 3350lm, 3960lm or 4500lm (Selectable)
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
70,000hrs (L80 B50)
Ingress Protection
IP54
Height
72mm
Width
210mm
Length
1220mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Steel, PC
Electrical Class
Class I luminaire, requires earth
Driver
Included, Incorporated
Ambient Operating Temperature
-20..+45°C
Weight
3.35kg
Power Factor
0.95
Impact Rating
IK05
Warranty
5 Year Warranty
