EX901
- Checking stock...
Configure your EX901 2 options
- White
- Black (selected)

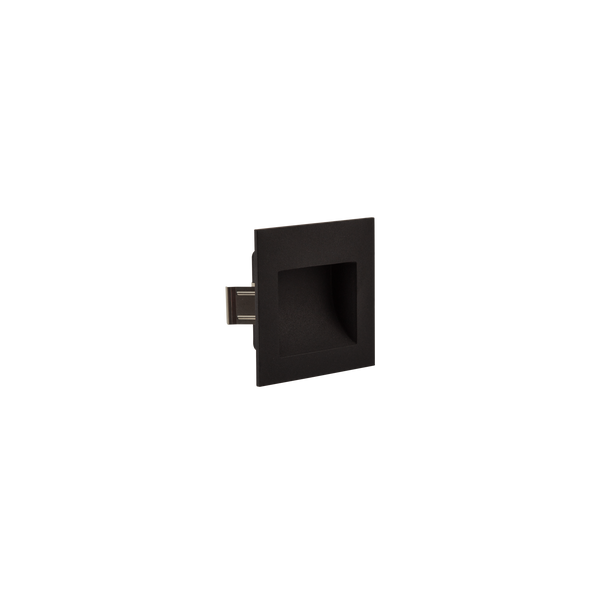

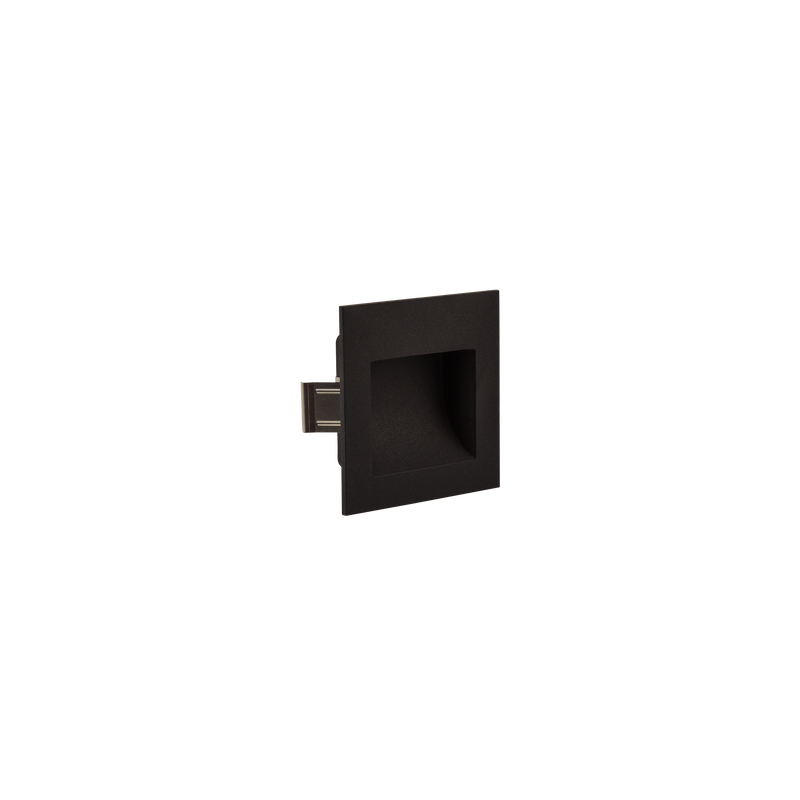

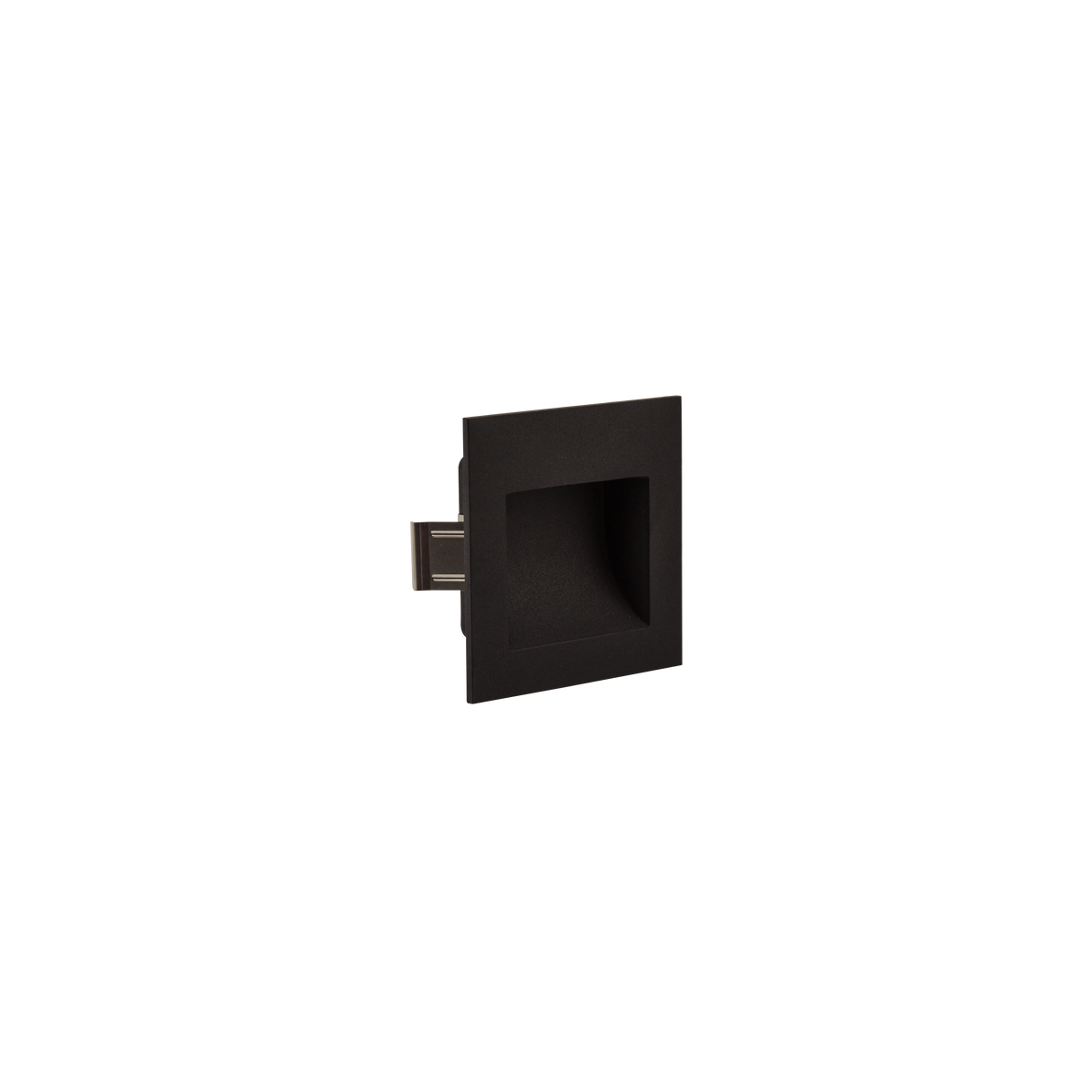

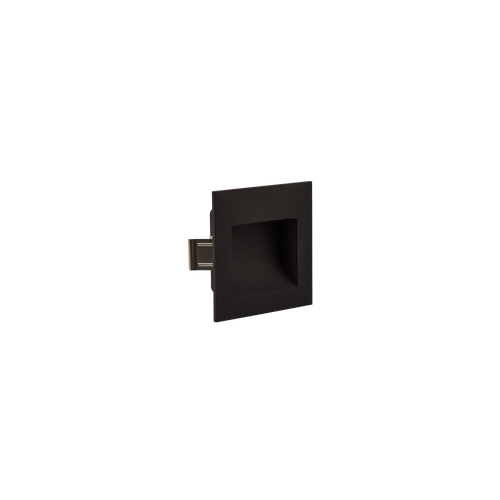

EX901-B27K Scoop Square Recessed Wall/Concrete Matt Textured Black 2700K
Lumens
Watts
90lm
3W
Not included
Please select from options
Select Step
EX901

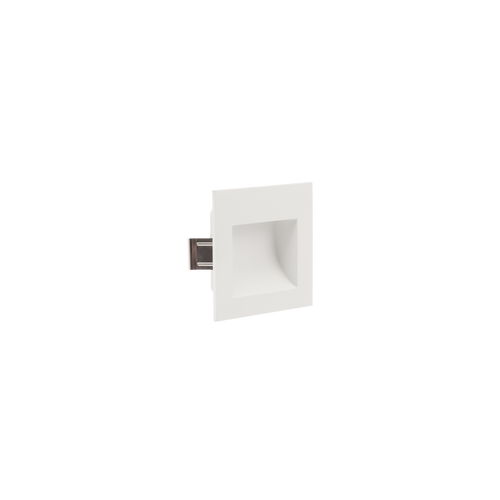

Scoop Square Recessed Wall/Concrete White 2700K
Temp.
2700K Warm White
Cut out
72 x 72mm
Lumens
145lm
Watts
3W
EX901
Scoop Square Recessed Wall/Concrete Matt Textured Black 2700K
Temp.
2700K Warm White
Cut out
72 x 72mm
Lumens
90lm
Watts
3W
Select driver
driver sold separately. Please select below.
Non Dimmable
DCV24-40W-IP
IP67 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-60W-IP-V2
IP67 24V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
Specifications
EX901-B27K
Cut Out
72 x 72mm
Finish
Black
Colour Temp
2700K Warm White
Watts
3W
Lumens
90lm
Beam Angle
120°
Input
24V DC
Dimming / Control
TRIAC (phase-cut) dimming only, not compatible with PWM
CRI
80
Lifespan
50,000hrs (L70)
Ingress Protection
IP65
Depth
36mm
Width
90mm
Length
90mm
Binning
SDCM 5
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver
Not included, Driver sold separately
Installation Note
TRIAC (phase-cut) dimming only, not compatible with PWM
Warranty
5 Year Warranty
