R870-W3K-70D
R870
- Checking stock...

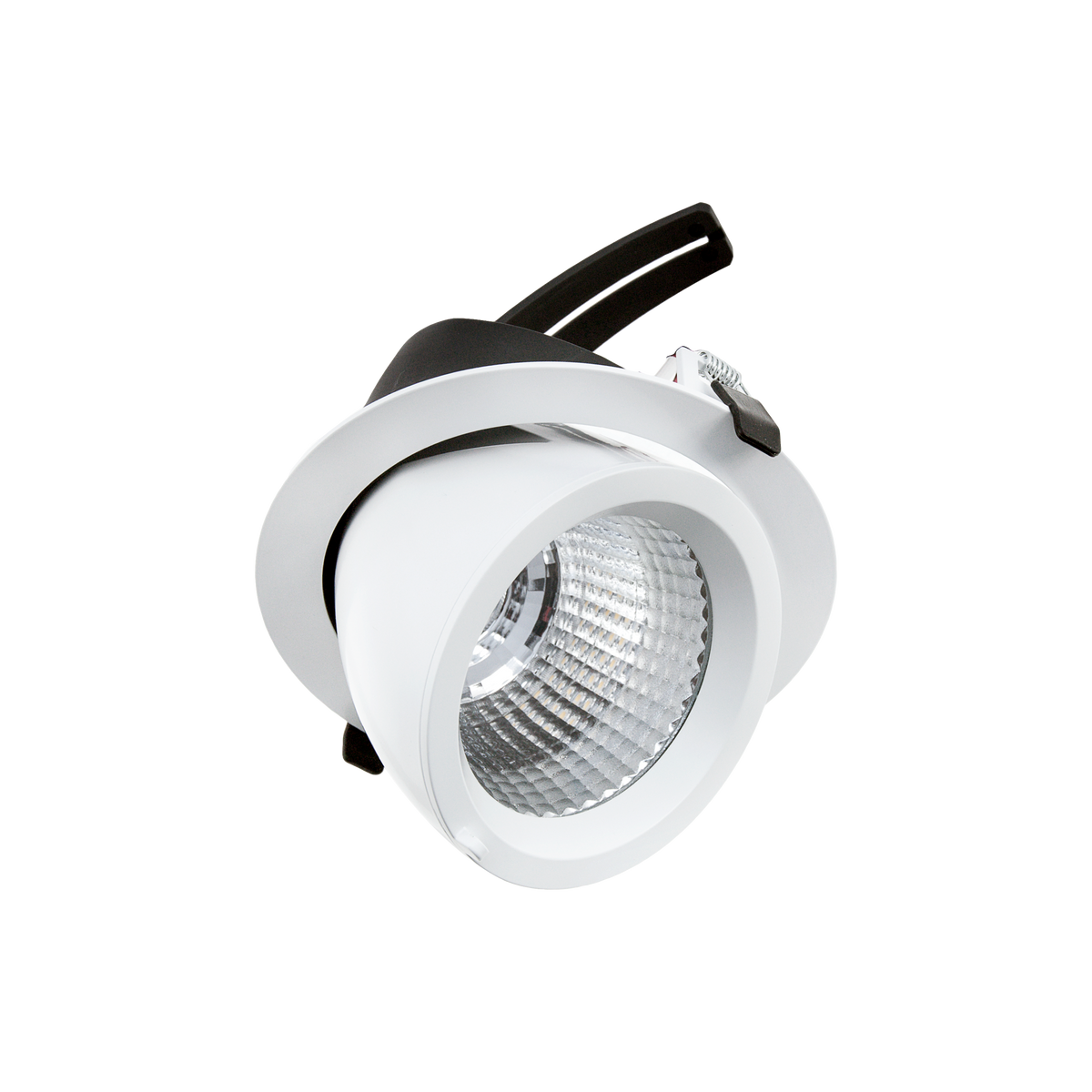

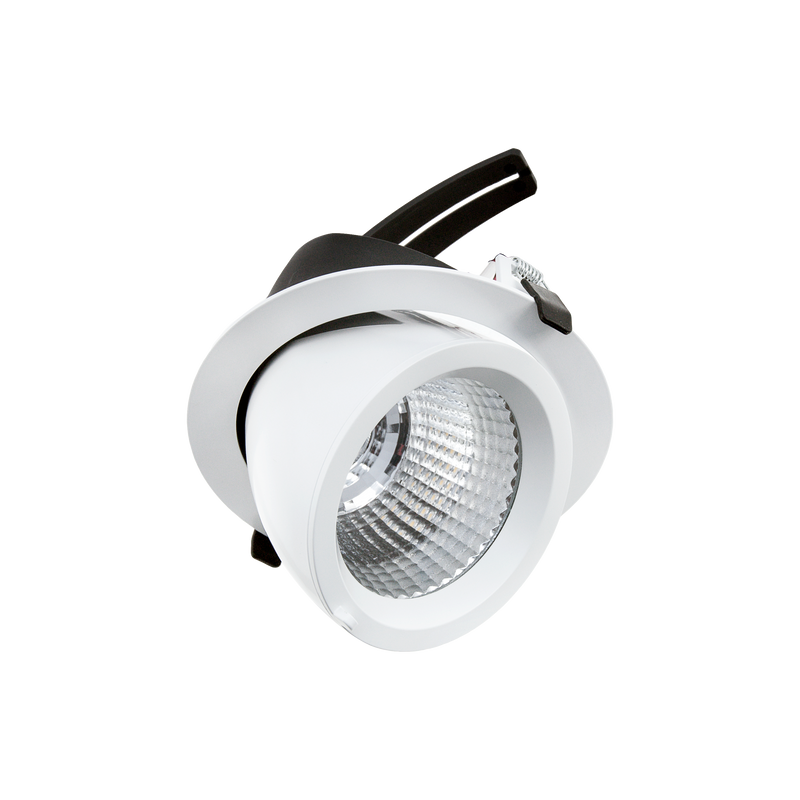

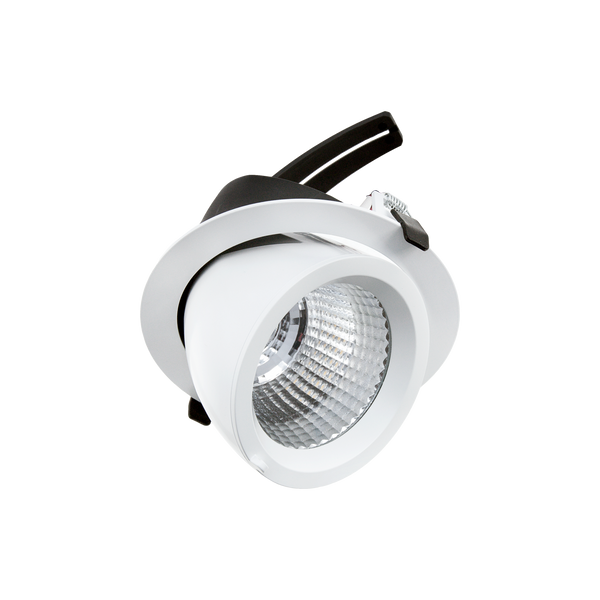

R870-W3K-70D Drop Tilt/Rotate X-Large Downlight White 3000K
Lumens
Watts
Tilt Angle
3800lm
32W
-15° to 45°
View Options
Add Driver
driver not included
View Options
-
20° Reflector (for R853 or R854)
-
40° Reflector (for R853 or R854)
Select Downlights
R870
Drop Tilt/Rotate X-Large Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø175mm
Lumens
3800lm
Rotate Angle
355°
Watts
32W
R870
Drop Tilt/Rotate X-Large Downlight White 4K
Temp.
4000K Natural White
Tilt Angle
-15° to 45°
Cut out
Ø175mm
Lumens
3950lm
Rotate Angle
355°
Watts
32W
Select driver
driver sold separately. Please select below.
Dimmable

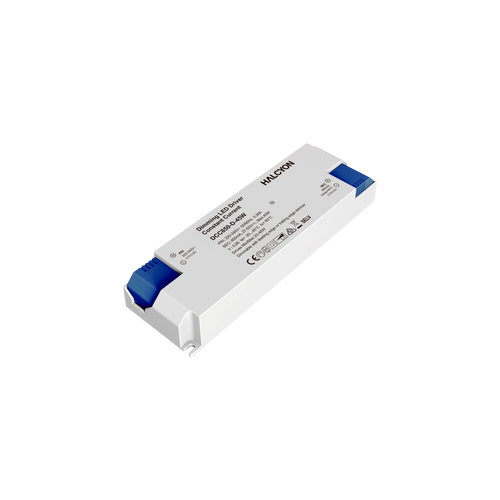

DCC850-D-45W
850mA 45W Constant Current Phase-cut Dimmable Driver
Watts
23W-45W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
32W
Lumens
3800lm
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Lifespan
83,000hrs (L80 B50)
Tilt Angle
-15° to 45°
Rotate Angle
355°
Cut Out
Ø175mm
Diameter
188mm
Height
165mm
Binning
SDCM 3
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
900mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
Downloads
