R865
- Checking stock...
Configure your R865 2 options
- White
- Black (selected)
R865 BWL Drop Tilt/Rotate Mini Downlight Black 3000K
Lumens
Watts
Tilt Angle
850lm
9W
45°
Not included
Please select from options
-
24° Reflector (for R865)
-
36° Reflector (for R865)
Select Downlights

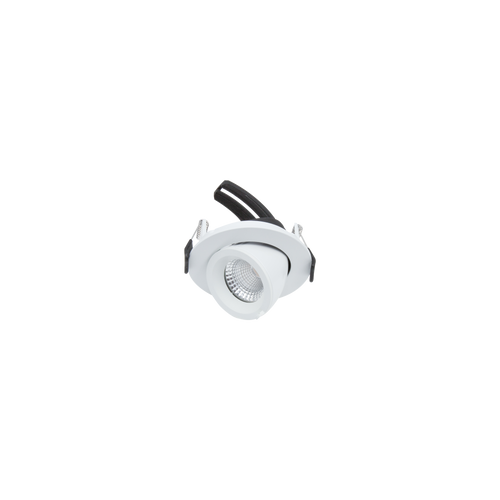

Drop Tilt/Rotate Mini Downlight White 3K
Temp.
3000K Warm White
Tilt Angle
-15° to 45°
Cut out
Ø75mm
Lumens
800lm
Rotate Angle
355°
Watts
6W

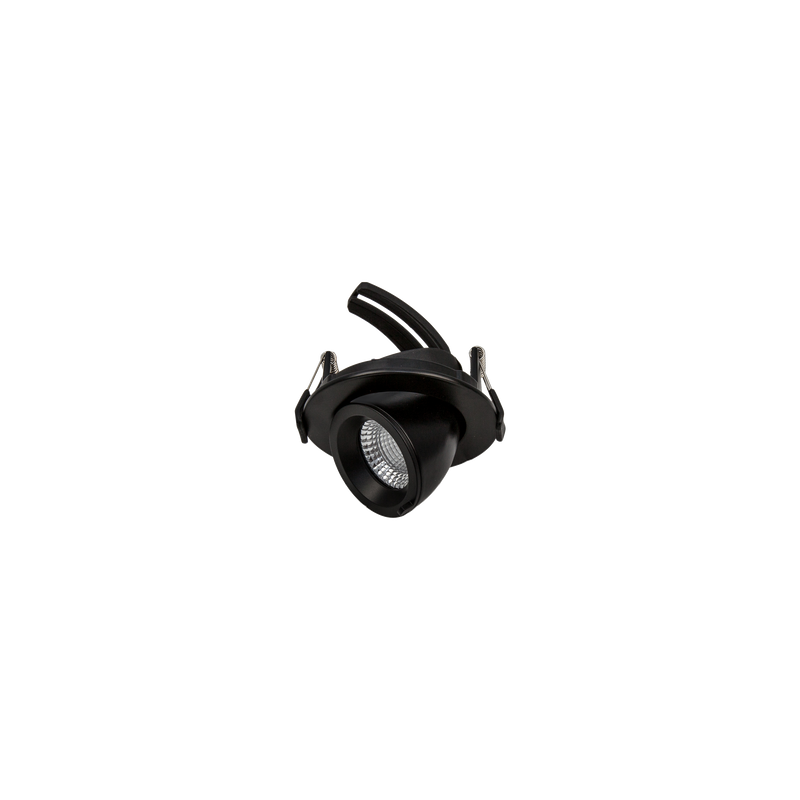

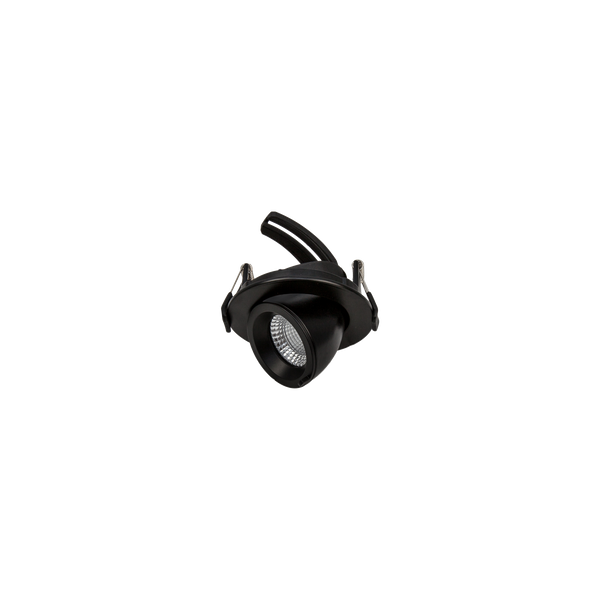

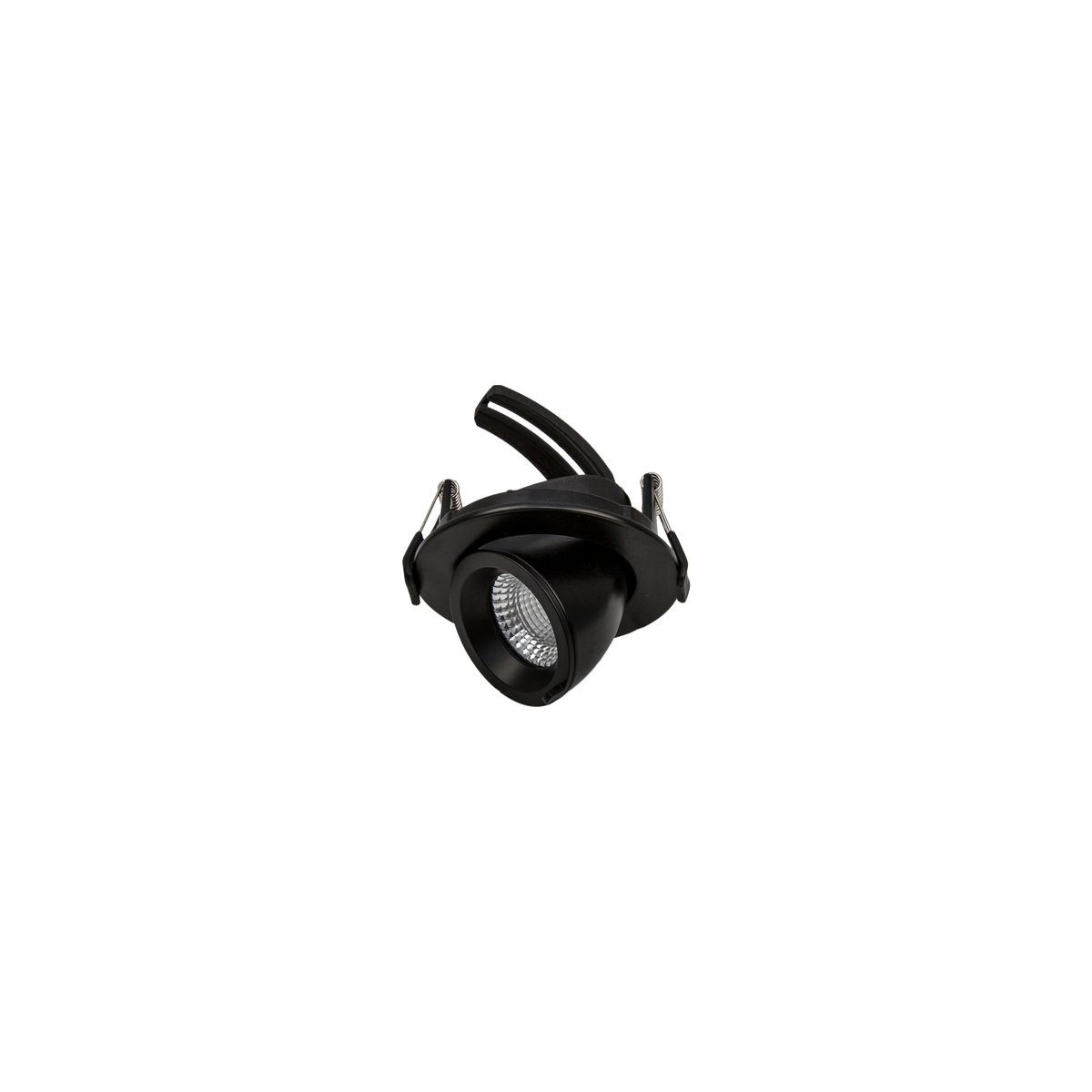

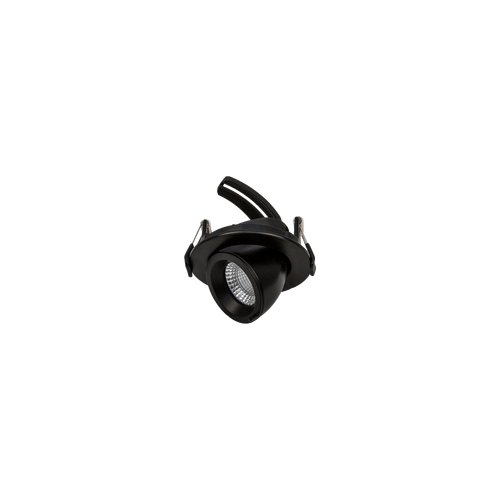

Drop Tilt/Rotate Mini Downlight Black 3000K
Temp.
3000K Warm White
Tilt Angle
45°
Cut out
75mm
Lumens
850lm
Rotate Angle
355°
Watts
9W
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-12W

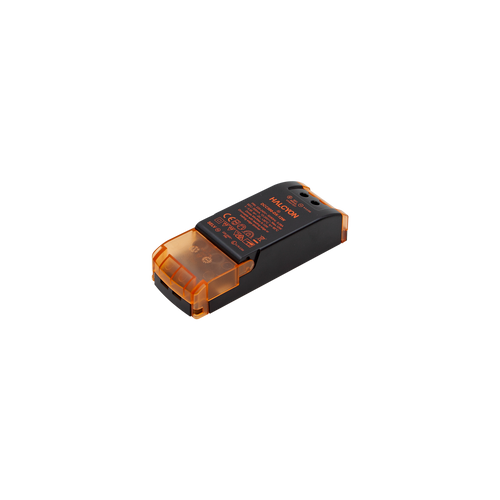

500mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Non Dimmable
DCC500-20W
500mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
R865 BWL
Cut Out
75mm
Finish
Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
850lm
Beam Angle
50°
Input
500mA
Dimming / Control
Dimmable
CRI
90
Tilt Angle
45°
Rotate Angle
355°
Lifespan
40,000hrs
Ingress Protection
IP20
Diameter
85mm
Height
63mm
Binning
SDCM 3
Classification
IC/CA135
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
500mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
None
