R849

  • Checking stock...
Downlight LED Recessed Square c/w UID Dim Dri 20W 350mA CC 3K-White
Downlights

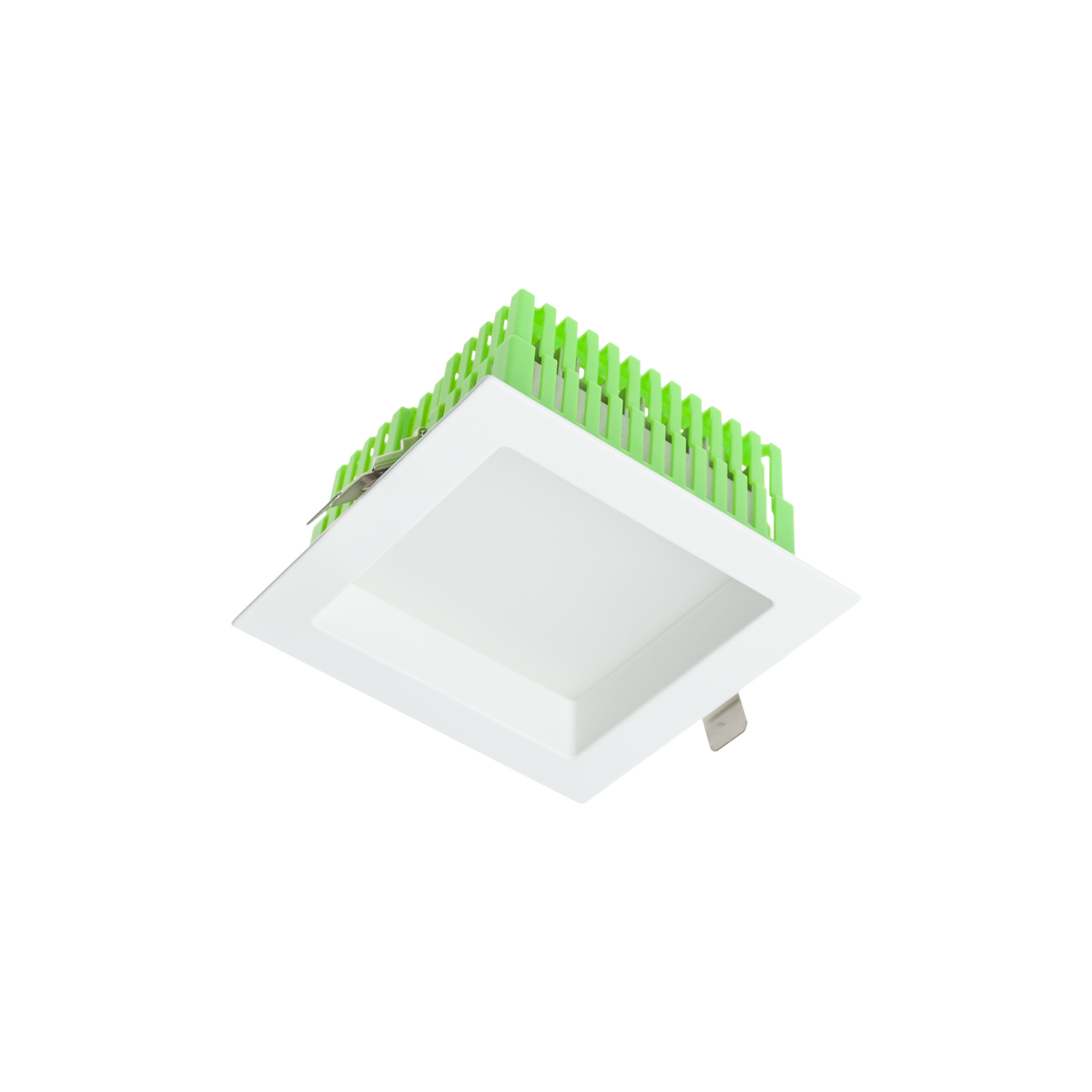

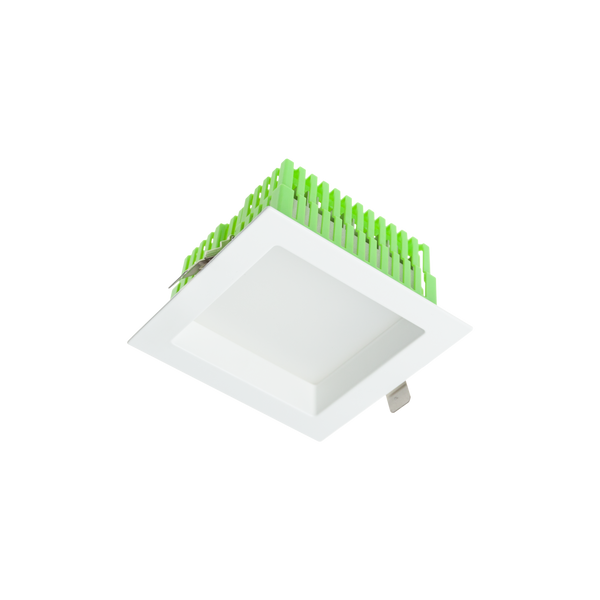

Square Large Downlight Kit White 3000K

R849 KWWUDL Square Large Downlight Kit White 3000K

Lumens

Watts

1600lm

20W

Lumens

Watts

1600lm

20W

Driver
350mA 28W  Dimmable Constant Current DX Series Driver

DCC350-DX-28W

Watts

14W-28W

Watts

14W-28W

Add to

Select driver

driver sold separately. Please select below.

Specifications

Square Large Downlight Kit White 3000K

Downlights

R849 KWWUDL

Finish

White

Colour Temp

3000K

Watts

20W

Lumens

1600lm

Beam Angle

90°

Input

350mA

Dimming / Control

Dimmable

CRI

90

Lifespan

50,000hrs

Ingress Protection

IP54

Cut Out

125 x 125mm

Height

73mm

Width

150mm

Length

150mm

Binning

SDCM 5

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

IC

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium

Electrical Class

Class II

Driver Output Current

350mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

350mA 28W  Dimmable Constant Current DX Series Driver

Driver

350mA 28W Dimmable Constant Current DX Series Driver

Watts

14W-28W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Height

24mm

Width

50mm

Length

142mm
