Recessed Downlight 34W Select 3000K/4000K IP44 C/W Dimmable Driver 700mA CC - White
Downlights
Retrofit XXL Select Downlight Kit White 3000K / 4000K

R768 W34 Retrofit XXL Select Downlight Kit White 3000K / 4000K

Lumens

Watts

3600lm (See spec sheet)

34W

Lumens

Watts

3600lm (See spec sheet)

34W

Driver
700mA 40W Constant Current Phase-cut Dimmable Driver

DCC700-D-40W

Watts

19.6W-40W

Watts

19.6W-40W

Add to

Select driver

driver sold separately. Please select below.

Specifications

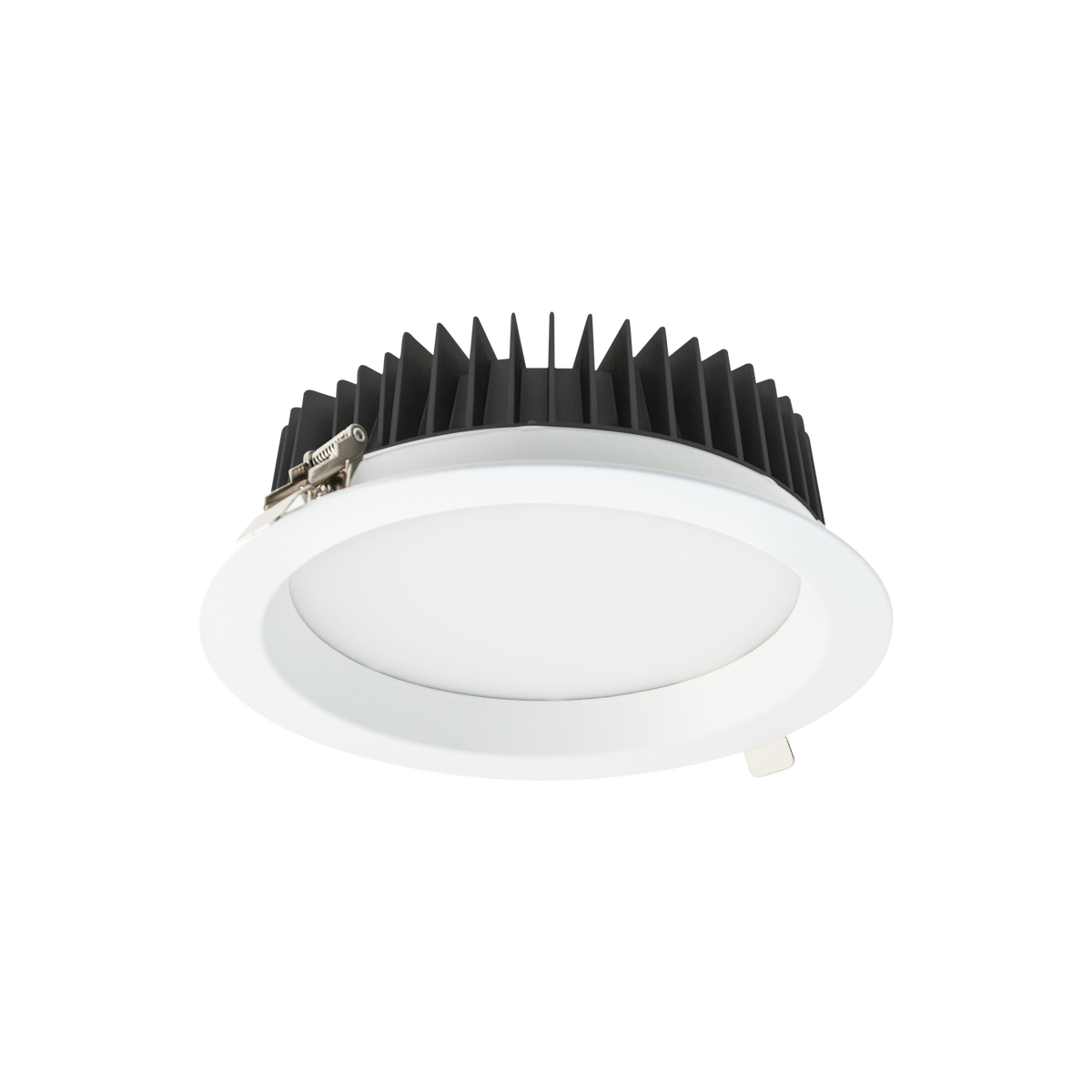

Retrofit XXL Select Downlight Kit White 3000K / 4000K

Downlights

R768 W34

Finish

White

Colour Temp

3000K or 4000K (Selectable)

Watts

34W

Lumens

3600lm (See spec sheet)

Beam Angle

100°

Input

240V

Dimming / Control

Phase-Cut Dimmable

CRI

90

Lifespan

60,000hrs (L80 B10)

Ingress Protection

IP44

Cut Out

195mm

Diameter

225mm

Height

78mm

Binning

SDCM 3

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

Non IC

Height Clearance to Building Elements

50mm

Side Clearance to Building Elements

50mm

Material

Aluminium

Electrical Class

Class II

Driver Output Current

700mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

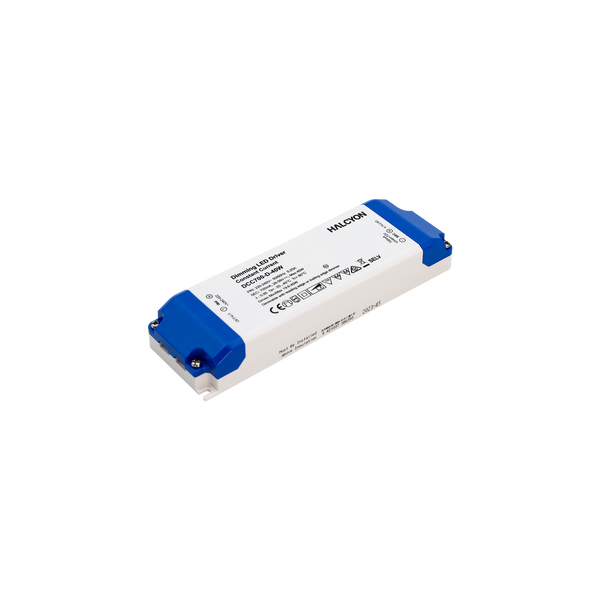

700mA 40W Constant Current Phase-cut Dimmable Driver

Driver

700mA 40W Constant Current Phase-cut Dimmable Driver

Watts

19.6W-40W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

25mm

Width

52mm

Length

166mm
