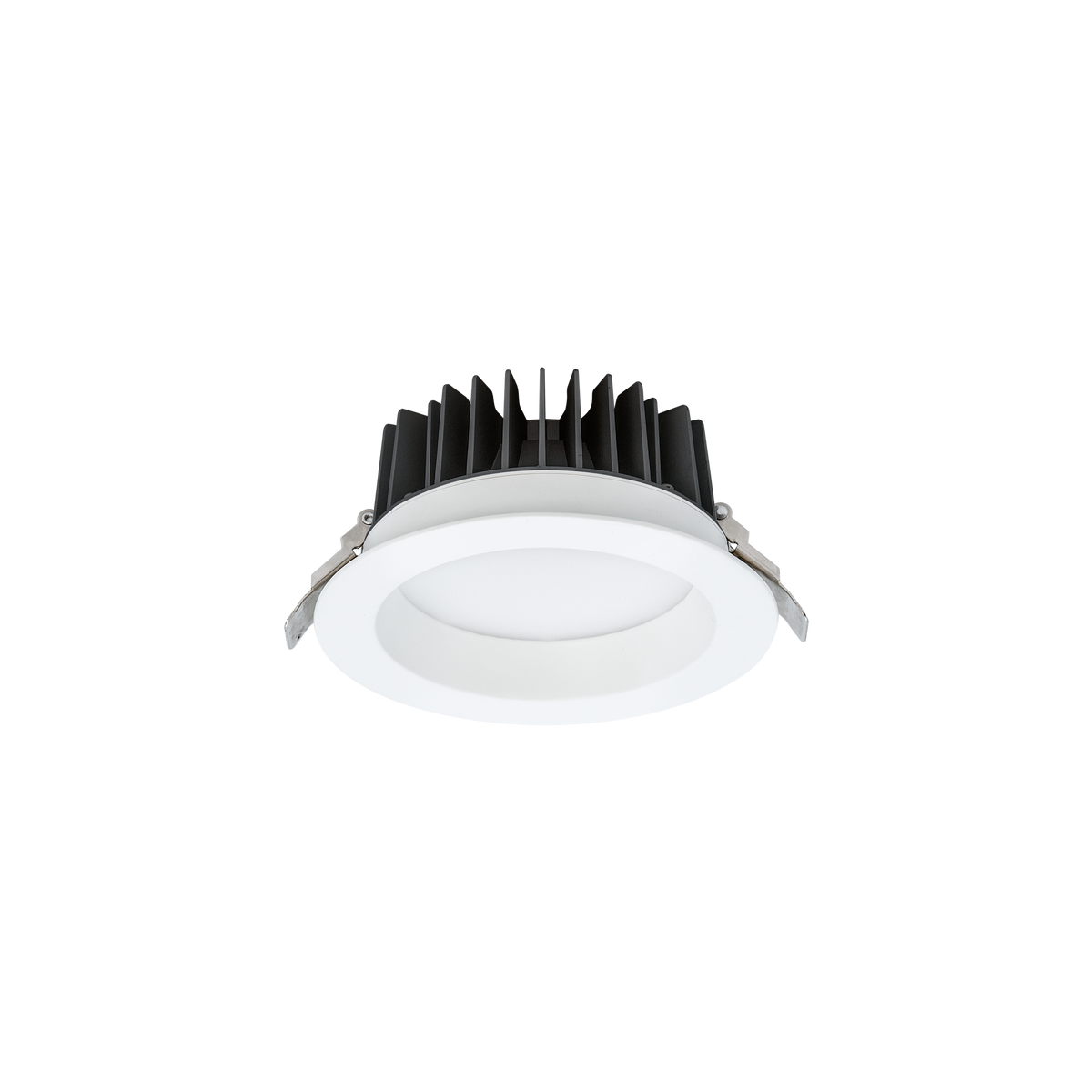

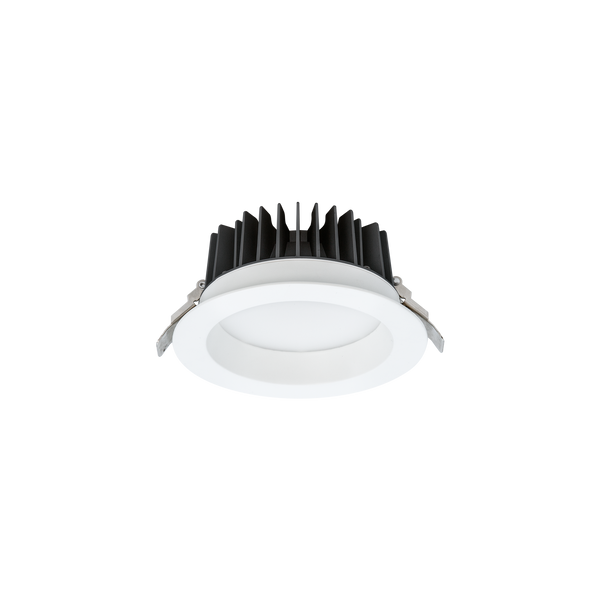

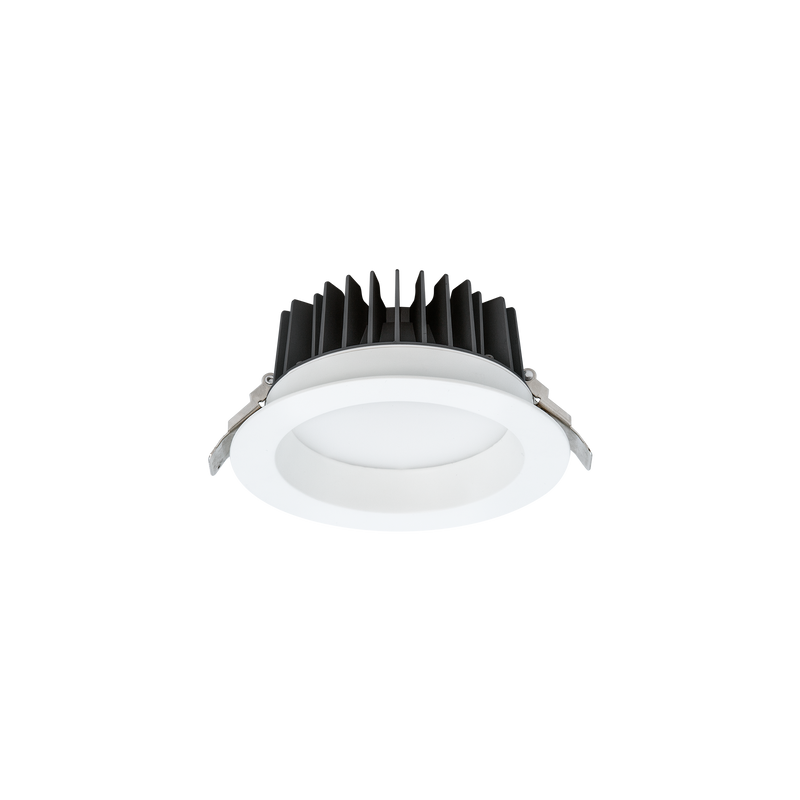

R766 W34 Retrofit Large High Output Downlight Kit White 3000K / 4000K
Lumens
Watts
1350lm (See spec sheet)
15W
Lumens
Watts
1350lm (See spec sheet)
15W
DCC350-DX-20W
Watts
10W-20W
Watts
10W-20W
Specifications
Finish
White
Colour Temp
Selectable 3000K Warm White or 4000K Natural White
Watts
15W
Lumens
1350lm (See spec sheet)
Beam Angle
90°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP44
Cut Out
125-135mm
Diameter
150mm
Height
65mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Downloads
