R747 W3K
R747
- Checking stock...

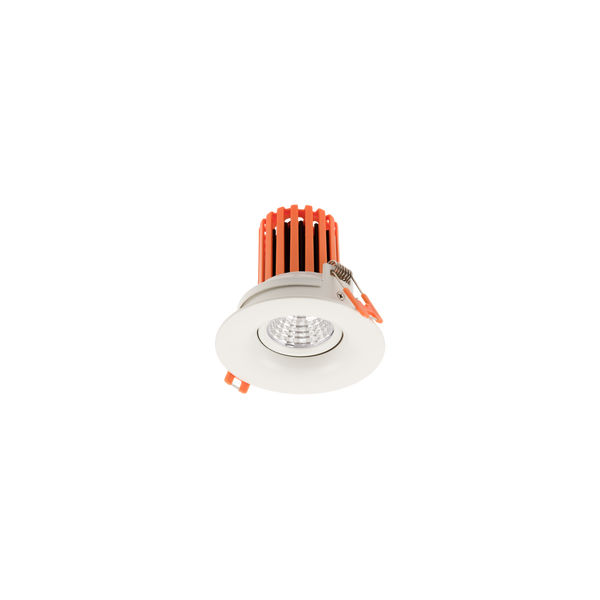

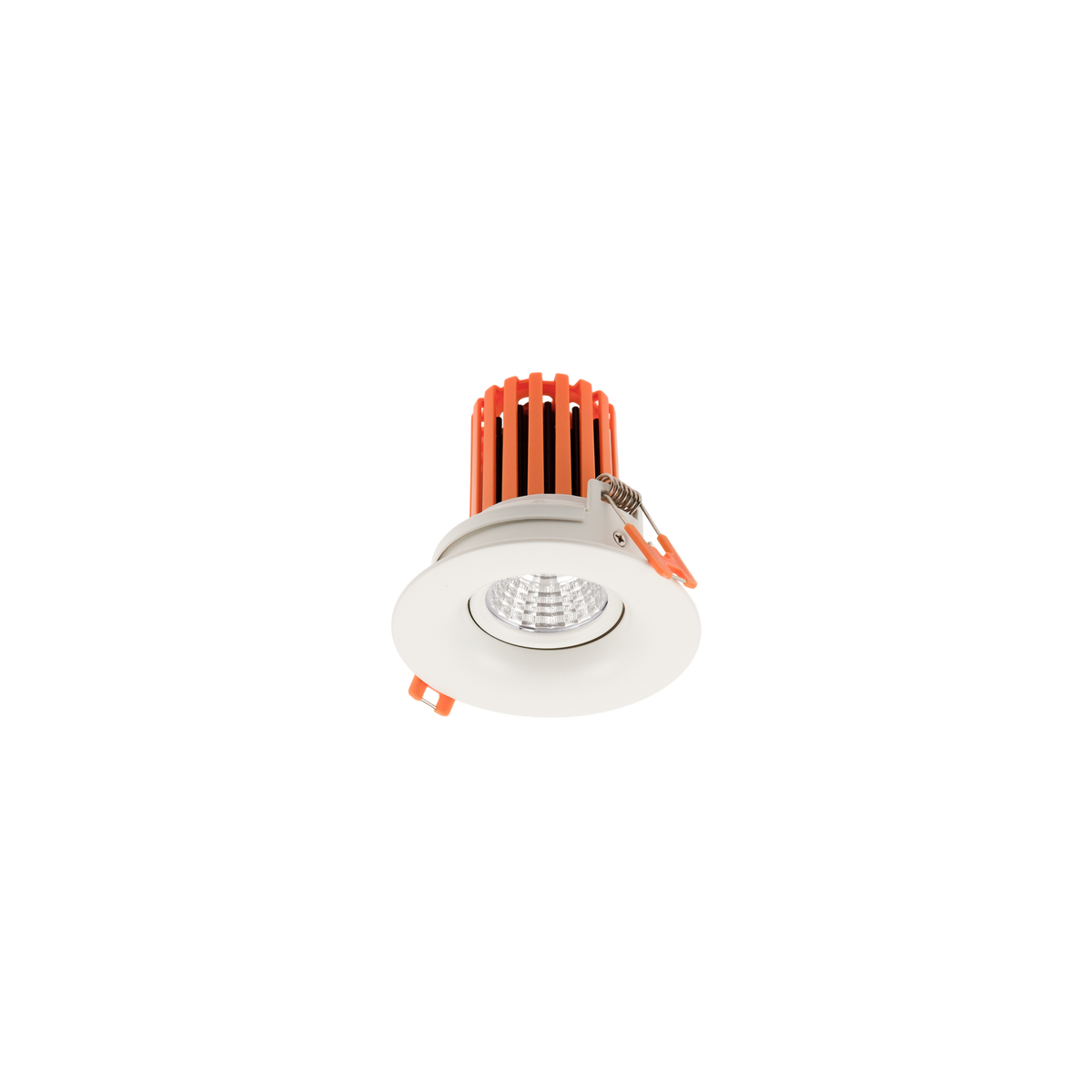

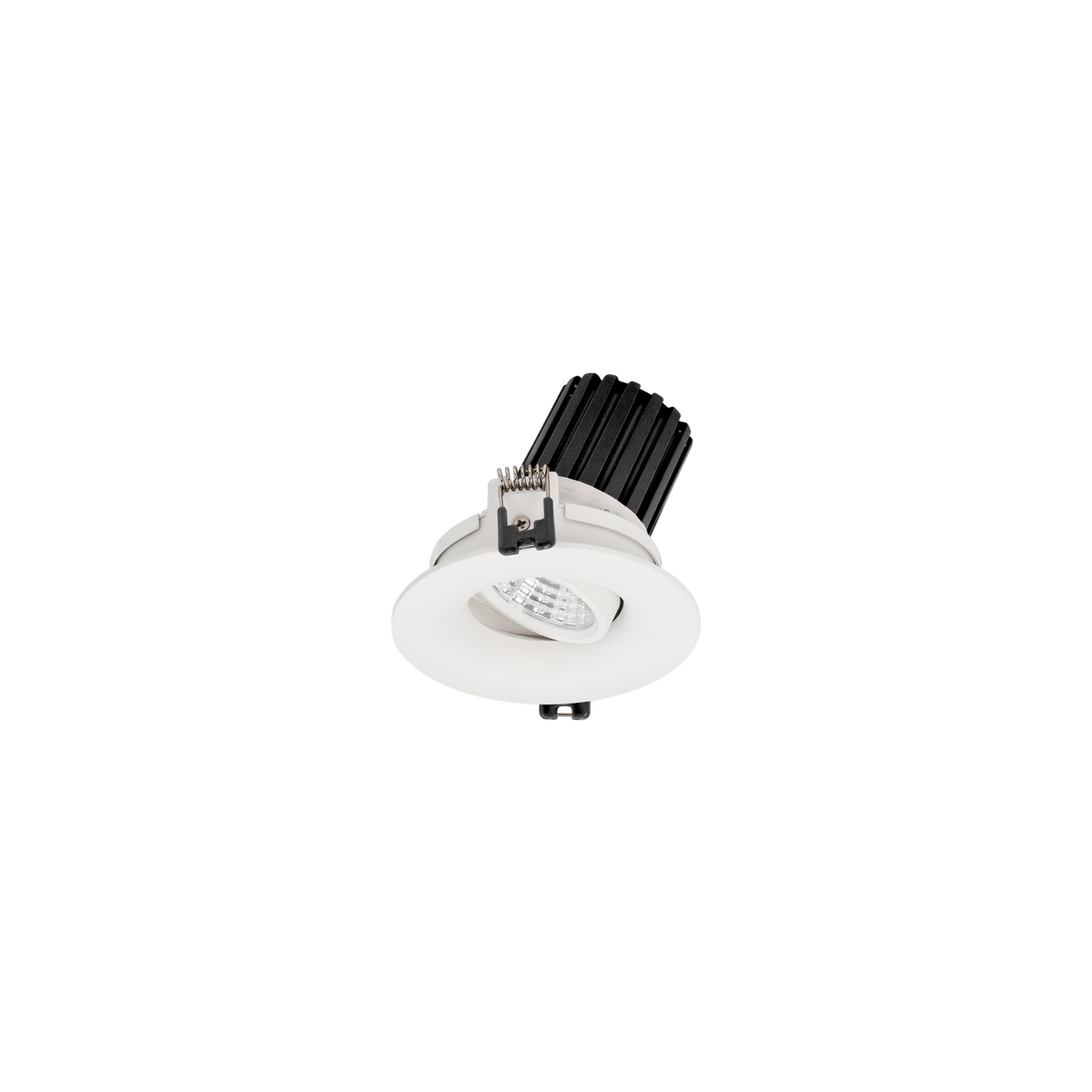

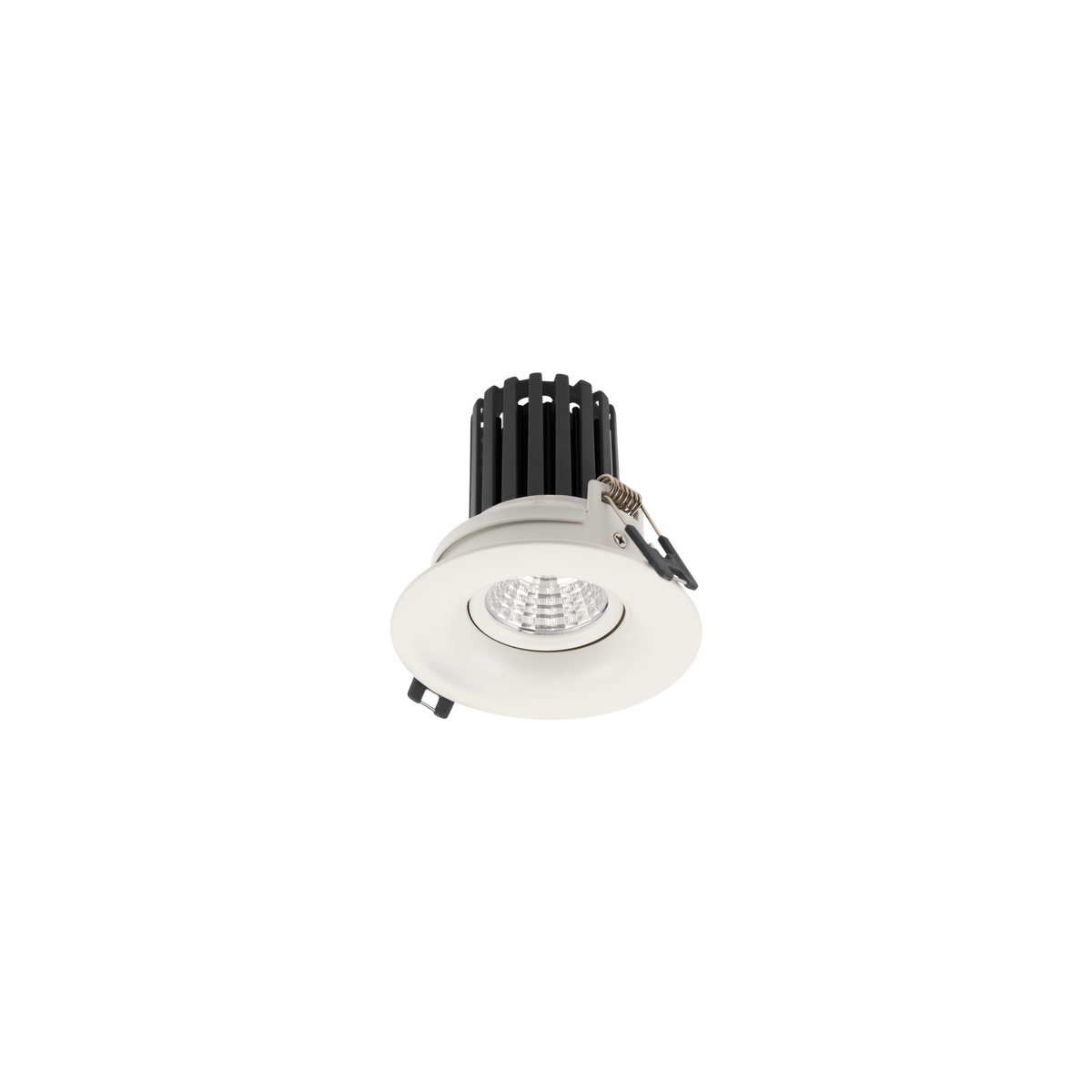

R747 W3K Curve Tilt Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
880lm
12W
30°
Lumens
Watts
Tilt Angle
880lm
12W
30°
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Specifications
Cut Out
80-90mm
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
880lm
Beam Angle
60° (Prismatic Lens)
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
30°
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
100mm
Height
89mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Patented PC Heat Shield
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
