R742 W34
R742
- Checking stock...

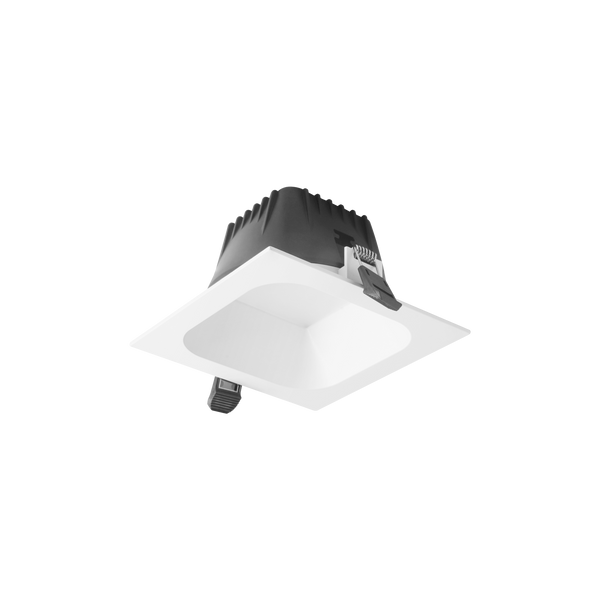

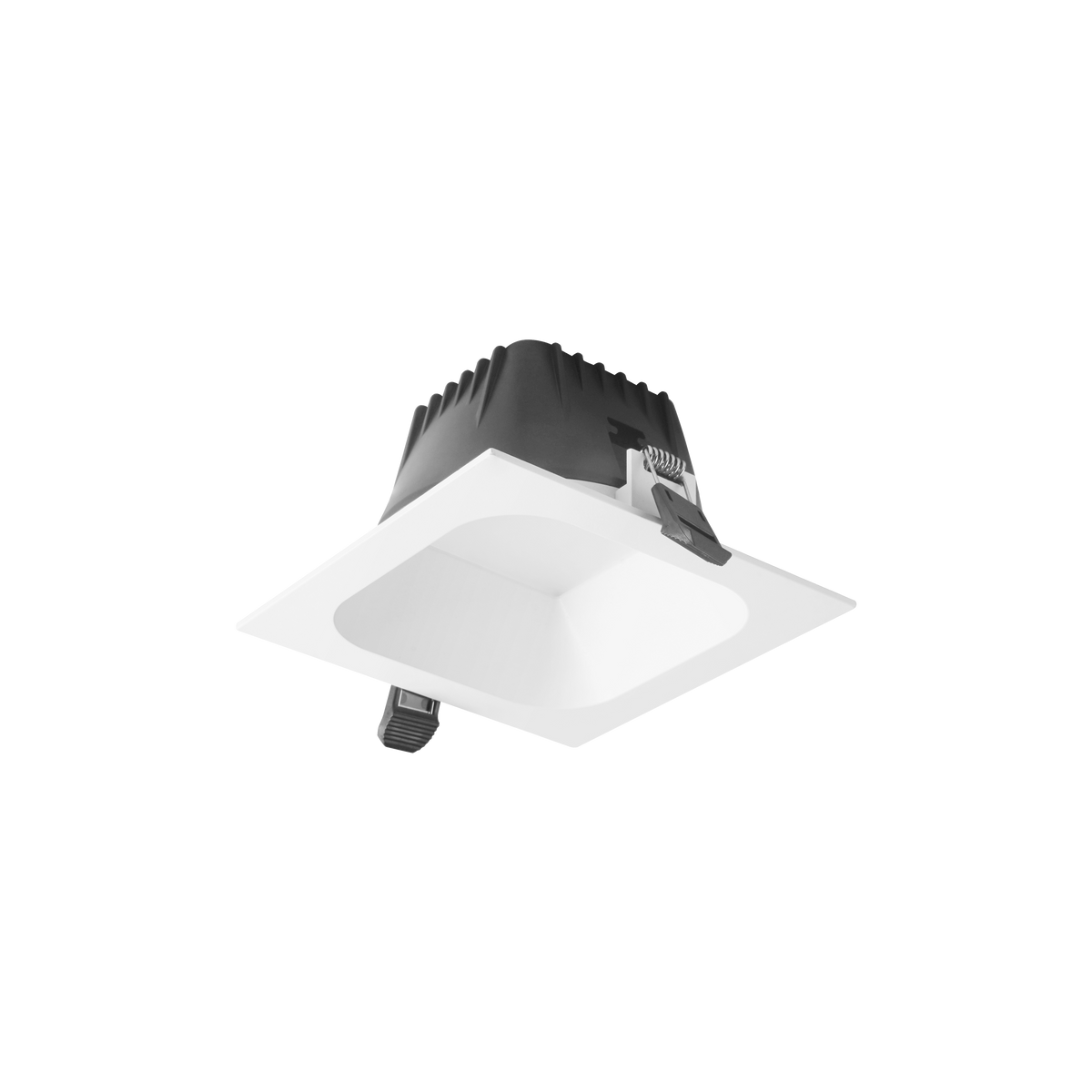

R742 W34 Square Commercial Medium Downlight White 3000K / 4000K
Lumens
Watts
2090lm (See Spec Sheet)
17W
Lumens
Watts
2090lm (See Spec Sheet)
17W
Add Driver
driver not included
View Options
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC500-DX-30W
500mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Non Dimmable
DCC500-20W
500mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
17W
Lumens
2090lm (See Spec Sheet)
Beam Angle
70°
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L80)
Ingress Protection
IP54
Cut Out
150mm
Height
85mm
Width
160mm
Length
160mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
25mm
Side Clearance to Building Elements
25mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
Adjustable 350mA or 500mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
Downloads
