R700 SMBA
R700
- Checking stock...
Downlight Mini Square Surface Mount 1.2W 3K 350mA CC Brushed Aluminium - Driver Sold Separately
Luminaire

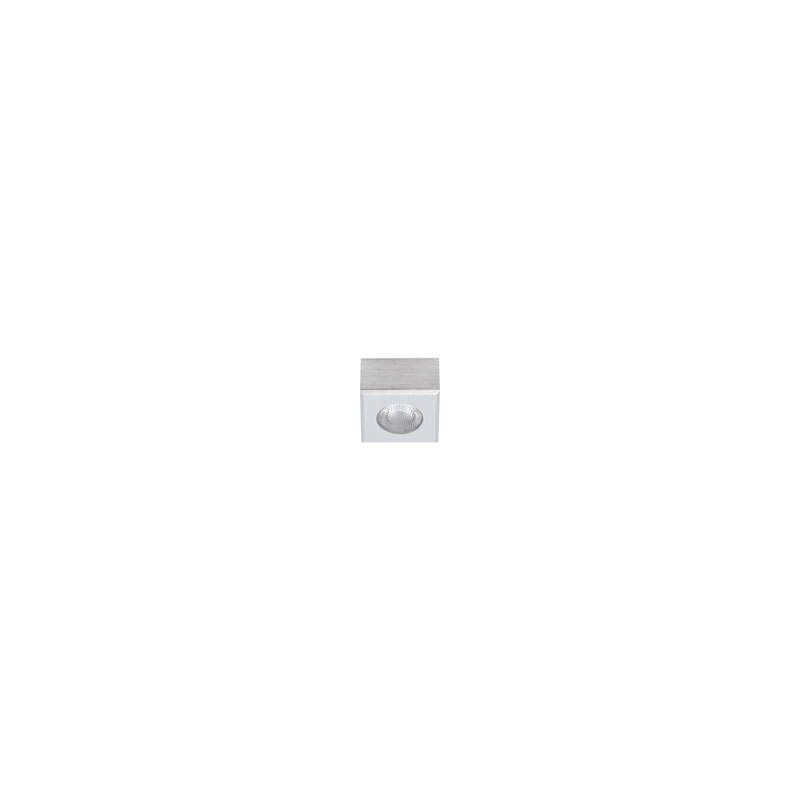

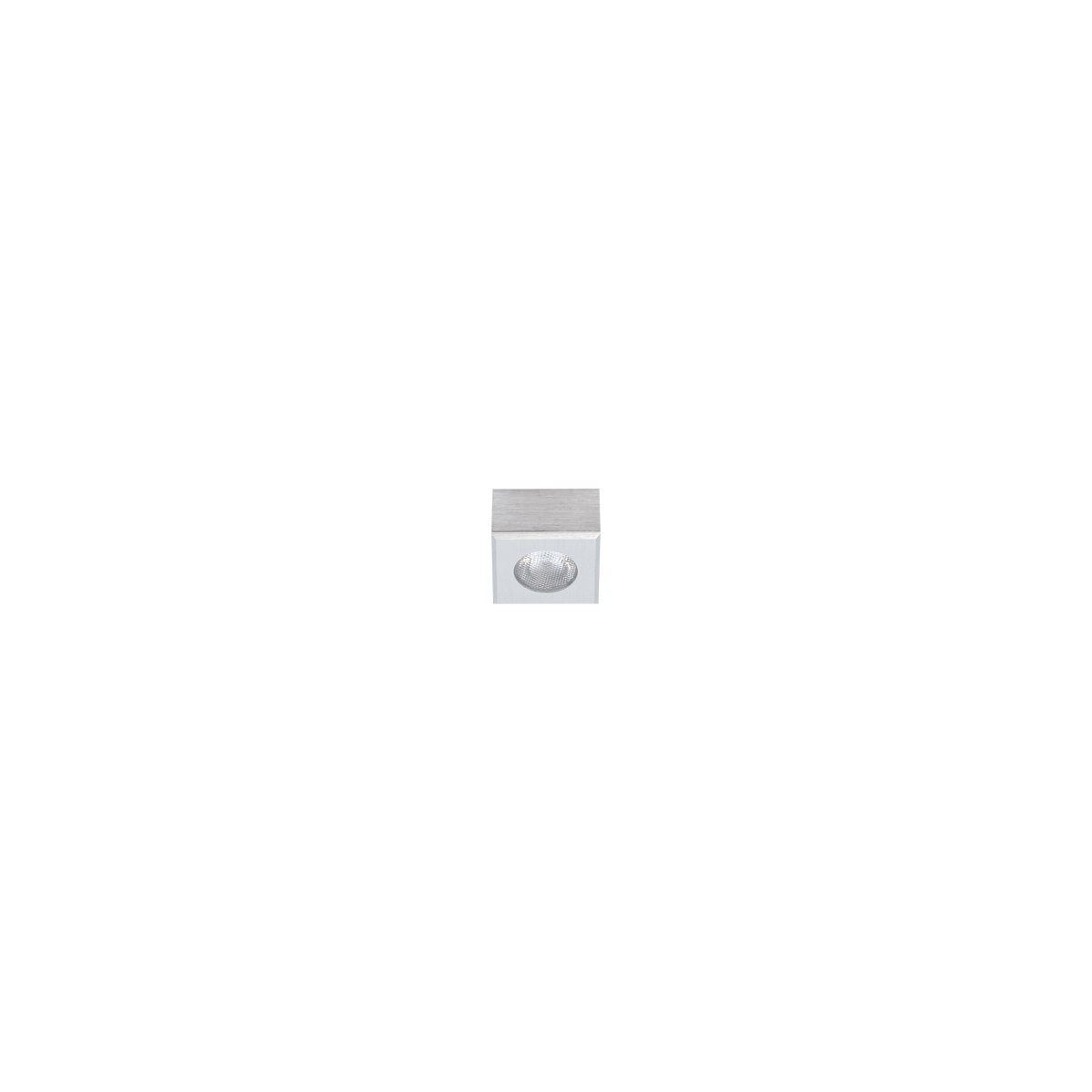

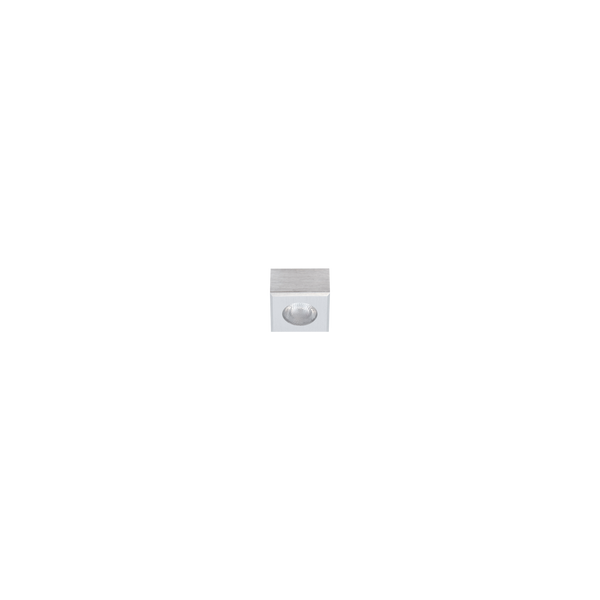

R700 SMBA Mini Fixed Square Brushed Aluminium 3000K
Lumens
Watts
95lm
1.2W
Lumens
Watts
95lm
1.2W
Specifications
Finish
Brushed Aluminium
Colour Temp
3000K Warm White
Watts
1.2W
Lumens
95lm
Beam Angle
22°
Input
350mA
CRI
80
Lifespan
50,000hrs
Ingress Protection
IP44
Height
21mm
Width
36mm
Length
36mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
Clearance 1 Year Warranty
