LED Recessed Pirouette c/w UID Dimmable Driver 9.5W 500mA CC 3K-White
Downlights

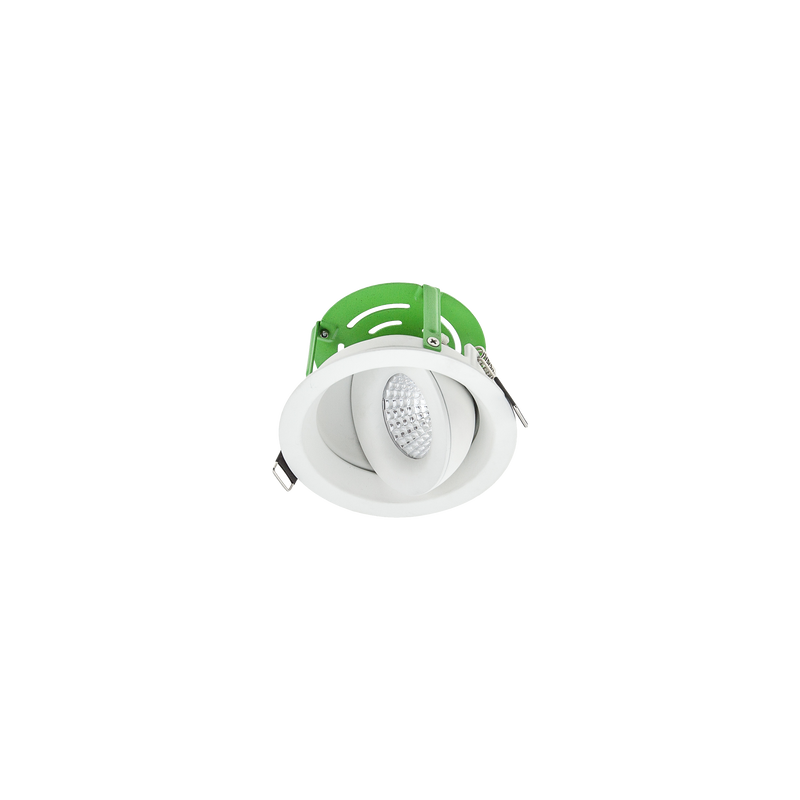

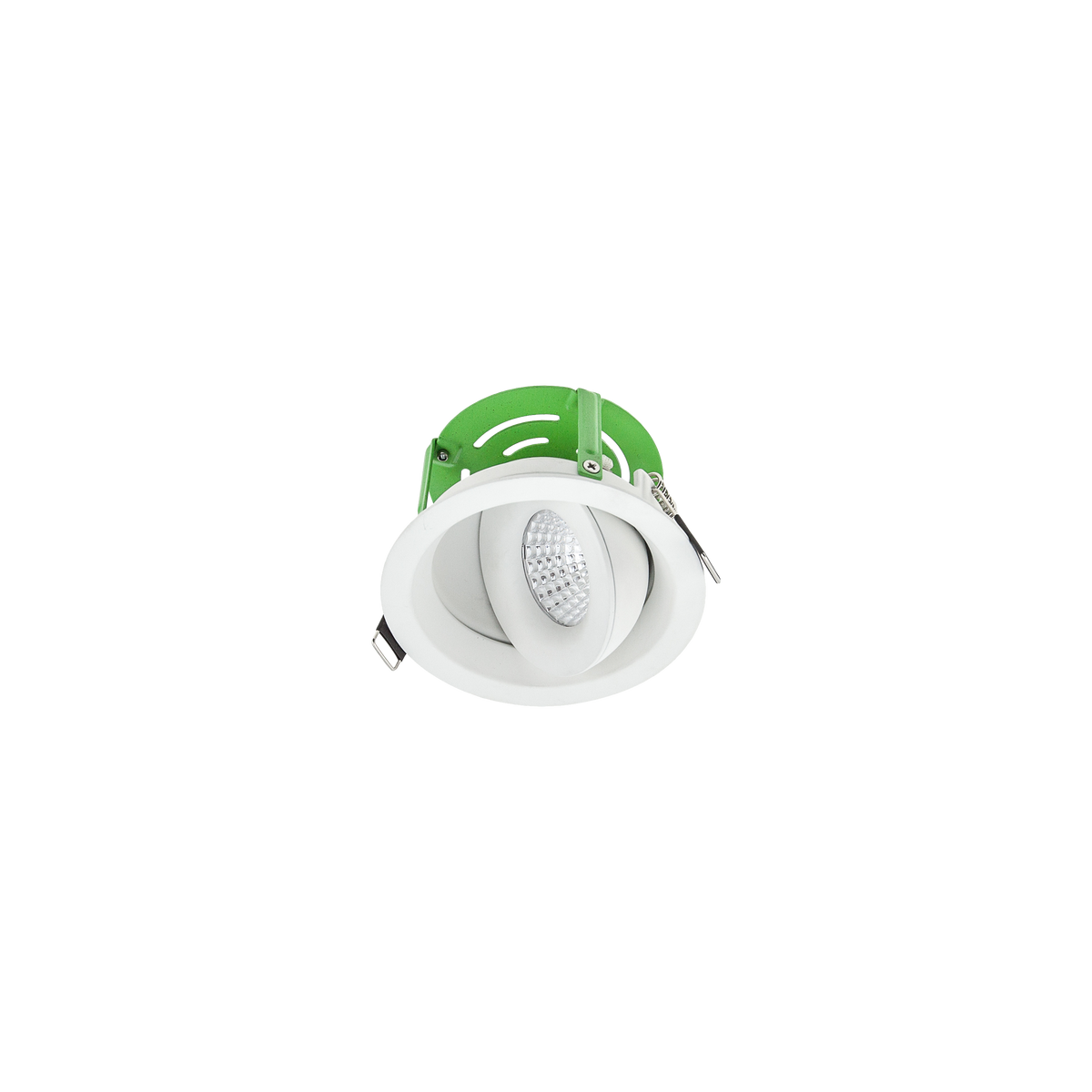

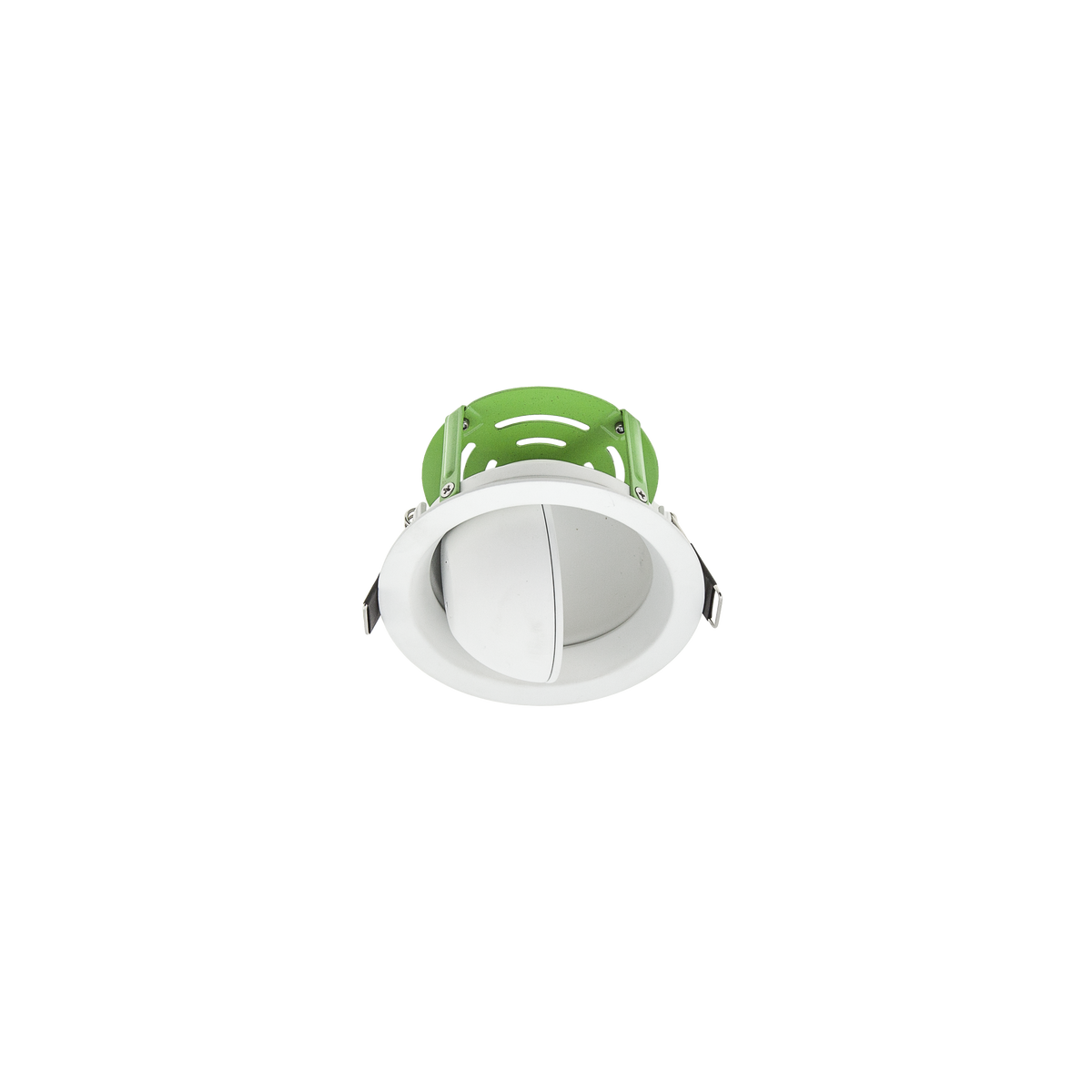

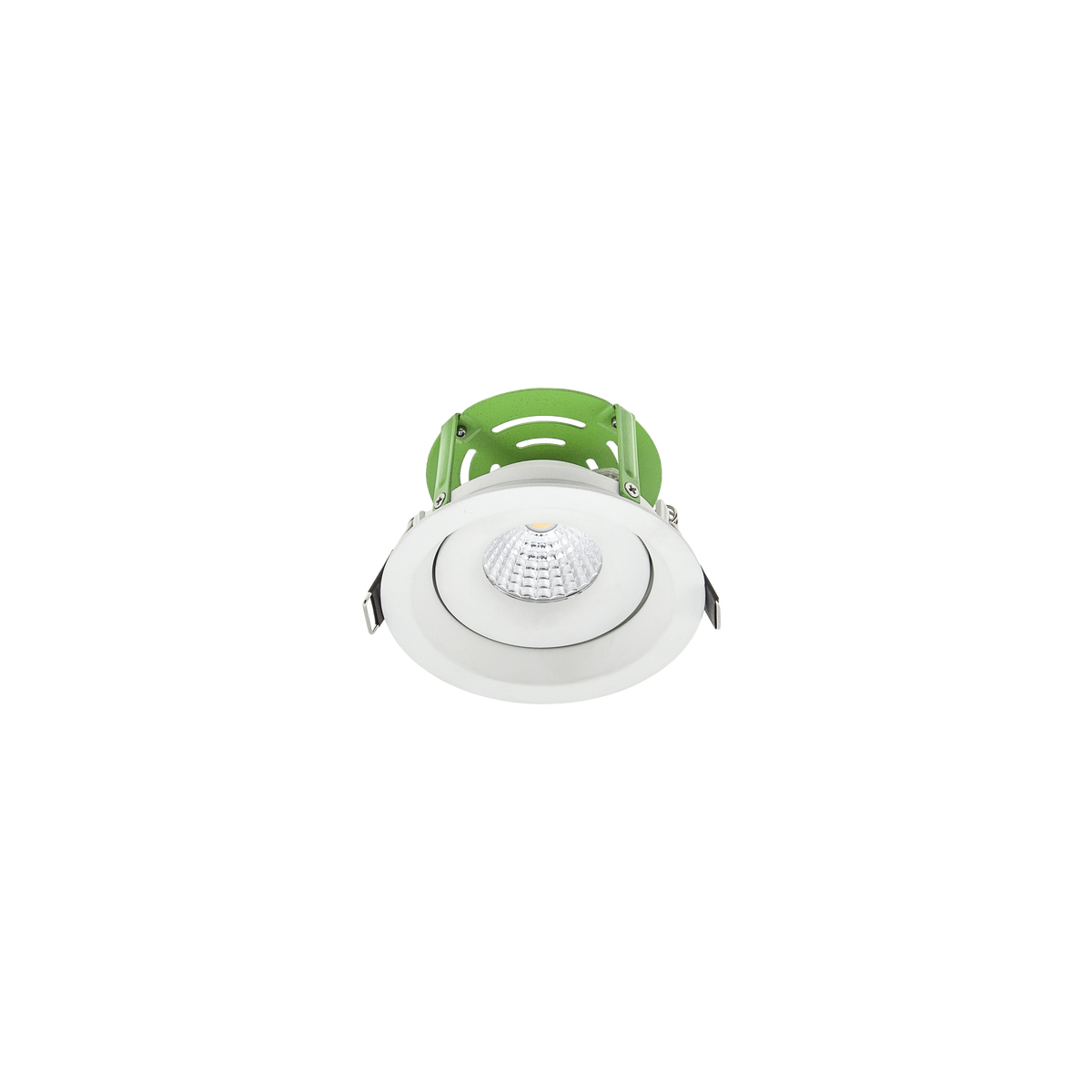

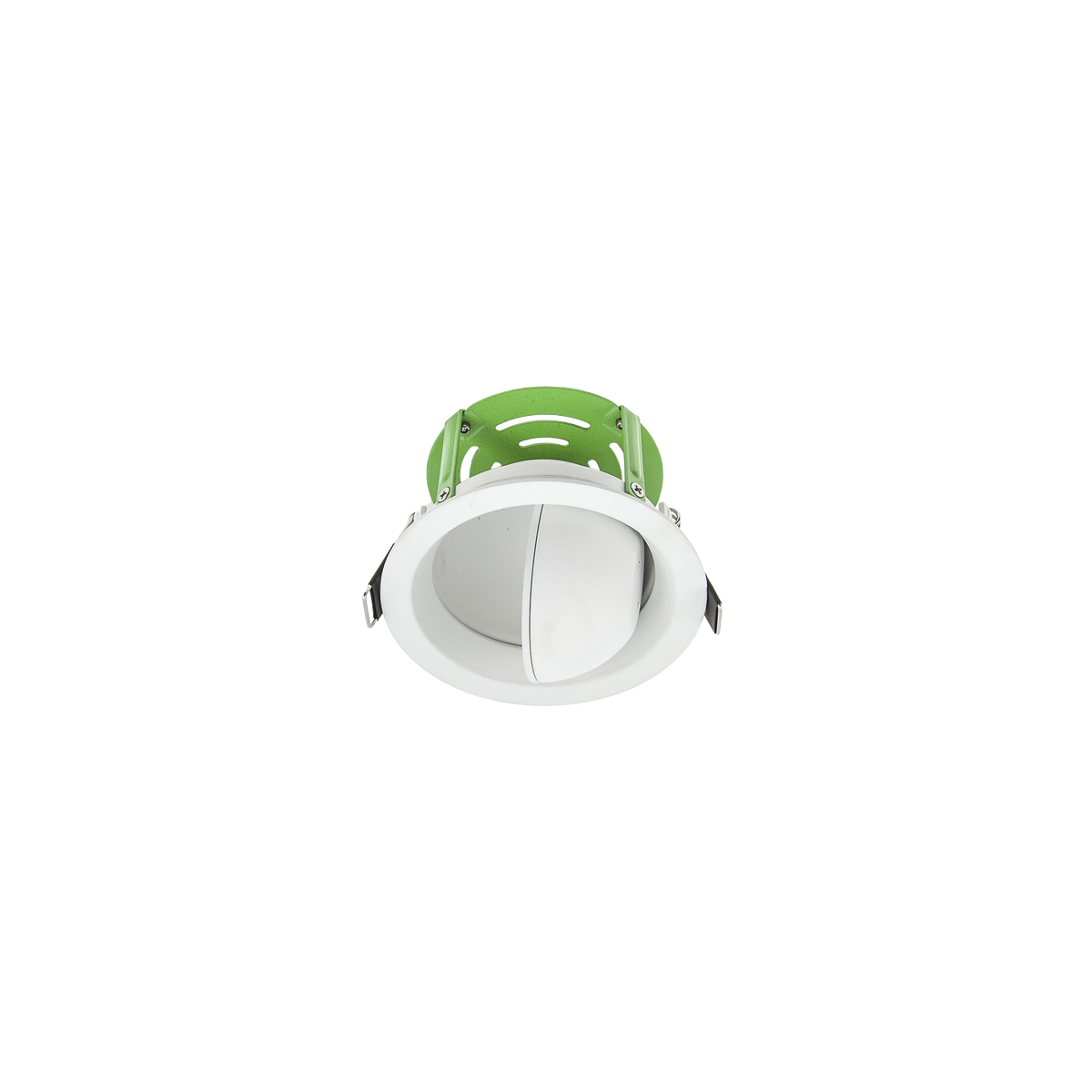

Pirouette Downlight Kit White 3000K

R693 KWWUDL Pirouette Downlight Kit White 3000K

Lumens

Watts

Tilt Angle

670lm

9.5W

90°

Lumens

Watts

Tilt Angle

670lm

9.5W

90°

Driver
500mA 12W  Dimmable Constant Current DX Series Driver

DCC500-DX-12W

Watts

6W-12W

Watts

6W-12W

Add to

Select driver

driver sold separately. Please select below.

Specifications

Pirouette Downlight Kit White 3000K

Downlights

R693 KWWUDL

Finish

White

Colour Temp

3000K Warm White

Watts

9.5W

Lumens

670lm

Beam Angle

60°

Input

240V

Dimming / Control

Phase-Cut Dimmable

CRI

90

Lifespan

40,000hrs

Tilt Angle

90°

Rotate Angle

360°

Ingress Protection

IP20

Cut Out

93mm

Diameter

105mm

Height

60mm

Binning

SDCM 3

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

IC

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium

Electrical Class

Class II

Driver Output Current

500mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

500mA 12W  Dimmable Constant Current DX Series Driver

Driver

500mA 12W Dimmable Constant Current DX Series Driver

Watts

6W-12W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Height

28mm

Width

45mm

Length

120mm
