R538 BG4K
R538
- Custom Build - Stock Available

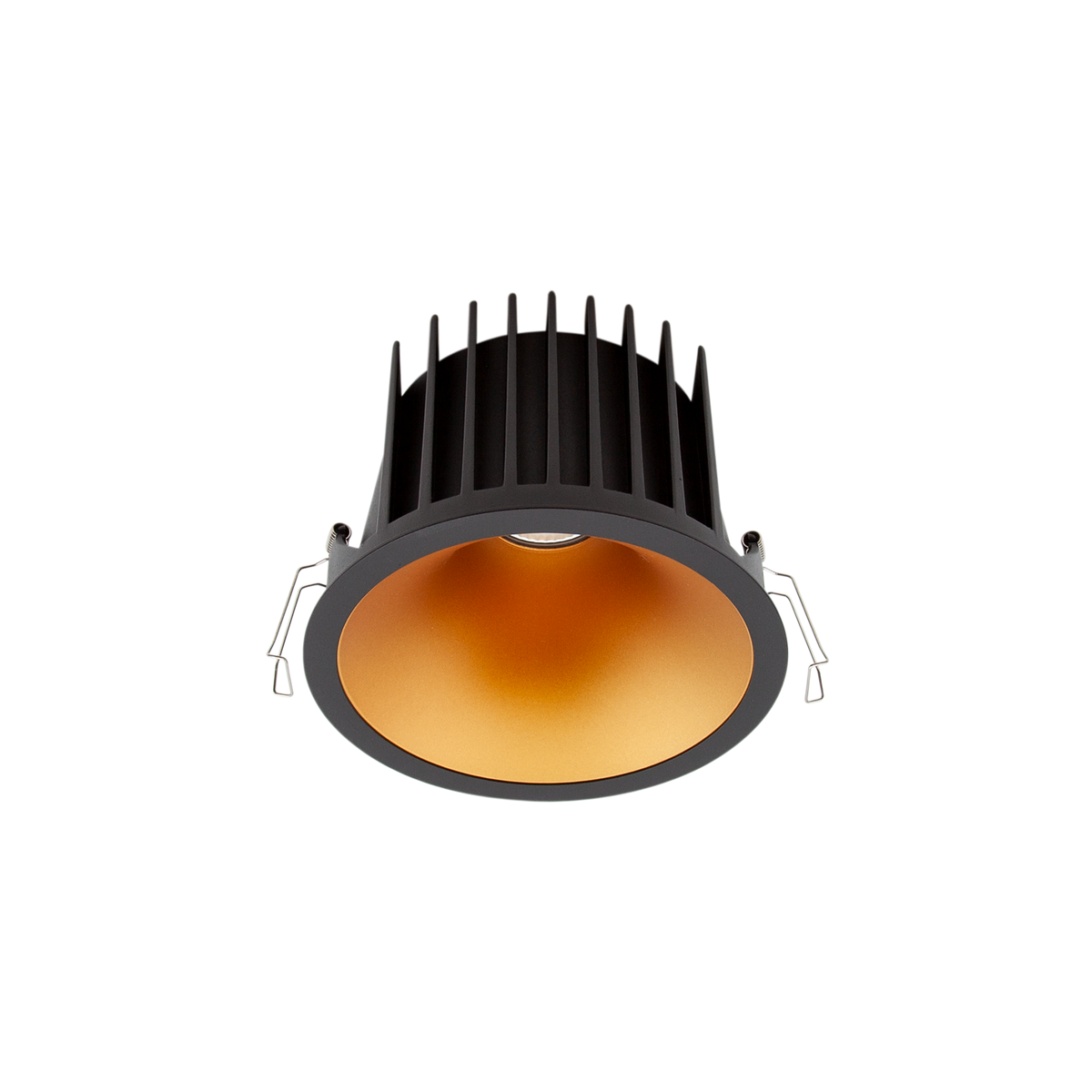

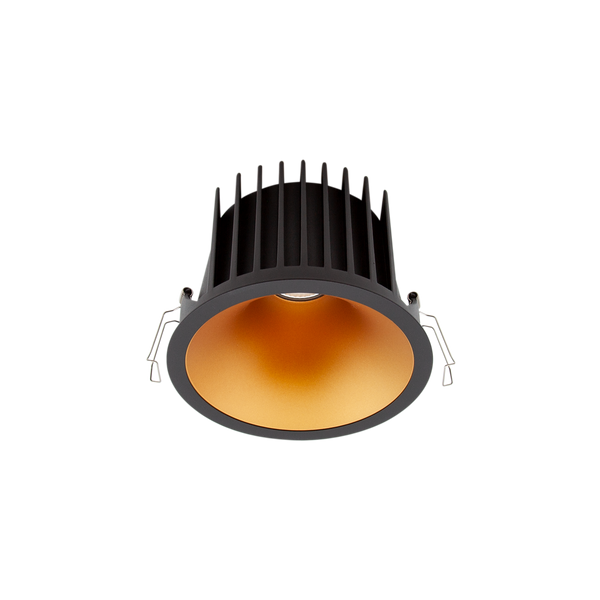

R538 BG4K 28W Cevon Dark Art X-Large Black, Gold 4000K
Lumens
Watts
2520lm
28W
View Options
DCC700-D-40W
Watts
19.6W-40W
Watts
19.6W-40W
-
Retrofit 170mm OD Wide Rim Accessory White
Select Downlights
R538
28W Cevon Dark Art X-Large Black, Gold 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large White 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2660lm
Watts
28W
R538
28W Cevon Dark Art X-Large White 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2640lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, Silver 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, Silver 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large Black, Silver 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large Black, Silver 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, High Gloss Black 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2400lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, High Gloss Black 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2400lm
Watts
28W
R538
28W Cevon Dark Art X-Large Black, High Gloss Black 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2398lm
Watts
28W
R538
28W Cevon Dark Art X-Large Black, High Gloss Black 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2400lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, Gold 4000K
Temp.
4000K Natural White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large White, Gold 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
R538
28W Cevon Dark Art X-Large Black, Gold 3000K
Temp.
3000K Warm White
Cut out
150mm - Cut holes with extra caution (7mm rim)
Lumens
2520lm
Watts
28W
Specifications
Finish
Black, Gold
Colour Temp
4000K Natural White
Watts
28W
Lumens
2520lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
92
Lifespan
55,000hrs (L90)
Ingress Protection
IP44
Cut Out
150mm - Cut holes with extra caution (7mm rim)
Diameter
157mm
Height
106mm
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
700mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
