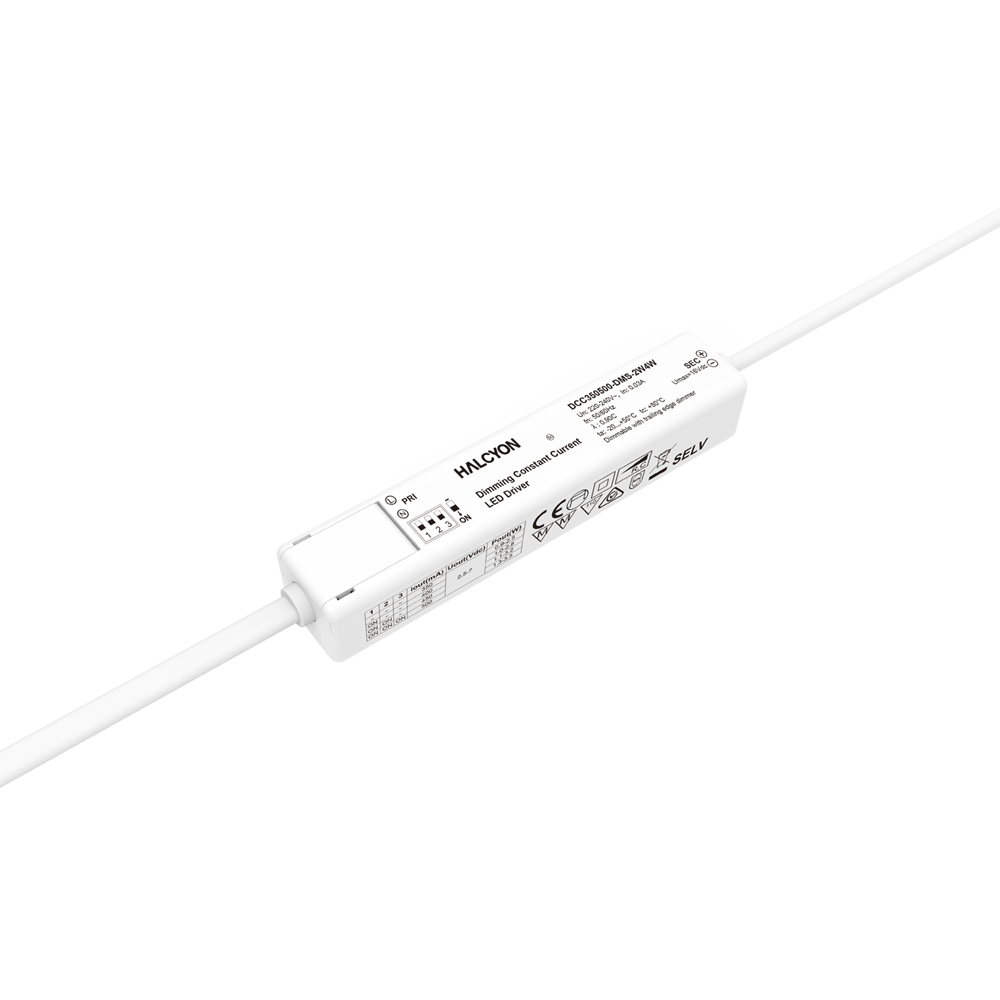

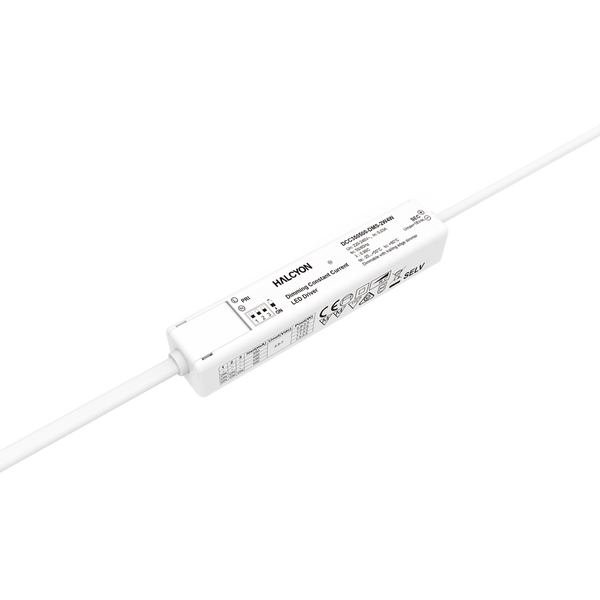

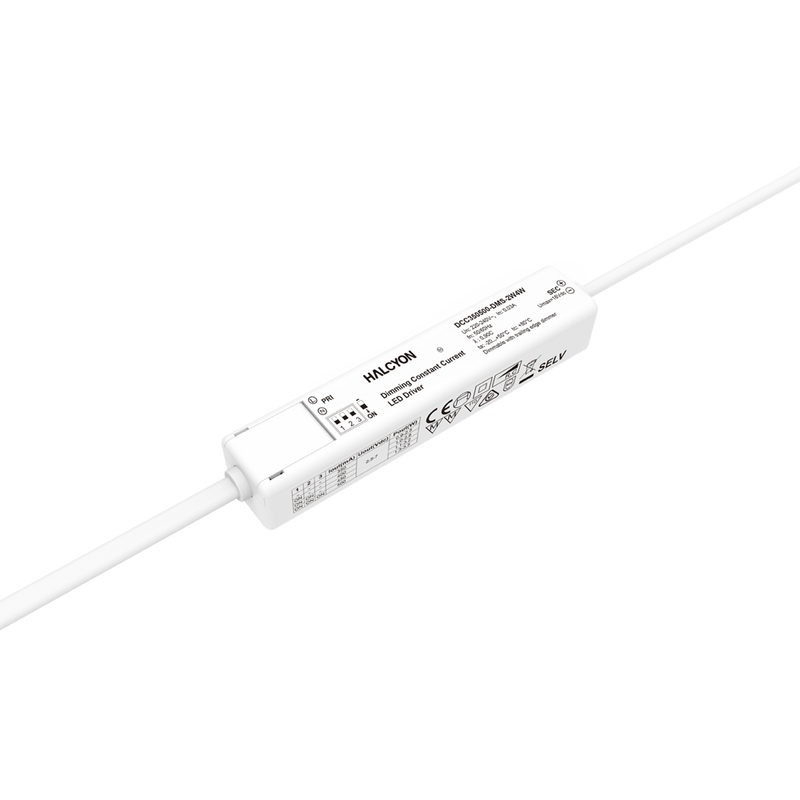

350-500mA 3.5W Constant Current Mini Slim Dimmable Driver

DCC350500-DMS-2W4W

All DCC350500-DMS-2W4W

DCC350500-DMS-2W4W

  • Checking stock...
Driver Mini Slim Phase-Cut Dimmable Pri:240V Sec:2.5-7V 350-500mA CC 2-4W Pre-wired Primary and secondary
Dimmable (phase-cut)
350-500mA 3.5W Constant Current Mini Slim Dimmable Driver

DCC350500-DMS-2W4W 350-500mA 3.5W Constant Current Mini Slim Dimmable Driver

Watts

2W-4W

Watts

2W-4W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

350-500mA 3.5W Constant Current Mini Slim Dimmable Driver

Dimmable (phase-cut)

DCC350500-DMS-2W4W

Watts

2W-4W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

18.5mm

Width

20mm

Length

100mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

2.5V-7V

Driver Output Current

Adjustable 350mA, 400mA, 450mA, 500mA

Power Factor

0.90C

Warranty

5 Year Warranty
