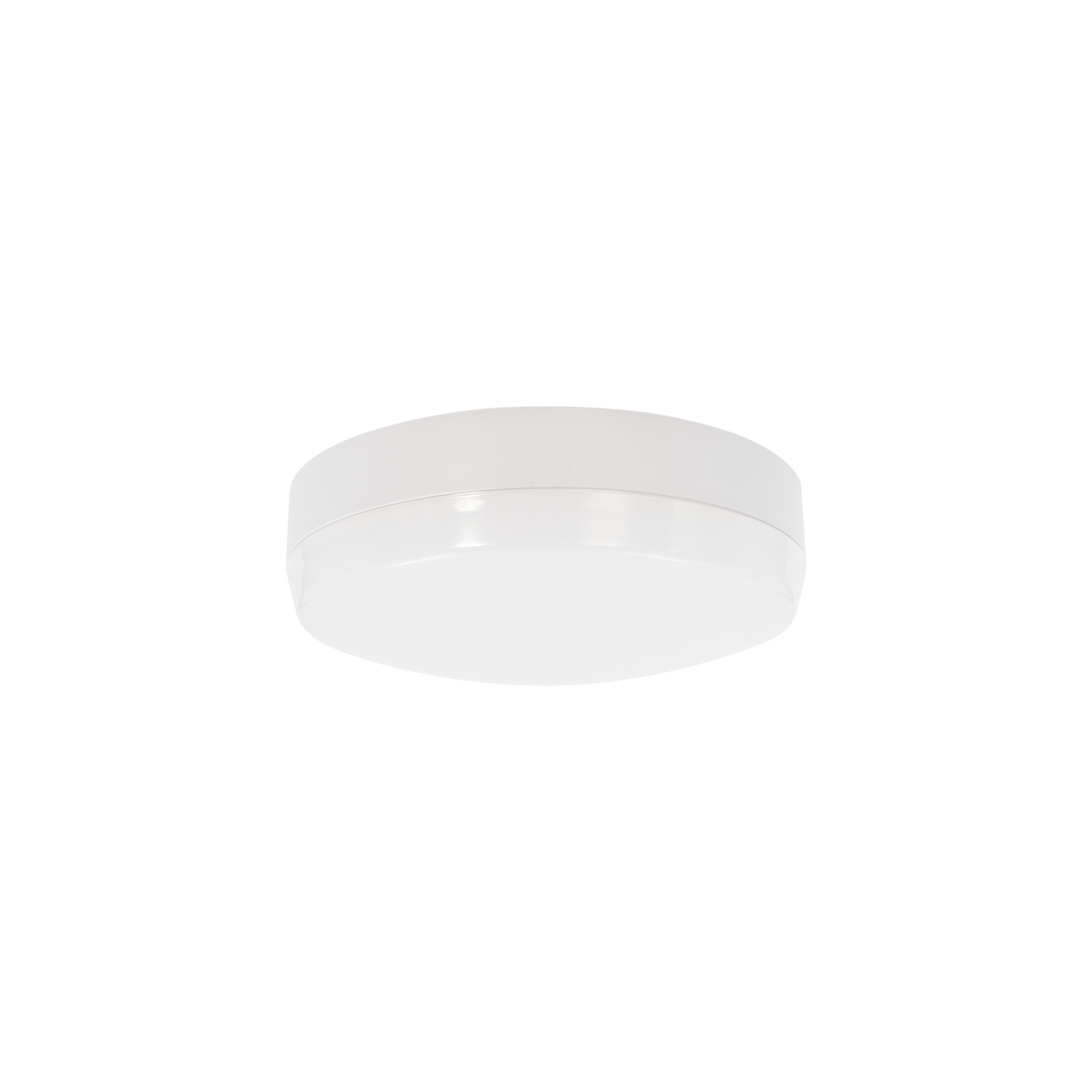

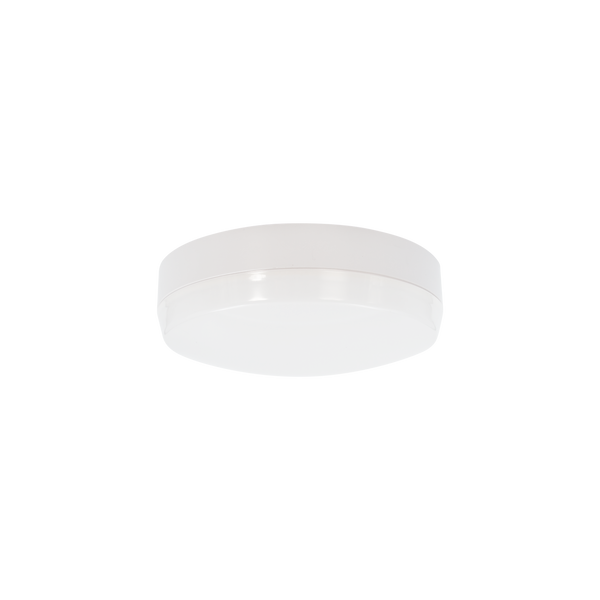

LEDE Small Modular Dual Wattage Button White 3000K / 4000K

LED363 W34A

All LED363 W34A

LED363

  • Checking stock...
Button Small 240V IP54 3K/4K 9W 260mm White
Buttons
LEDE Small Modular Dual Wattage Button White 3000K / 4000K

LED363 W34A LEDE Small Modular Dual Wattage Button White 3000K / 4000K

Lumens

Watts

560lm / 1050lm (See Spec Sheet)

4.5W / 9W

Lumens

Watts

560lm / 1050lm (See Spec Sheet)

4.5W / 9W

  • LED363 Replacement Diffuser

    LED363 Replacement Diffuser

    View Details
  • Plug and play replacement LED & driver module 3K/4K Update 2

    Plug and play replacement LED & driver module 3K/4K Update 2

    View Details

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

LEDE Small Modular Dual Wattage Button White 3000K / 4000K

Buttons

LED363 W34A

Finish

White

Colour Temp

3000K or 4000K (Selectable)

Watts

4.5W / 9W

Lumens

560lm / 1050lm (See Spec Sheet)

Beam Angle

120°

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

CRI

80

Lifespan

60,000hrs (L90)

Ingress Protection

IP54

Diameter

260mm

Height

85mm

Binning

SDCM 5

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

PC

Electrical Class

Class II

Driver Included / Incorporated

Driver Incorporated

Impact Rating

IK10

Warranty

5 Year Warranty
