DCV24-D110V-150W-IP-PL
DCV24-D110V-150W-IP-PL
- Checking stock...
Driver 1-10V Dimmable Pri:240V Sec:24V DC CV 4.8-150W IP67 pre-wired 3 Pin Plug
1-10v

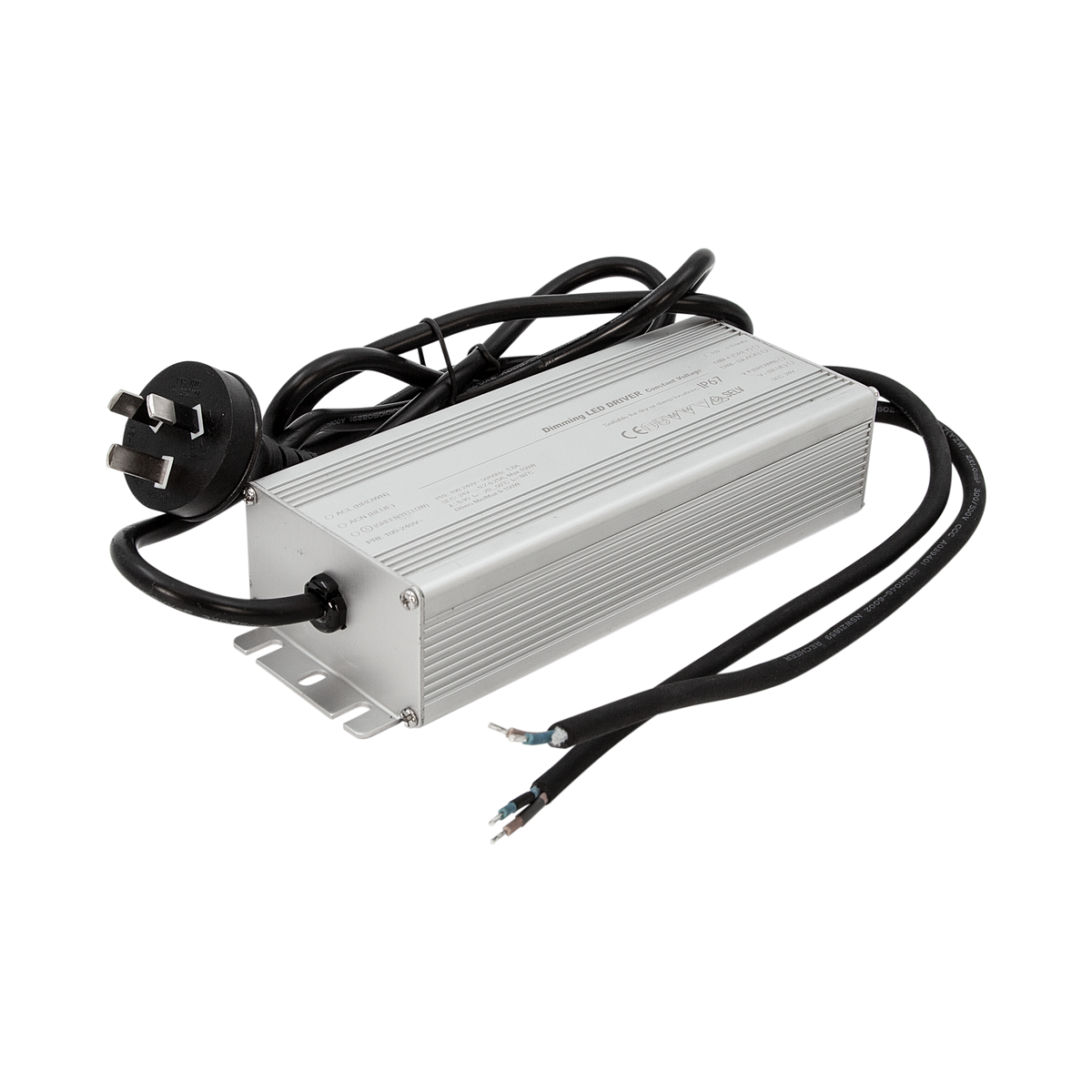

DCV24-D110V-150W-IP-PL IP67 24V 150W Constant Voltage Pre-wired/w Plug & dim 1-10V connection
Watts
4.8W-150W
Watts
4.8W-150W
Specifications
Watts
4.8W-150W
Input
100-240V 50/60Hz
Dimming / Control
1-10V Dimmable
Ingress Protection
IP67
Height
40mm
Width
70mm
Length
191mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Electrical Class
Class I
Driver Output Voltage
24V
Driver Output Current
0.2-6.25A
Ambient Operating Temperature
-20..+50°C
Power Factor
0
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
