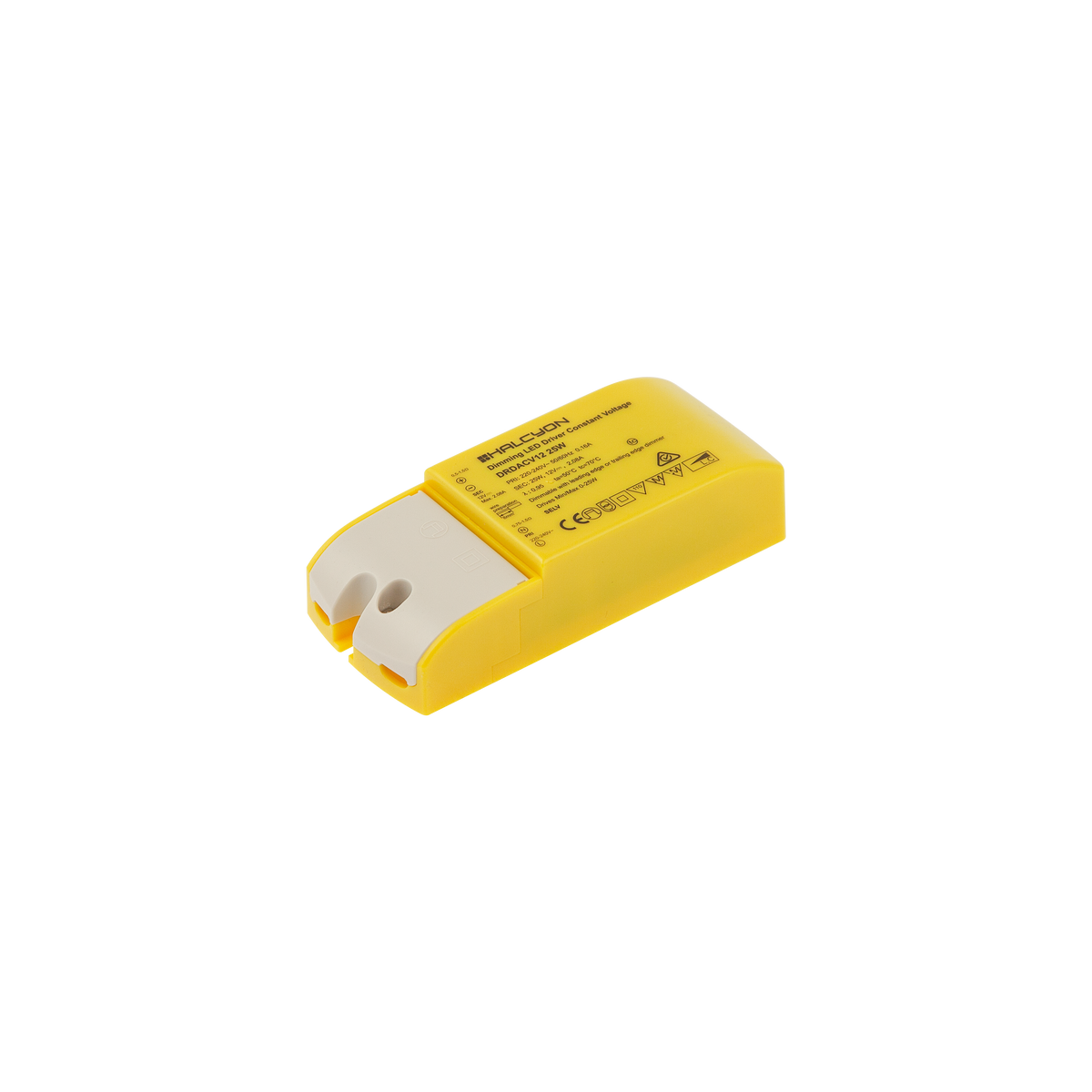

12V 25W Constant Voltage Phase-cut Dimmable Driver

DRDACV12 25W

All Clearance DRDACV12 25W

DRDACV12

  • Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:12V DC CV 2.5-25W
Module
12V 25W Constant Voltage Phase-cut Dimmable Driver

DRDACV12 25W 12V 25W Constant Voltage Phase-cut Dimmable Driver

Watts

2.5W-25W

Watts

2.5W-25W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

12V 25W Constant Voltage Phase-cut Dimmable Driver

Module

DRDACV12 25W

Watts

2.5W-25W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

30mm

Width

52mm

Length

128mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

12V

Driver Output Current

0.2-2.08A

Warranty

5 Year Warranty

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
12V 25W Constant Voltage Phase-cut Dimmable Driver
