DCV24-D-200W-IP
DCV24-D-200W-IP
- Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:24V DC CV 65-200W IP67
Dimmable (phase-cut)

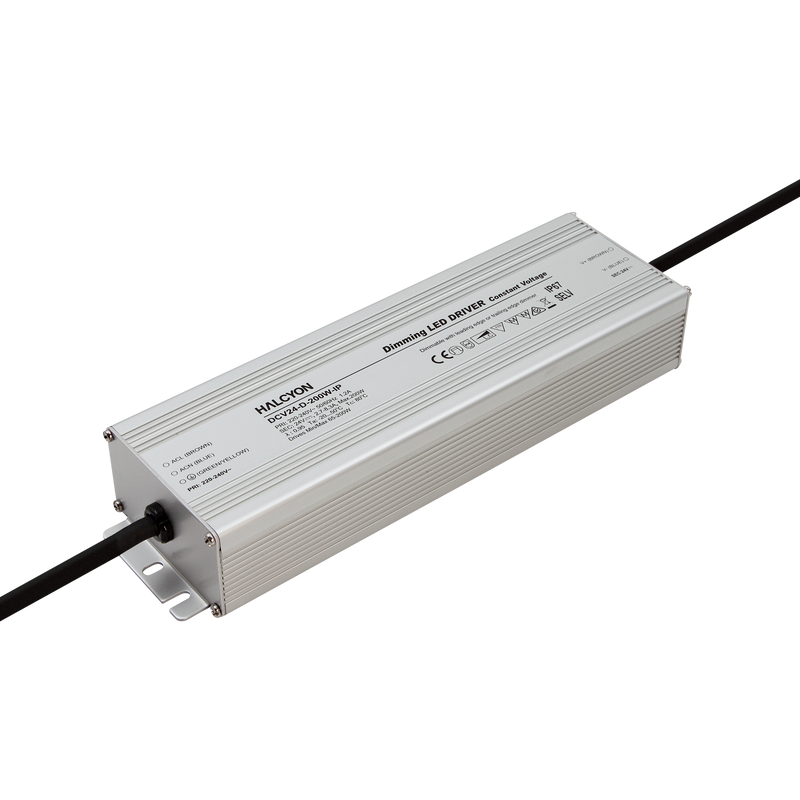

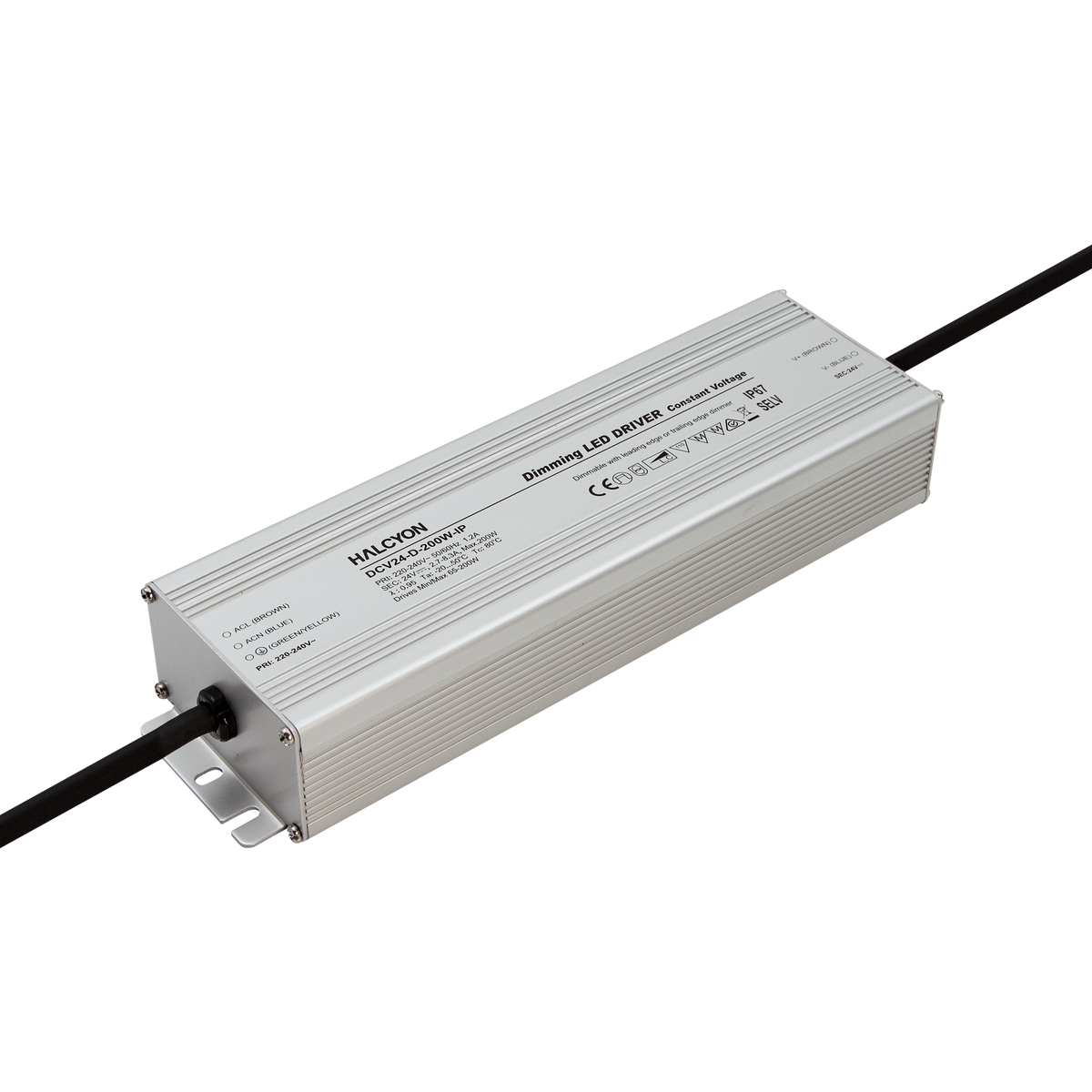

DCV24-D-200W-IP IP67 24V 200W Constant Voltage Phase-cut Dimmable Driver
Watts
65W-200W
Watts
65W-200W
Specifications
Watts
65W-200W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP67
Height
40mm
Width
72mm
Length
249mm
Electrical Class
Class I
Driver Output Voltage
24V
Driver Output Current
2.7-8.3A
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
