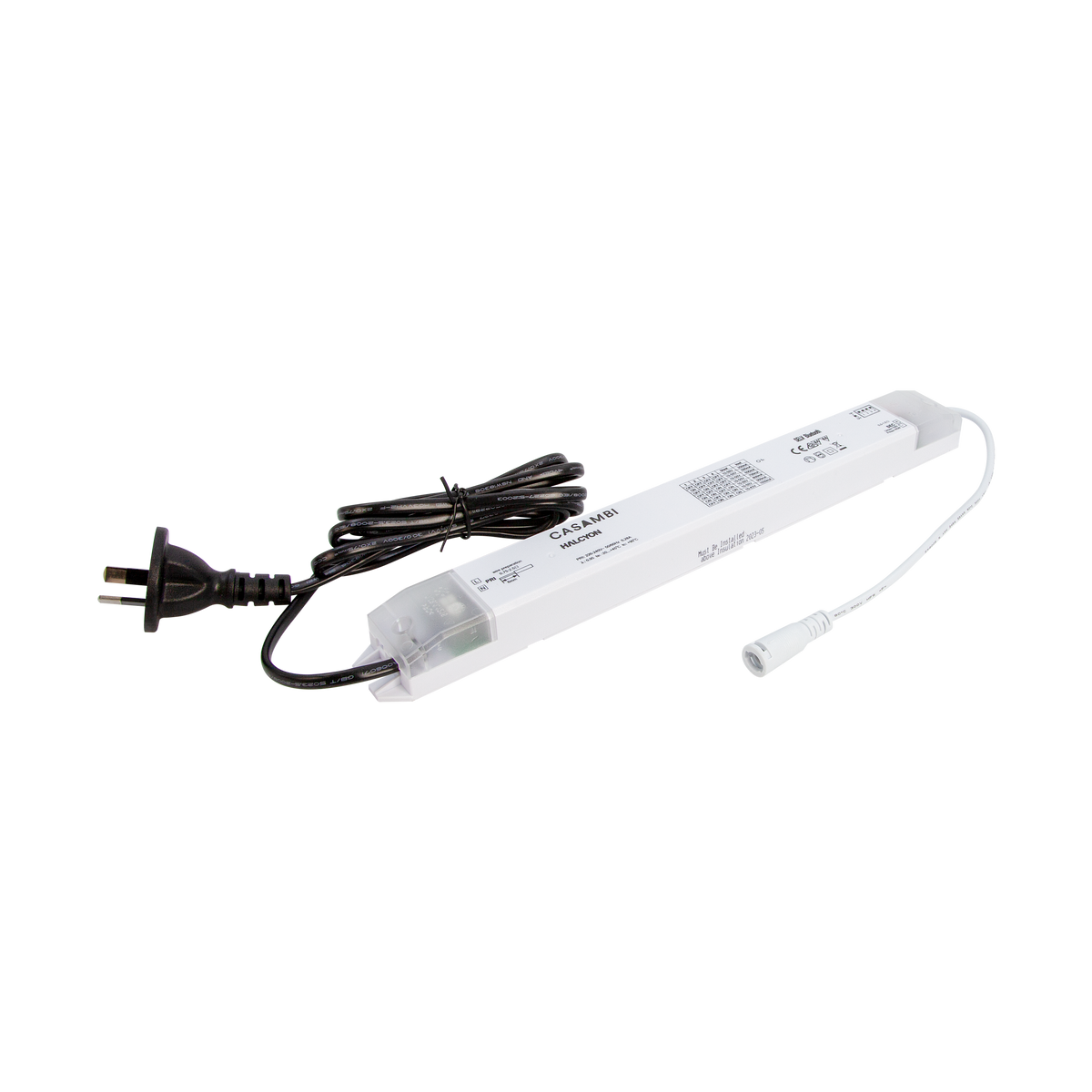

600mA 30W Constant Current Casambi Driver

DCC600A-CAS-30W-PNL

All Control Gear Constant Current Drivers Casambi DCC600A-CAS-30W-PNL

DCC600A-CAS-30W-PNL

  • Custom Build - Request Availability
Driver Casambi Pri:240V Sec:10-50V 600mA CC 30W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
600mA 30W Constant Current Casambi Driver

DCC600A-CAS-30W-PNL 600mA 30W Constant Current Casambi Driver

Watts

6-30W

Watts

6-30W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

600mA 30W Constant Current Casambi Driver

Casambi

DCC600A-CAS-30W-PNL

Watts

6-30W

Input

220-240V 50/60Hz

Dimming / Control

Casambi

Height

24mm

Width

35mm

Length

320mm

Electrical Class

Class II

Driver Output Voltage

10-50V

Driver Output Current

600mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
