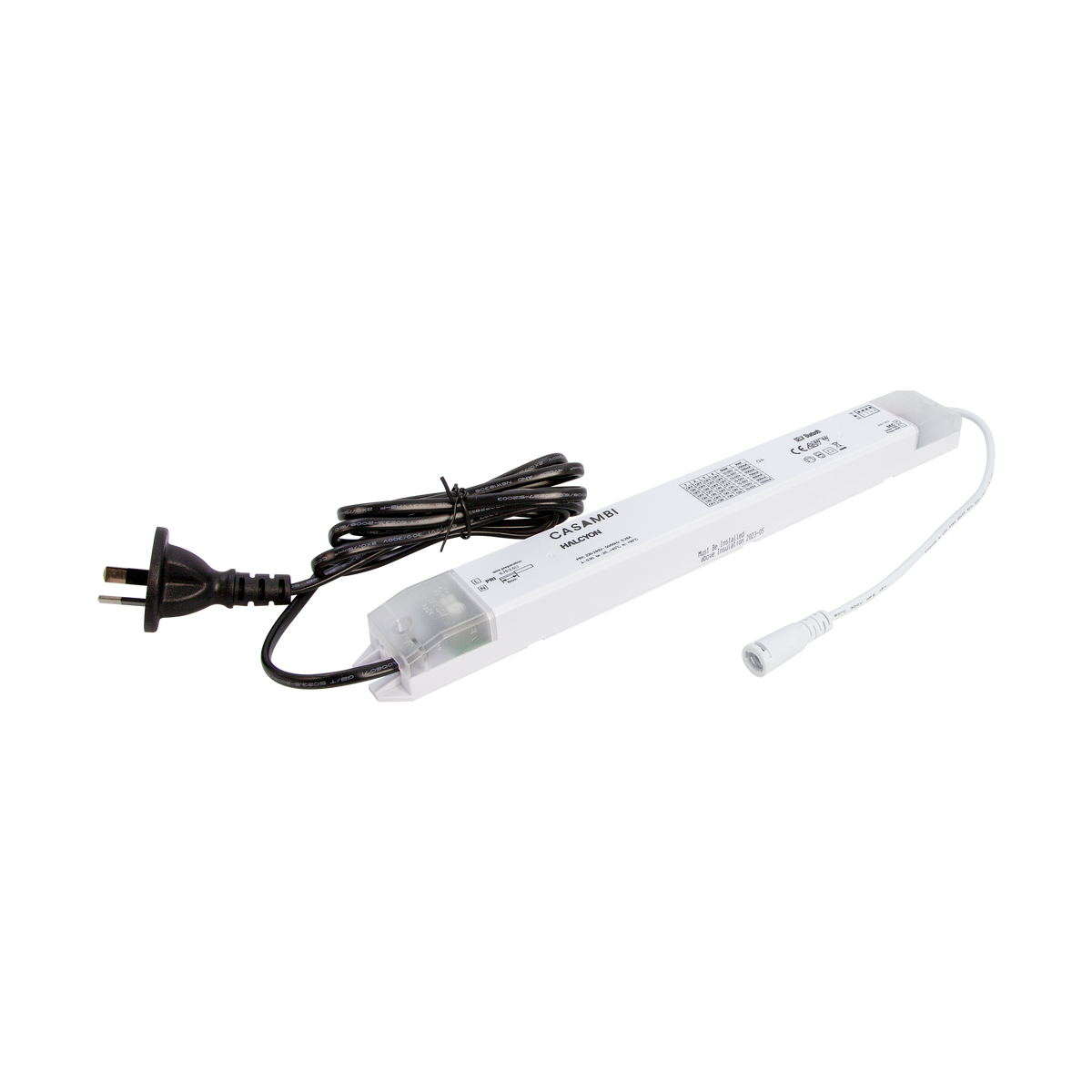

500mA 25W Constant Current Casambi Driver

DCC500A-CAS-25W-PNL

All Control Gear Constant Current Drivers Casambi DCC500A-CAS-25W-PNL

DCC500A-CAS-25W-PNL

  • Custom Build - Request Availability
Driver Casambi Pri:240V Sec:10-50V 500mA CC 25W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
500mA 25W Constant Current Casambi Driver

DCC500A-CAS-25W-PNL 500mA 25W Constant Current Casambi Driver

Watts

5-25W

Watts

5-25W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

500mA 25W Constant Current Casambi Driver

Casambi

DCC500A-CAS-25W-PNL

Watts

5-25W

Input

220-240V 50/60Hz

Dimming / Control

Casambi

Height

24mm

Width

35mm

Length

320mm

Electrical Class

Class II

Driver Output Voltage

10-50V

Driver Output Current

500mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
