DCC350-D-37W
DCC350-D-37W
- Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:53-106V DC 350mA CC 18.6-37W
Dimmable (phase-cut)

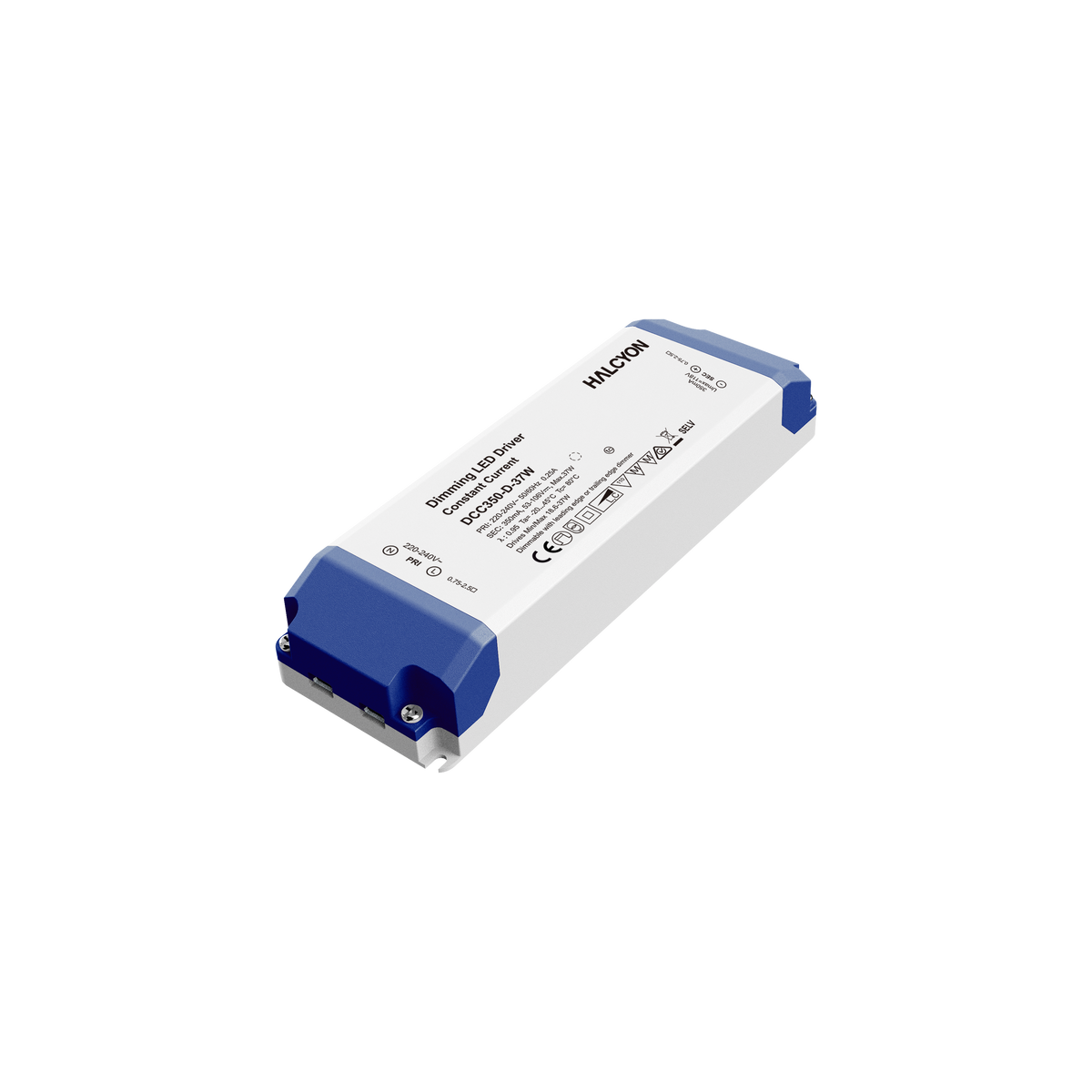

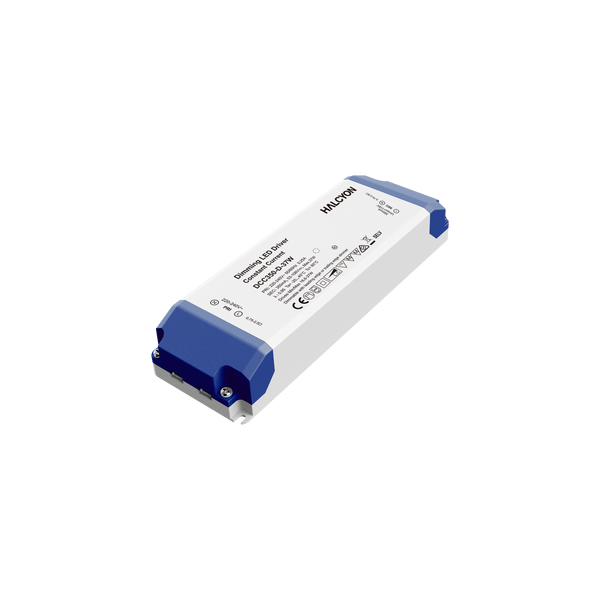

DCC350-D-37W 350mA 37W Constant Current Primary Dimmable
Watts
18.6W-37W
Watts
18.6W-37W
Specifications
Watts
18.6W-37W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
53-106V
Driver Output Current
350mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
