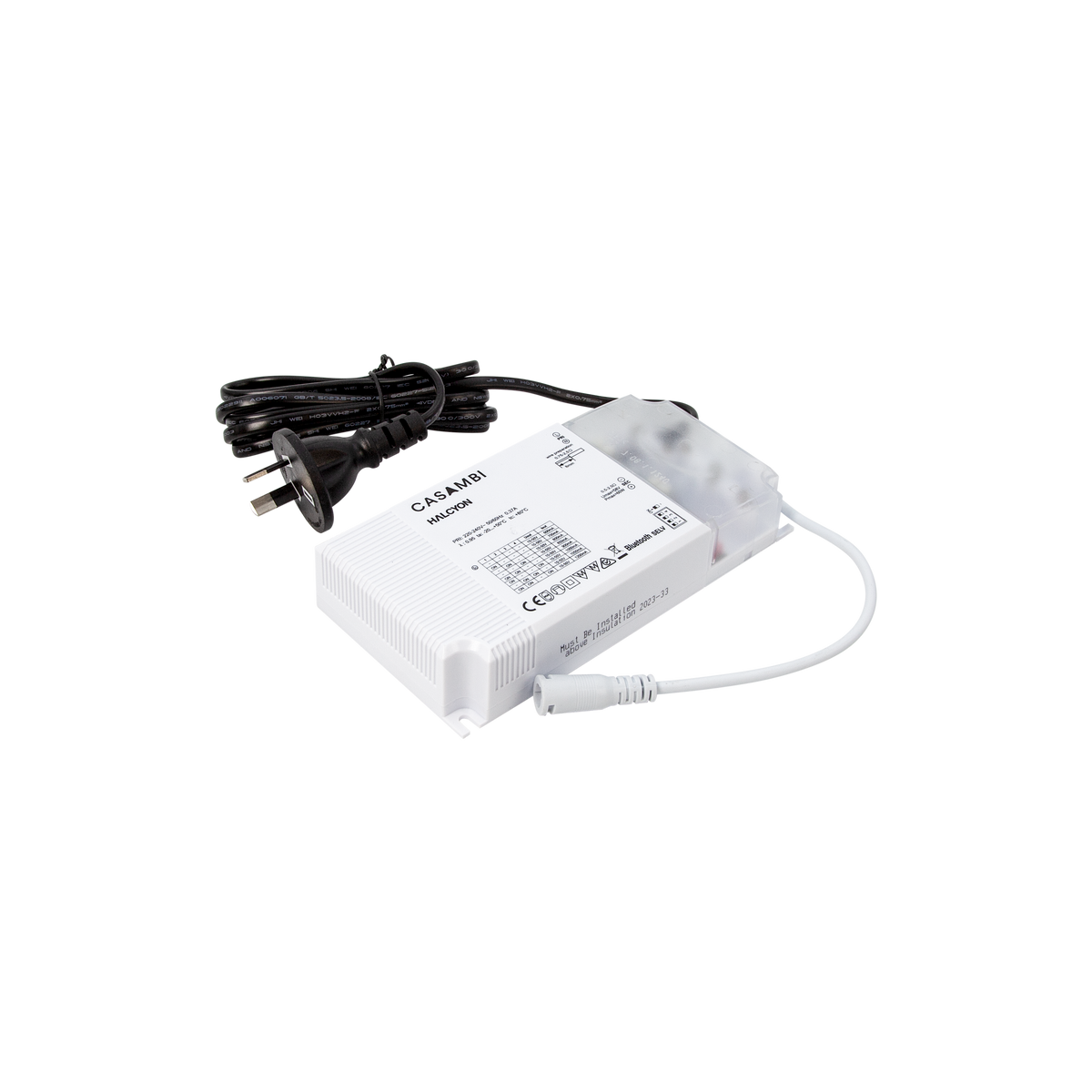

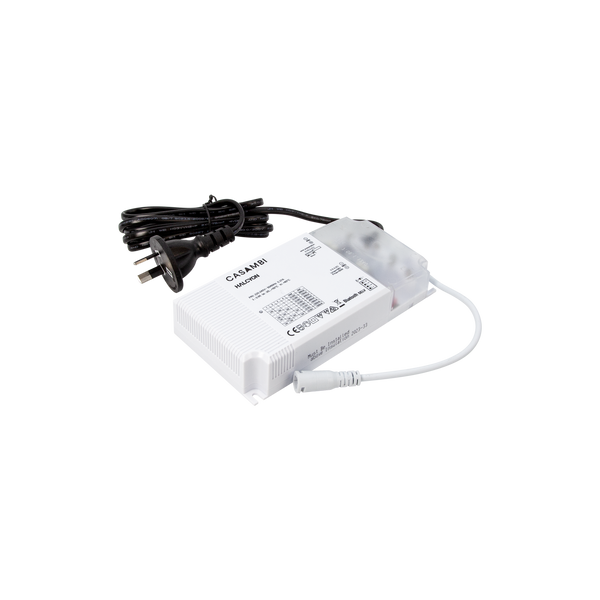

1050mA 52W Constant Current Casambi Driver Single Channel

DCC1050A-CAS-52W-PNL

All Control Gear Constant Current Drivers Casambi DCC1050A-CAS-52W-PNL

DCC1050A-CAS-52W-PNL

  • Custom Build - Request Availability
Driver Casambi Pri:240V Sec:10-50V 1050mA CC 52W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
1050mA 52W Constant Current Casambi Driver Single Channel

DCC1050A-CAS-52W-PNL 1050mA 52W Constant Current Casambi Driver Single Channel

Watts

10.5-52W

Watts

10.5-52W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

1050mA 52W Constant Current Casambi Driver Single Channel

Casambi

DCC1050A-CAS-52W-PNL

Watts

10.5-52W

Input

220-240V 50/60Hz

Dimming / Control

Casambi

Height

30mm

Width

79mm

Length

159mm

Electrical Class

Class II

Driver Output Voltage

10-50V

Driver Output Current

1050mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty

Resources

Download All
Loading...
Download All
1050mA 52W Constant Current Casambi Driver Single Channel
