DCC1050A-D-50W-PNL
DCC1050A-D-50W-PNL
- Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec: 26-48V DC Preset 1050mA 27-50W c/w QC Panel Secondary Cable, 1.5m Lead, 2 Pin Plug (Selectable 850/900/950/1050mA)
Dimmable (phase-cut)

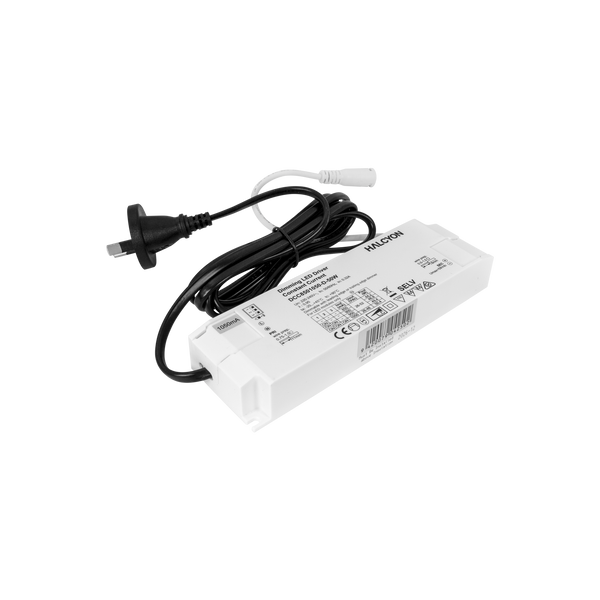

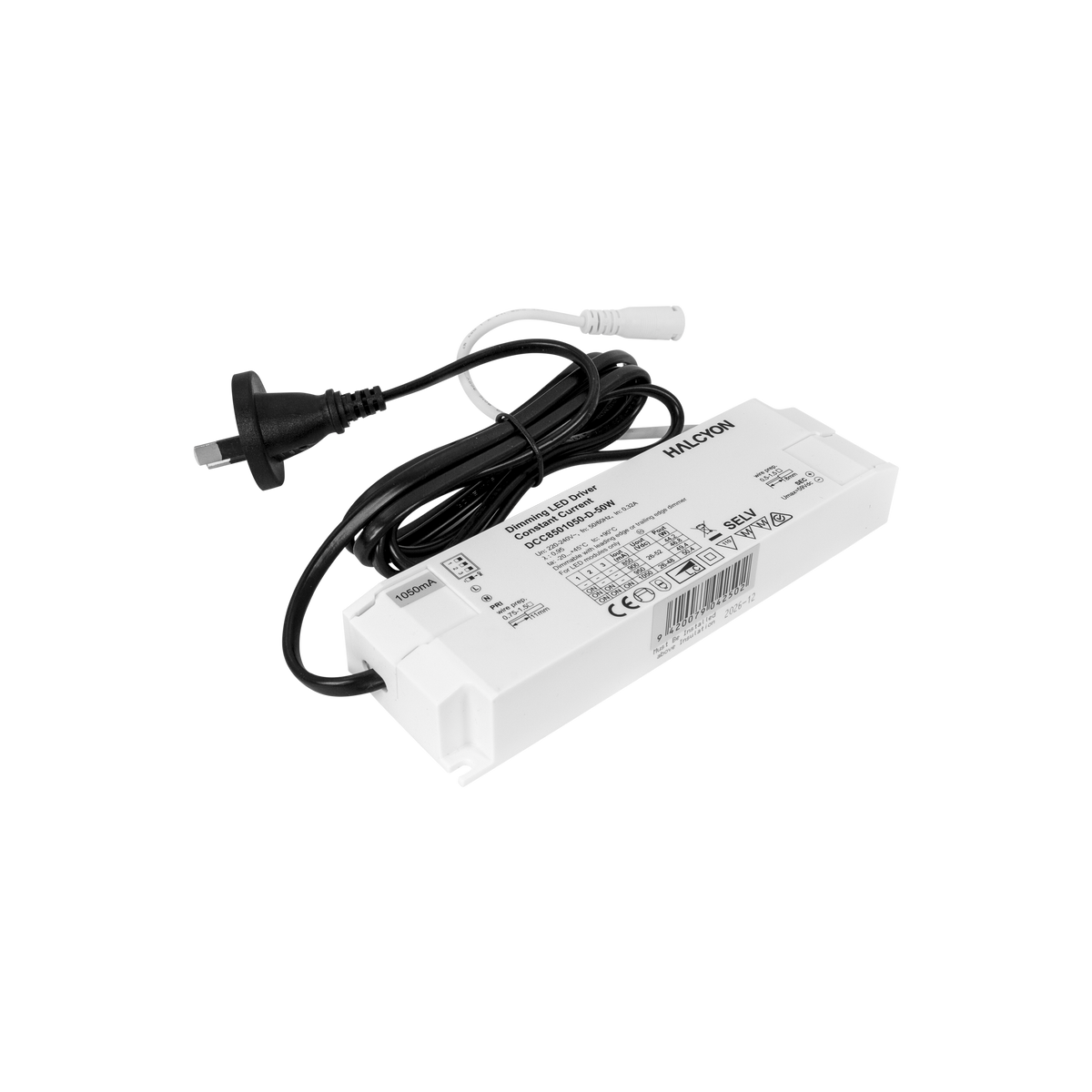

DCC1050A-D-50W-PNL 1050mA 50W Constant Current Dimmable Driver
Watts
27.3-50.4W
Watts
27.3-50.4W
Specifications
Watts
27.3-50.4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Height
25mm
Width
52mm
Length
166mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
26-48V
Driver Output Current
1050mA
Power Factor
0
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
