R768
- Checking stock...
Configure your R768

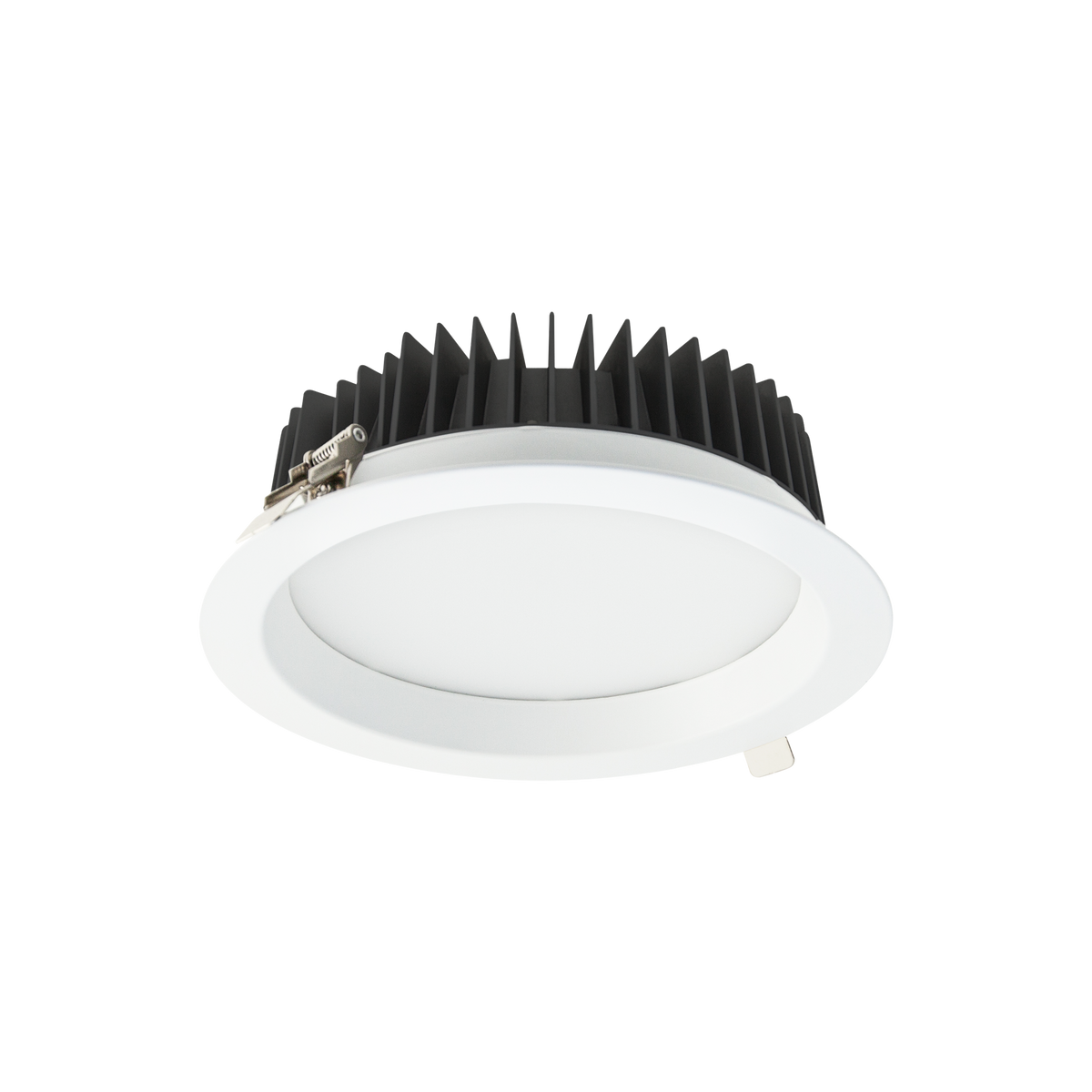

R768 W34 Retrofit XXL Select Downlight Kit White 3000K / 4000K
Lumens
Watts
3600lm (See spec sheet)
34W
Lumens
Watts
3600lm (See spec sheet)
34W
DCC700-D-40W 700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Watts
19.6W-40W
Specifications
R768 W34
Cut Out
195mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
34W
Lumens
3600lm (See spec sheet)
Beam Angle
100°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
225mm
Height
78mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
700mA
Driver
Included, Remote
Installation Note
Pre-wired with 2 pin plug and 800mm lead
Warranty
5 Year Warranty
Specifications
DCC700-D-40W
Watts
19.6W-40W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Installation Note
Must be installed above insulation
