R767
- Checking stock...
Configure your R767

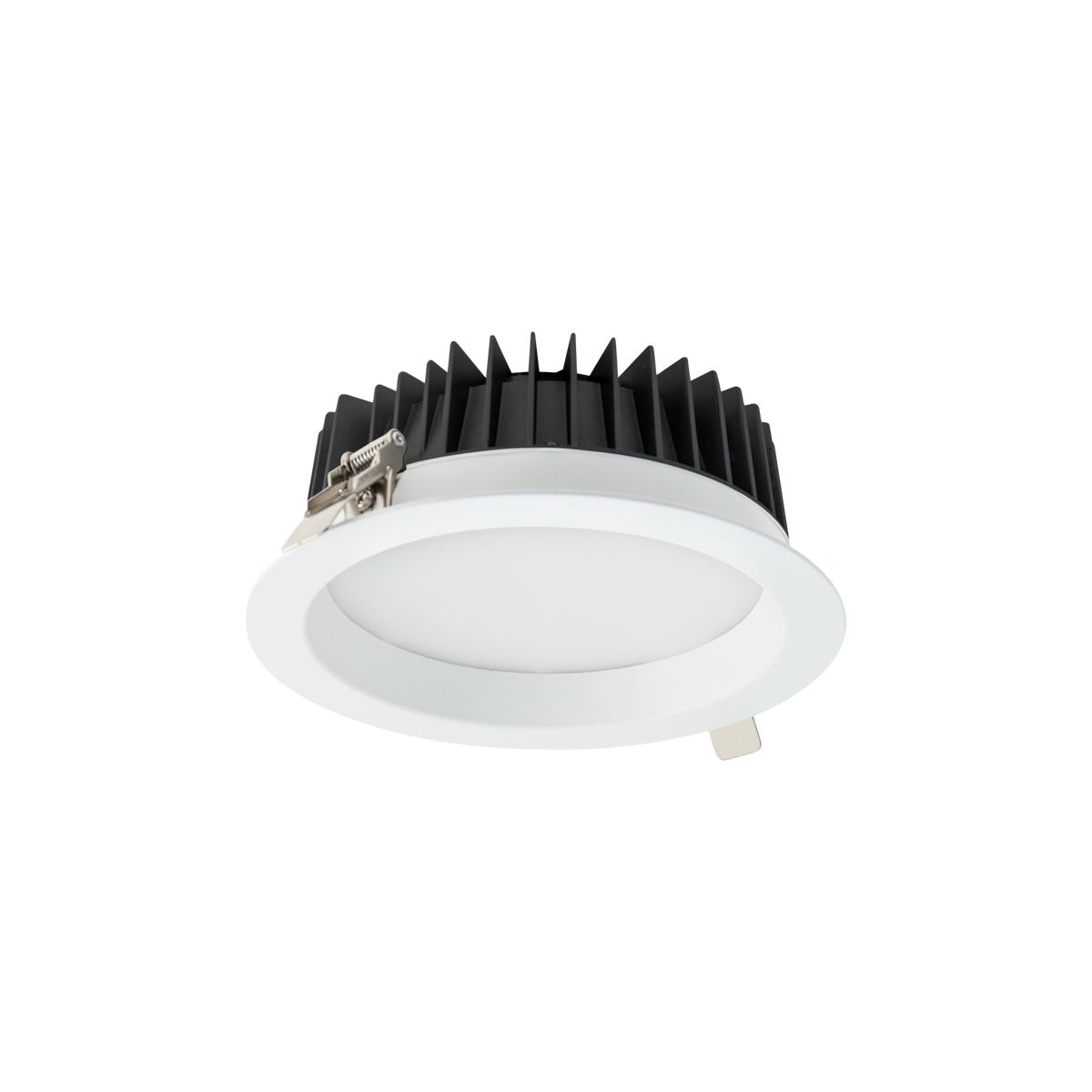

R767 W34 Retrofit XL Downlight Kit White 3000K / 4000K
Lumens
Watts
2000lm (See spec sheet)
21W
Lumens
Watts
2000lm (See spec sheet)
21W
DCC350-DX-28W 350mA 28W Dimmable Constant Current DX Series Driver
Watts
14W-28W
Watts
14W-28W
Specifications
R767 W34
Cut Out
170mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
21W
Lumens
2000lm (See spec sheet)
Beam Angle
100°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
195mm
Height
79mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC-F
Height Clearance to Building Elements
25mm
Side Clearance to Building Elements
25mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver
Included, Remote
Impact Rating
IK07
Installation Note
Pre-wired with 2 pin plug and 800mm lead
Warranty
5 Year Warranty
Specifications
DCC350-DX-28W
Watts
14W-28W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
24mm
Width
50mm
Length
142mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
